Datasheet IXRFD630 (IXYS) - 6
| Fabricante | IXYS |
| Descripción | 30 A Low-Side RF MOSFET Driver |
| Páginas / Página | 8 / 6 — IXRFD630 |
| Formato / tamaño de archivo | PDF / 262 Kb |
| Idioma del documento | Inglés |
IXRFD630
Línea de modelo para esta hoja de datos
Versión de texto del documento
30 A Low-Side RF MOSFET Driver
IXRFD630

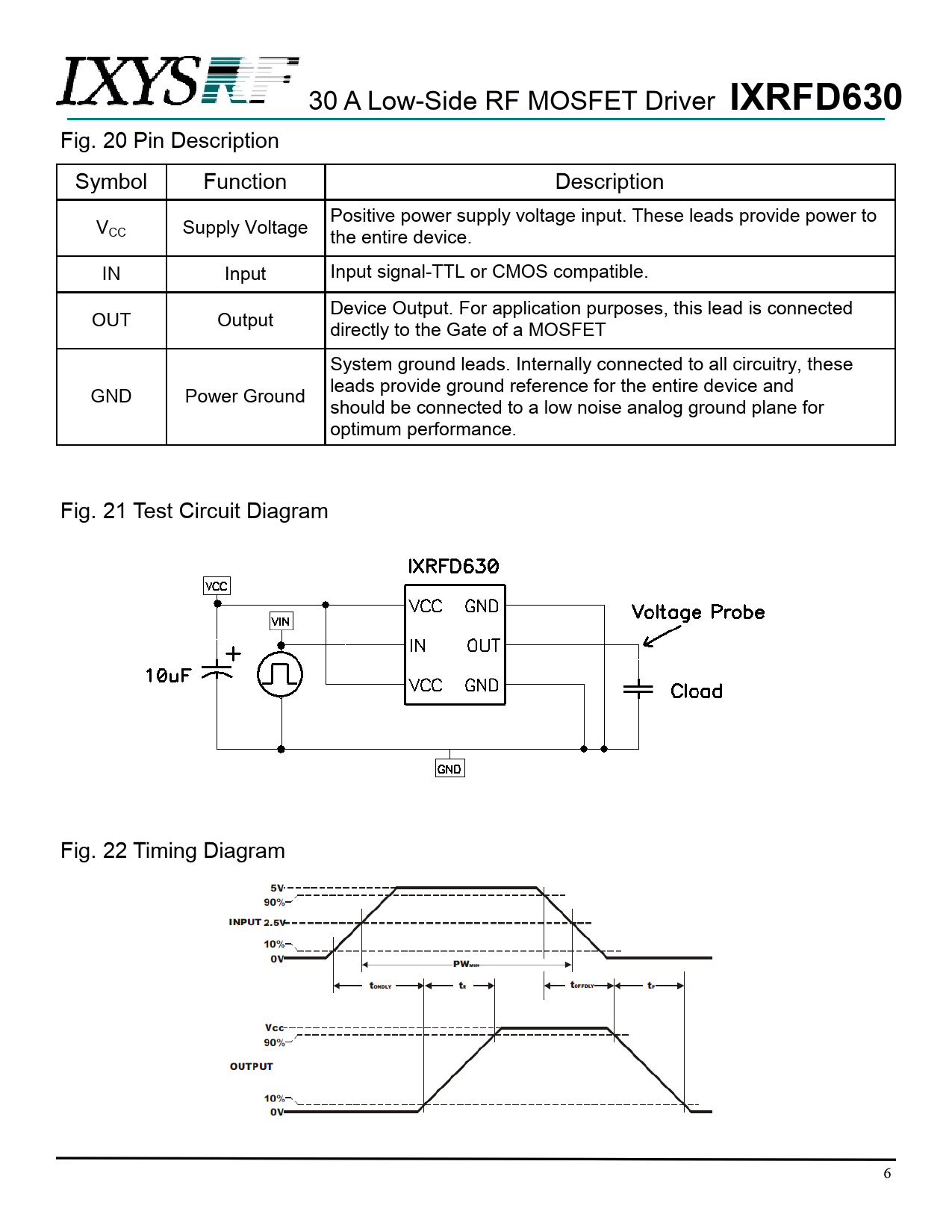

Fig. 20 Pin Description Symbol Function Description Positive power supply voltage input. These leads provide power to VCC Supply Voltage the entire device. IN Input Input signal-TTL or CMOS compatible. Device Output. For application purposes, this lead is connected OUT Output directly to the Gate of a MOSFET System ground leads. Internally connected to all circuitry, these leads provide ground reference for the entire device and GND Power Ground should be connected to a low noise analog ground plane for optimum performance. Fig. 21 Test Circuit Diagram Fig. 22 Timing Diagram 6
