PE4259. Table 5. Single-pin Control Logic Truth Table. Control Logic Input. Control Voltages. Signal Path

PE4259 Table 5 Single-pin Control Logic Truth Table Control Logic Input Control Voltages Signal Path

Línea de modelo para esta hoja de datos

Versión de texto del documento

PE4259
Product Specification

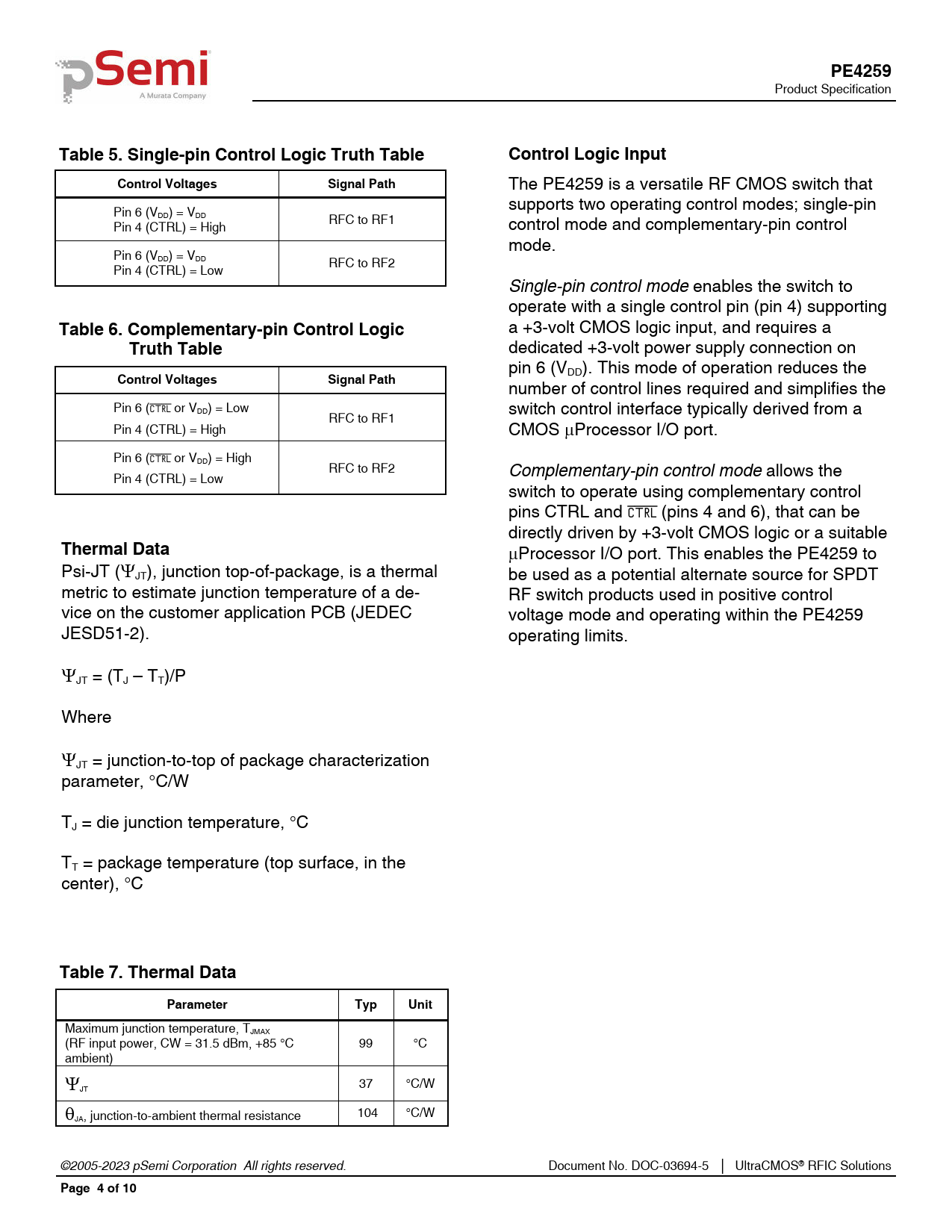

Table 5. Single-pin Control Logic Truth Table Control Logic Input Control Voltages Signal Path
The PE4259 is a versatile RF CMOS switch that supports two operating control modes; single-pin Pin 6 (VDD) = VDD RFC to RF1 Pin 4 (CTRL) = High control mode and complementary-pin control mode. Pin 6 (VDD) = VDD RFC to RF2 Pin 4 (CTRL) = Low Single-pin control mode enables the switch to operate with a single control pin (pin 4) supporting
Table 6. Complementary-pin Control Logic
a +3-volt CMOS logic input, and requires a
Truth Table
dedicated +3-volt power supply connection on pin 6 (VDD). This mode of operation reduces the
Control Voltages Signal Path
number of control lines required and simplifies the Pin 6 (CTRL or VDD) = Low switch control interface typically derived from a RFC to RF1 Pin 4 (CTRL) = High CMOS Processor I/O port. Pin 6 (CTRL or VDD) = High RFC to RF2 Complementary-pin control mode allows the Pin 4 (CTRL) = Low switch to operate using complementary control pins CTRL and CTRL (pins 4 and 6), that can be directly driven by +3-volt CMOS logic or a suitable
Thermal Data
Processor I/O port. This enables the PE4259 to Psi-JT (JT), junction top-of-package, is a thermal be used as a potential alternate source for SPDT metric to estimate junction temperature of a de- RF switch products used in positive control vice on the customer application PCB (JEDEC voltage mode and operating within the PE4259 JESD51-2). operating limits. JT = (TJ – TT)/P Where JT = junction-to-top of package characterization parameter, °C/W TJ = die junction temperature, °C TT = package temperature (top surface, in the center), °C
Table 7. Thermal Data Parameter Typ Unit
Maximum junction temperature, TJMAX (RF input power, CW = 31.5 dBm, +85 °C 99 °C ambient)   37 °C/W JT JA, junction-to-ambient thermal resistance 104 °C/W ©2005-2023 pSemi Corporation All rights reserved. Document No. DOC-03694-5 │ UltraCMOS® RFIC Solutions
