Precision, High-Side Current-Sense Amplifiers MAX471/MAX472

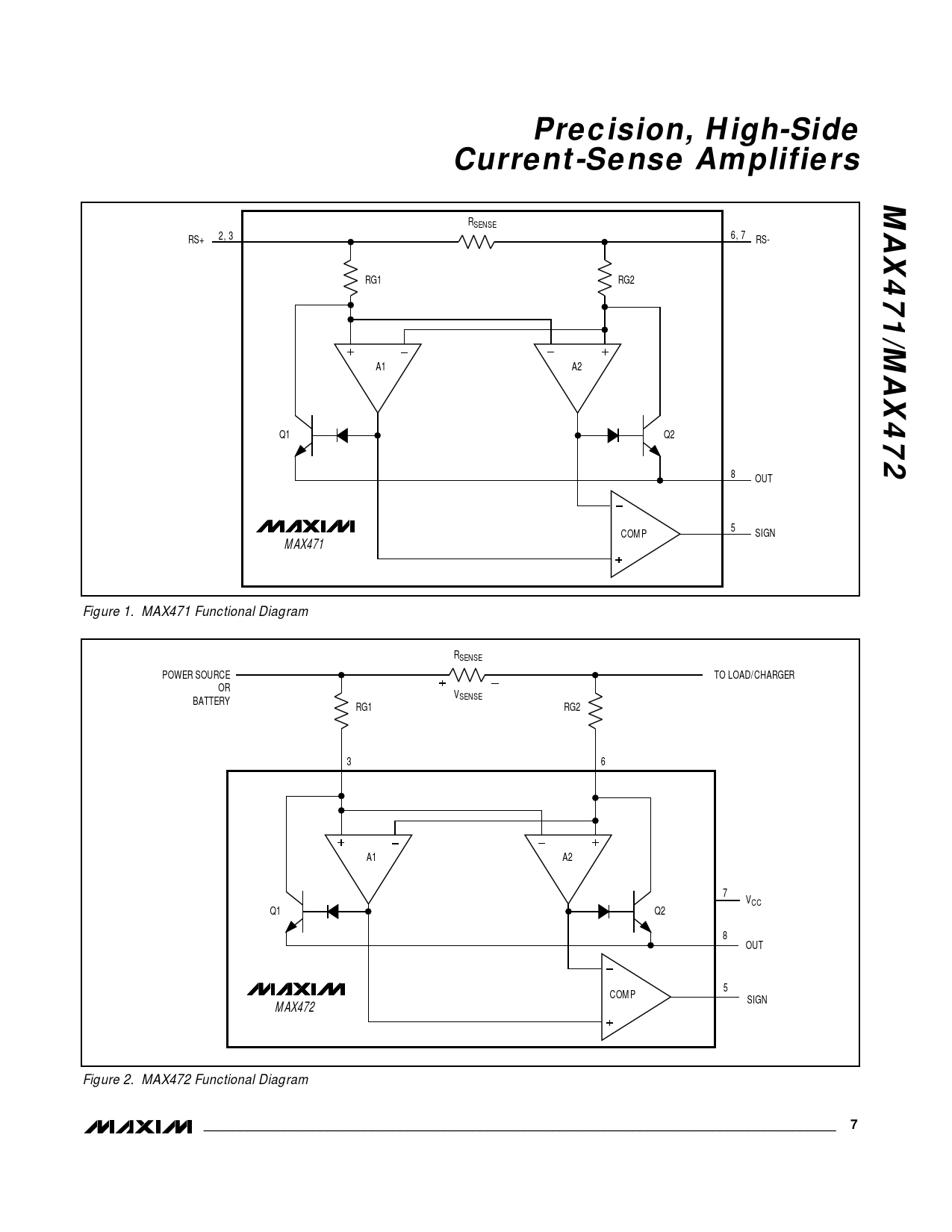

RSENSE 2, 3 6, 7 RS+ RS- RG1 RG2 A1 A2 Q1 Q2 8 OUT 5 COMP SIGN MAX471 Figure 1. MAX471 Functional Diagram RSENSE POWER SOURCE TO LOAD/CHARGER OR V BATTERY SENSE RG1 RG2 3 6 A1 A2 7 VCC Q1 Q2 8 OUT 5 COMP SIGN MAX472 Figure 2. MAX472 Functional Diagram
