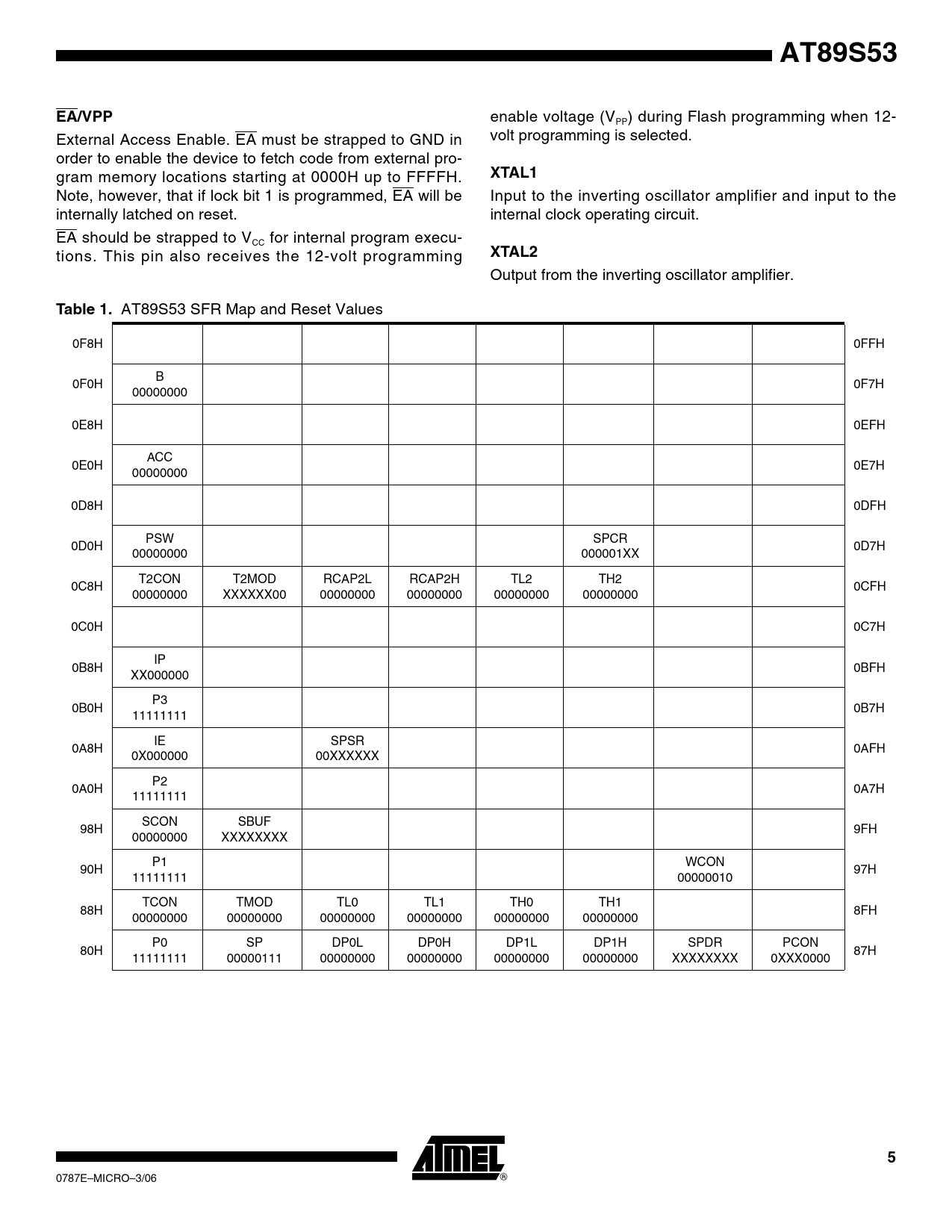

AT89S53. EA/VPP. XTAL1. XTAL2. Table 1

AT89S53 EA/VPP XTAL1 XTAL2 Table 1

Línea de modelo para esta hoja de datos

Versión de texto del documento

AT89S53 EA/VPP
enable voltage (V ) during Flash programming when 12- PP External Access Enable. EA must be strapped to GND in volt programming is selected. order to enable the device to fetch code from external pro- gram memory locations starting at 0000H up to FFFFH.
XTAL1
Note, however, that if lock bit 1 is programmed, EA will be Input to the inverting oscillator amplifier and input to the internally latched on reset. internal clock operating circuit. EA should be strapped to V for internal program execu- CC tions. This pin also receives the 12-volt programming
XTAL2
Output from the inverting oscillator amplifier.
Table 1.
AT89S53 SFR Map and Reset Values 0F8H 0FFH B 0F0H 0F7H 00000000 0E8H 0EFH ACC 0E0H 0E7H 00000000 0D8H 0DFH PSW SPCR 0D0H 0D7H 00000000 000001XX T2CON T2MOD RCAP2L RCAP2H TL2 TH2 0C8H 0CFH 00000000 XXXXXX00 00000000 00000000 00000000 00000000 0C0H 0C7H IP 0B8H 0BFH XX000000 P3 0B0H 0B7H 11111111 IE SPSR 0A8H 0AFH 0X000000 00XXXXXX P2 0A0H 0A7H 11111111 SCON SBUF 98H 9FH 00000000 XXXXXXXX P1 WCON 90H 97H 11111111 00000010 TCON TMOD TL0 TL1 TH0 TH1 88H 8FH 00000000 00000000 00000000 00000000 00000000 00000000 P0 SP DP0L DP0H DP1L DP1H SPDR PCON 80H 87H 11111111 00000111 00000000 00000000 00000000 00000000 XXXXXXXX 0XXX0000
5
