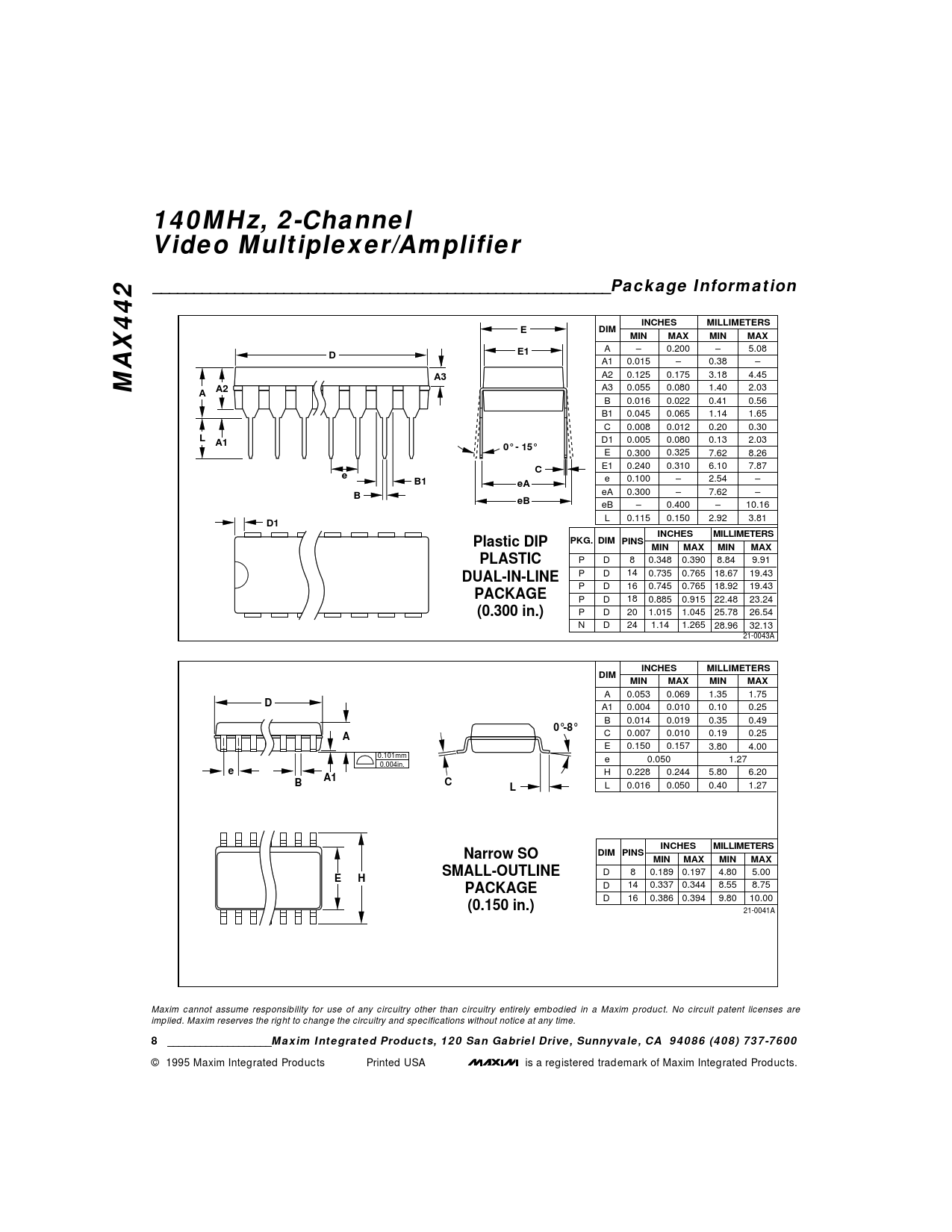

140MHz, 2-Channel Video Multiplexer/Amplifier ________________________________________________________Package Information INCHES MILLIMETERS E DIM MIN MAX MIN MAX
A – 0.200 – 5.08
E1 D
A1 0.015 – 0.38 –
MAX442
A2 0.125 0.175 3.18 4.45
A3
A3 0.055 0.080 1.40 2.03
A A2
B 0.016 0.022 0.41 0.56 B1 0.045 0.065 1.14 1.65 C 0.008 0.012 0.20 0.30
L
D1 0.005 0.080 0.13 2.03
A1 0° - 15°
E 0.300 0.325 7.62 8.26 E1 0.240 0.310 6.10 7.87
C e
e 0.100 – 2.54 –
B1 eA
eA 0.300 – 7.62 –
B eB
eB – 0.400 – 10.16 L 0.115 0.150 2.92 3.81
D1 INCHES MILLIMETERS Plastic DIP PKG. DIM PINS MIN MAX MIN MAX PLASTIC
P D 8 0.348 0.390 8.84 9.91
DUAL-IN-LINE
P D 14 0.735 0.765 18.67 19.43 P D 16 0.745 0.765 18.92 19.43
PACKAGE
P D 18 0.885 0.915 22.48 23.24
(0.300 in.)
P D 20 1.015 1.045 25.78 26.54 N D 24 1.14 1.265 28.96 32.13 21-0043A
INCHES MILLIMETERS DIM MIN MAX MIN MAX
A 0.053 0.069 1.35 1.75
D
A1 0.004 0.010 0.10 0.25 B 0.014 0.019 0.35 0.49
0°-8°
C 0.007 0.010 0.19 0.25
A
E 0.150 0.157 3.80 4.00 0.101mm e 0.050 1.27 0.004in.
e
H 0.228 0.244 5.80 6.20
A1 B C
L 0.016 0.050 0.40 1.27
L INCHES MILLIMETERS Narrow SO DIM PINS MIN MAX MIN MAX SMALL-OUTLINE
D 8 0.189 0.197 4.80 5.00
E H PACKAGE
D 14 0.337 0.344 8.55 8.75 D 16 0.386 0.394 9.80 10.00
(0.150 in.)
21-0041A Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
