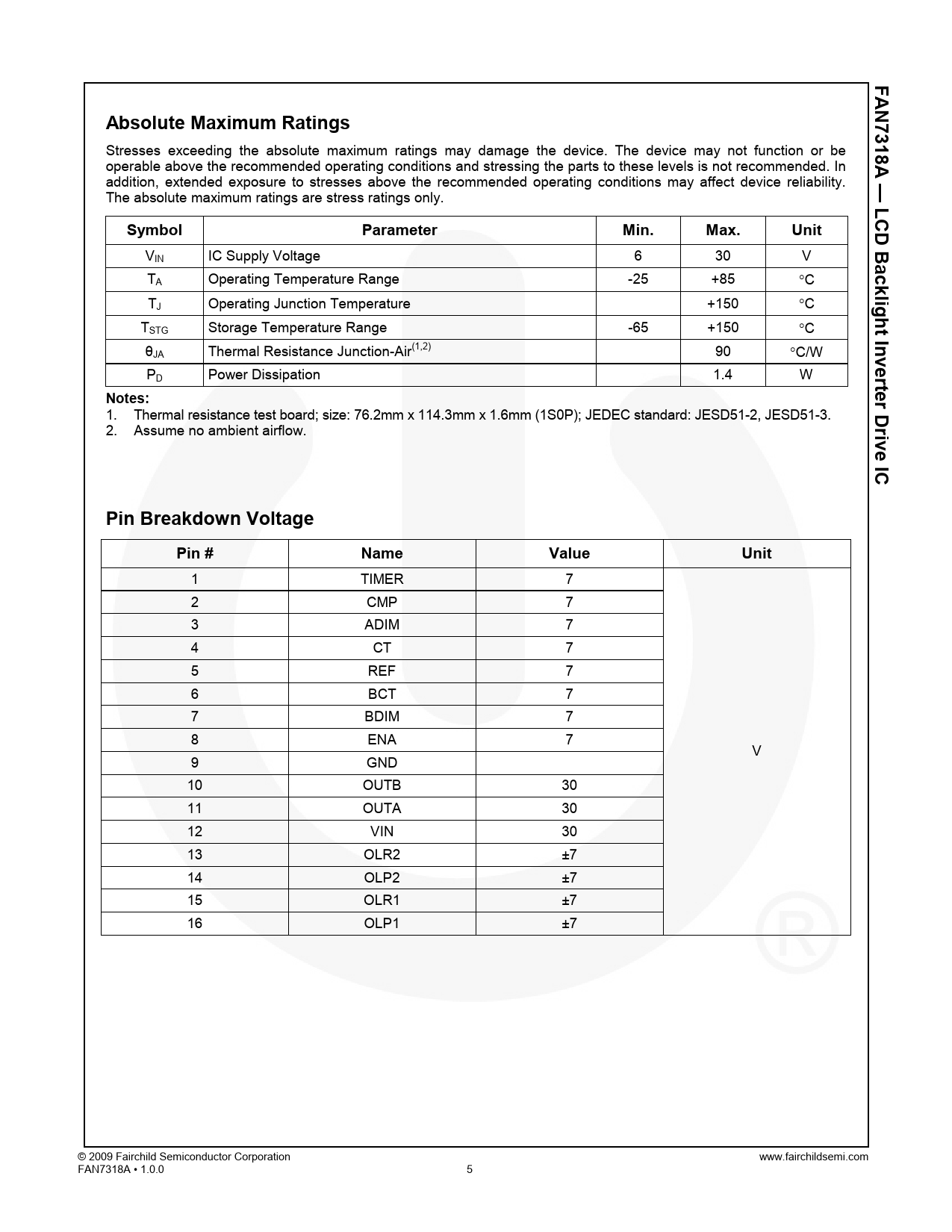

FA N 7318A Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In
— LC
addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.
Symbol Parameter Min. Max. D B Unit
VIN IC Supply Voltage 6 30 V
a cklight
TA Operating Temperature Range -25 +85 °C TJ Operating Junction Temperature +150 °C TSTG Storage Temperature Range -65 +150 °C
Invert
θJA Thermal Resistance Junction-Air(1,2) 90 °C/W PD Power Dissipation 1.4 W
e Notes: r D
1. Thermal resistance test board; size: 76.2mm x 114.3mm x 1.6mm (1S0P); JEDEC standard: JESD51-2, JESD51-3.
r
2. Assume no ambient airflow.
ive IC Pin Breakdown Voltage Pin # Name Value Unit
1 TIMER 7 2 CMP 7 3 ADIM 7 4 CT 7 5 REF 7 6 BCT 7 7 BDIM 7 8 ENA 7 V 9 GND 10 OUTB 30 11 OUTA 30 12 VIN 30 13 OLR2 ±7 14 OLP2 ±7 15 OLR1 ±7 16 OLP1 ±7 © 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com FAN7318A • 1.0.0 5
