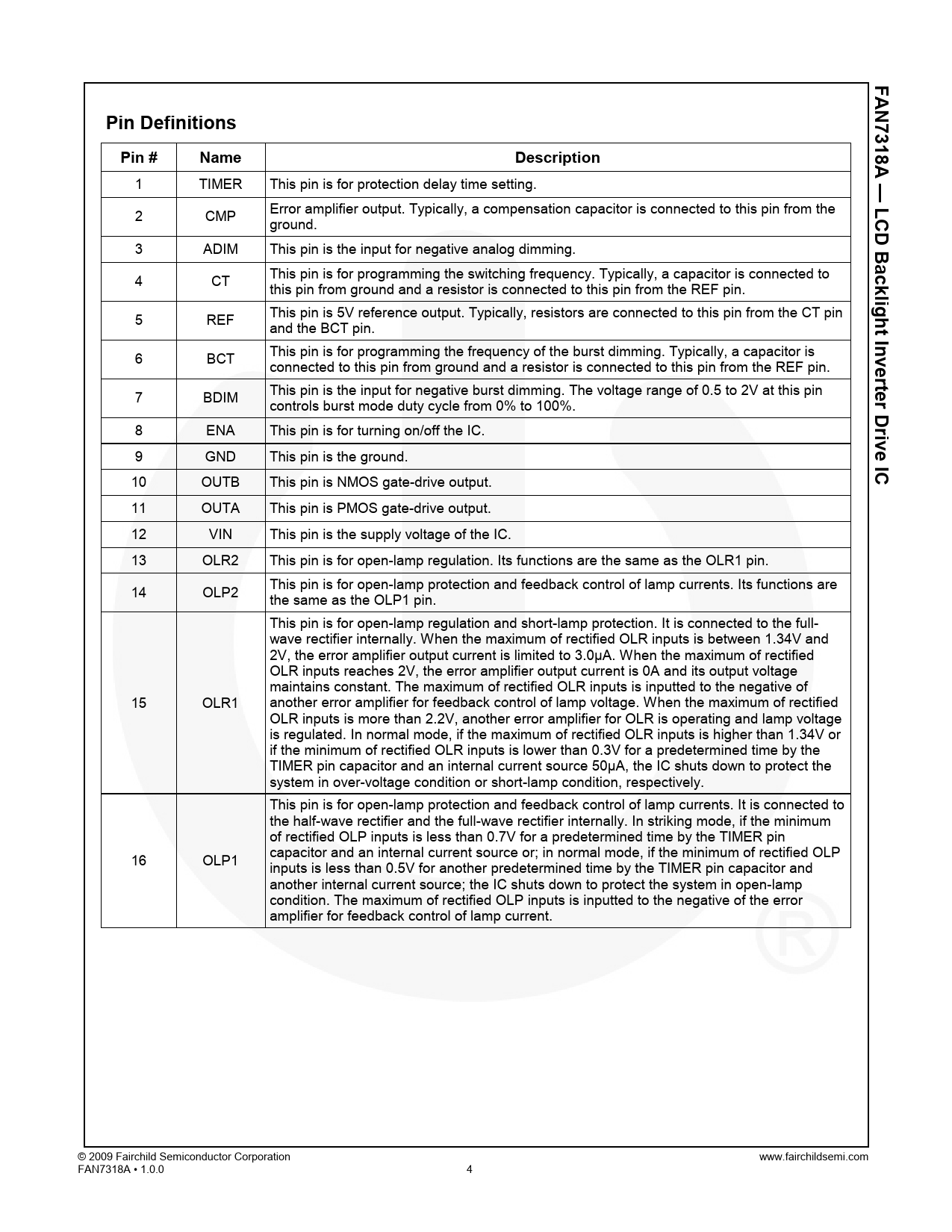

FA N 7318A Pin Definitions Pin # Name Description — LC
1 TIMER This pin is for protection delay time setting. Error amplifier output. Typically, a compensation capacitor is connected to this pin from the 2 CMP ground.
D B
3 ADIM This pin is the input for negative analog dimming.
a
This pin is for programming the switching frequency. Typically, a capacitor is connected to
cklight
4 CT this pin from ground and a resistor is connected to this pin from the REF pin. This pin is 5V reference output. Typically, resistors are connected to this pin from the CT pin 5 REF and the BCT pin.
Invert
This pin is for programming the frequency of the burst dimming. Typically, a capacitor is 6 BCT connected to this pin from ground and a resistor is connected to this pin from the REF pin. This pin is the input for negative burst dimming. The voltage range of 0.5 to 2V at this pin
e
7 BDIM
r D
controls burst mode duty cycle from 0% to 100%.
r
8 ENA This pin is for turning on/off the IC.
ive IC
