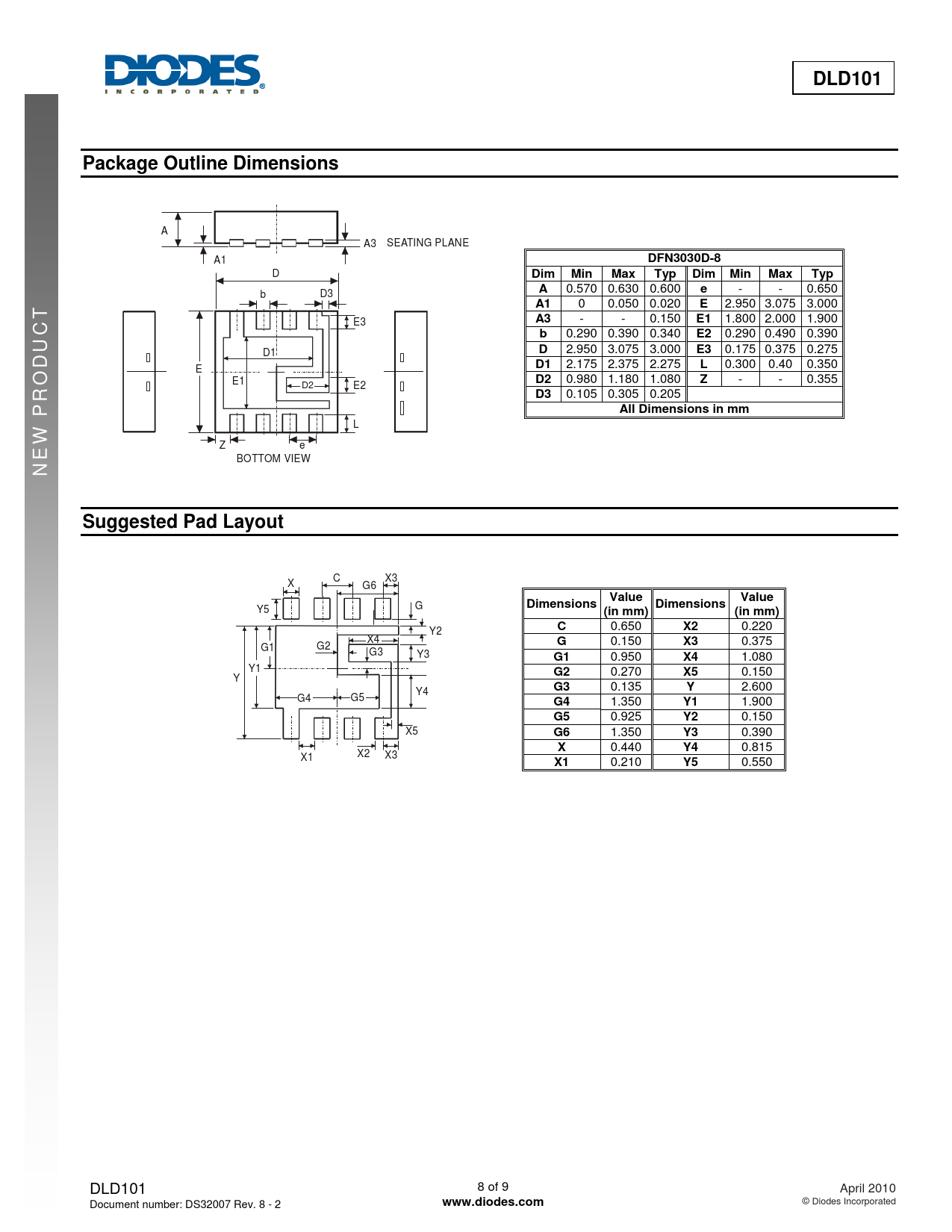

DLD101 Package Outline Dimensions
A A3 SEATING PLANE A1
DFN3030D-8
D
Dim Min Max Typ Dim Min Max Typ A
0.570 0.630 0.600
e
- - 0.650 b D3 T
A1
0 0.050 0.020
E
2.950 3.075 3.000
A3
- - 0.150
E1
1.800 2.000 1.900 E3 UC
b
0.290 0.390 0.340
E2
0.290 0.490 0.390
D
2.950 3.075 3.000
E3
0.175 0.375 0.275 D1
D1
2.175 2.375 2.275
L
0.300 0.40 0.350 E E1
D2
0.980 1.180 1.080
Z
- - 0.355 D2 E2
D3
0.105 0.305 0.205
All Dimensions in mm
L Z e NEW PROD BOTTOM VIEW
Suggested Pad Layout
C X3 X G6 Y5
Value Value
G
Dimensions Dimensions (in mm) (in mm) C
0.650
X2
0.220 Y2 X4 G1
G
0.150
X3
0.375 G2 G3 Y3
G1
0.950
X4
1.080 Y1
G2
0.270
X5
0.150 Y
G3
0.135
Y
2.600 Y4 G4 G5
G4
1.350
Y1
1.900
G5
0.925
Y2
0.150 X5
G6
1.350
Y3
0.390
X
0.440
Y4
0.815 X1 X2 X3
X1
0.210
Y5
0.550 DLD101 8 of 9 April 2010 Document number: DS32007 Rev. 8 - 2
