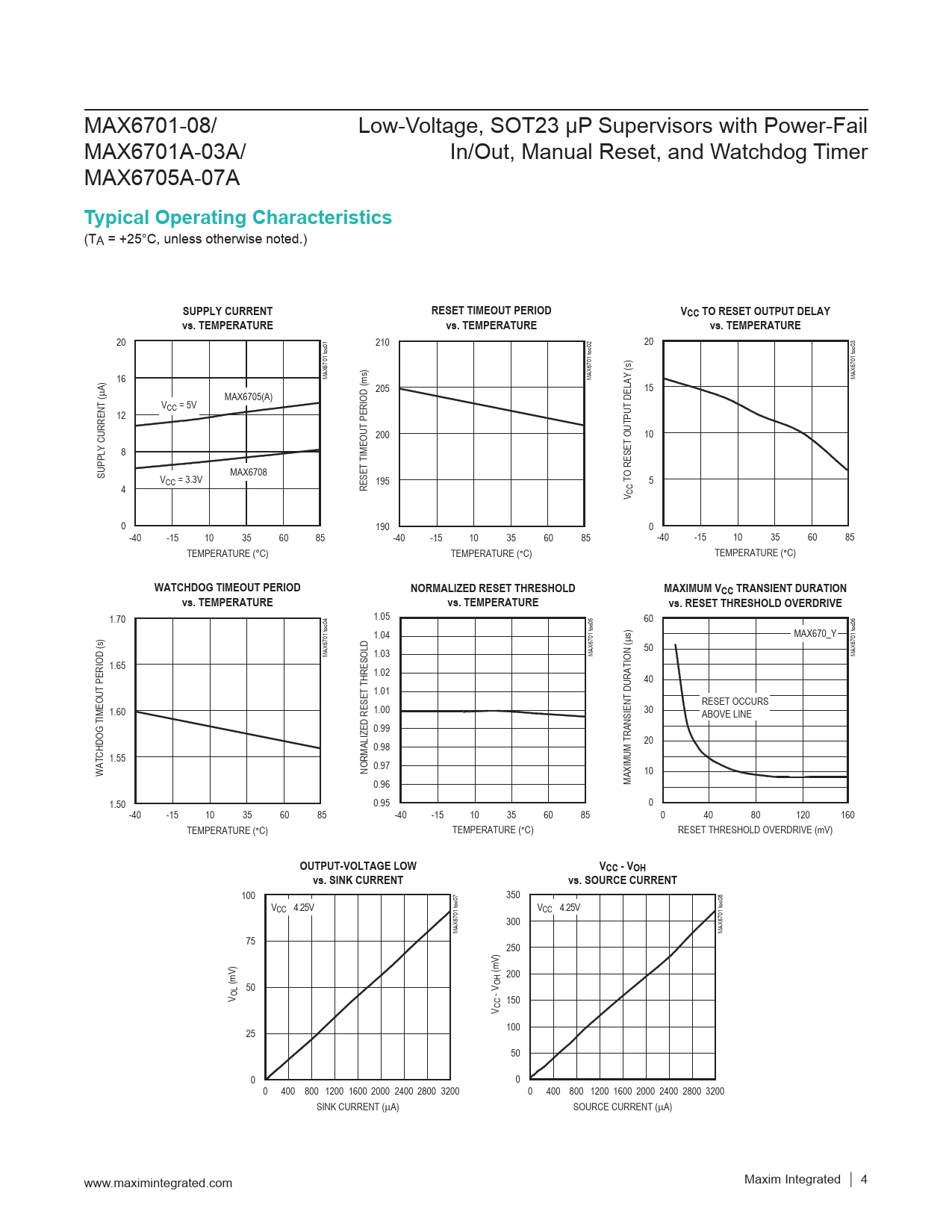

MAX6701-08/ Low-Voltage, SOT23 µP Supervisors with Power-Fail MAX6701A-03A/ In/Out, Manual Reset, and Watchdog Timer MAX6705A-07A
Typical Operating Characteristics
(TA = +25°C, unless otherwise noted.)
SUPPLY CURRENT RESET TIMEOUT PERIOD VCC TO RESET OUTPUT DELAY vs. TEMPERATURE vs. TEMPERATURE vs. TEMPERATURE
20 210 20 MAX6701 toc01 MAX6701 toc02 MAX6701 toc03 16 205 15 µA) MAX6705(A) VCC = 5V 12 200 10 8 SUPPLY CURRENT ( MAX6708 VCC = 3.3V 195 TO RESET OUTPUT DELAY (s) 5 4 RESET TIMEOUT PERIOD (ms) V CC 0 190 0 -40 -15 10 35 60 85 -40 -15 10 35 60 85 -40 -15 10 35 60 85 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C)
WATCHDOG TIMEOUT PERIOD NORMALIZED RESET THRESHOLD MAXIMUM VCC TRANSIENT DURATION vs. TEMPERATURE vs. TEMPERATURE vs. RESET THRESHOLD OVERDRIVE
1.05 1.70 60 1.04 µs) MAX670_Y 50 MAX6701 toc04 1.03 MAX6701 toc05 MAX6701 toc06 1.65 1.02 40 1.01 RESET OCCURS 1.60 1.00 30 ABOVE LINE 0.99 20 0.98 1.55 0.97 WATCHDOG TIMEOUT PERIOD (s) NORMALIZED RESET THRESOLD 10 MAXIMUM TRANSIENT DURATION ( 0.96 1.50 0.95 0 -40 -15 10 35 60 85 -40 -15 10 35 60 85 0 40 80 120 160 TEMPERATURE (°C) TEMPERATURE (°C) RESET THRESHOLD OVERDRIVE (mV)
OUTPUT-VOLTAGE LOW VCC - VOH vs. SINK CURRENT vs. SOURCE CURRENT
100 350 VCC 4.25V VCC 4.25V 300 MAX6701 toc07 MAX6701 toc08 75 250 (mV) 200 (mV) OH 50 - V V OL 150 V CC 100 25 50 0 0 0 400 800 1200 1600 2000 2400 2800 3200 0 400 800 1200 1600 2000 2400 2800 3200 SINK CURRENT (µA) SOURCE CURRENT (µA) www.maximintegrated.com Maxim Integrated │
