Single/Dual/Quad, Micropower, Single-Supply, Rail-to-Rail Op Amps. Test Circuits/Timing Diagrams. MAX4091/MAX4092/MAX4094
Línea de modelo para esta hoja de datos
Versión de texto del documento
Single/Dual/Quad, Micropower, Single-Supply, Rail-to-Rail Op Amps Test Circuits/Timing Diagrams

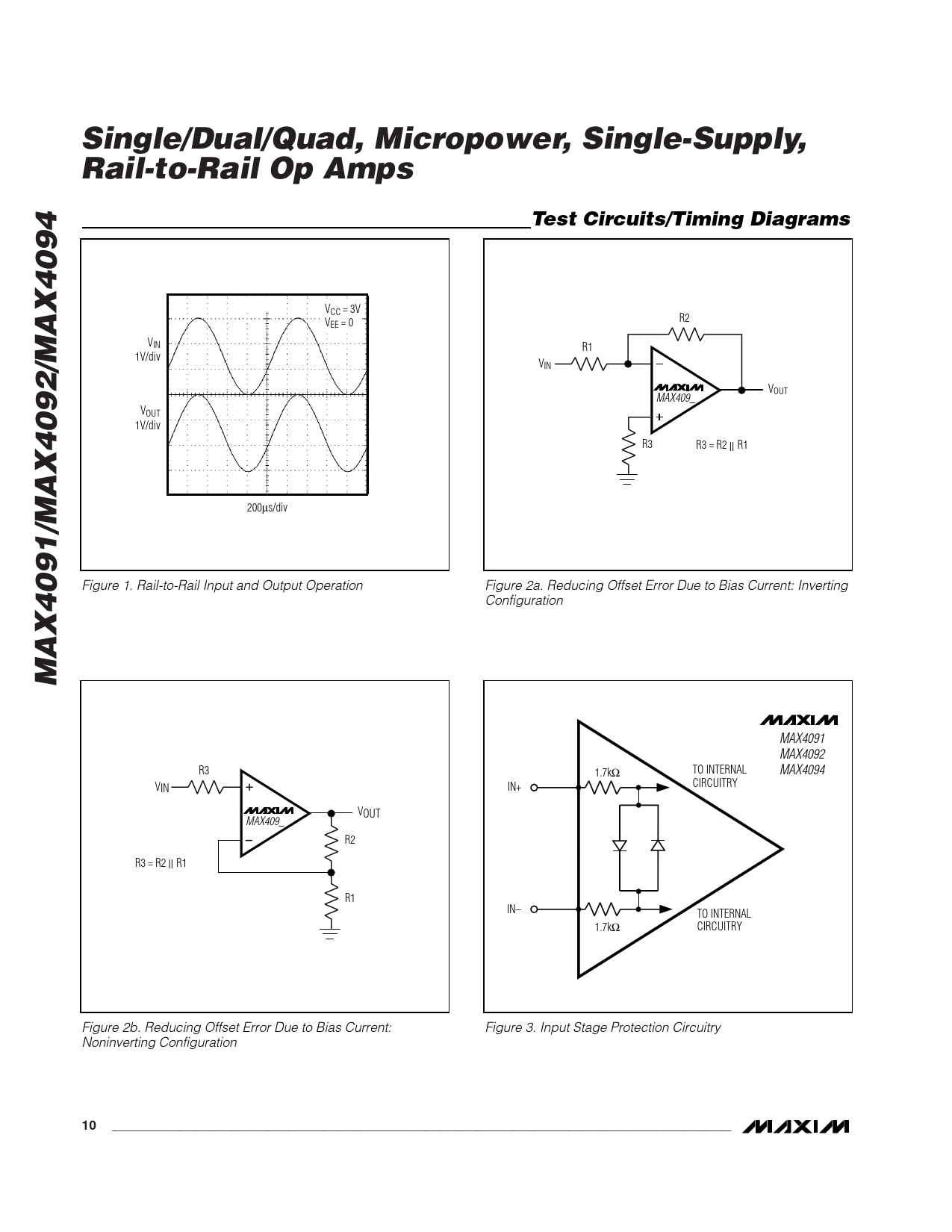

VCC = 3V V R2 EE = 0 VIN R1 1V/div VIN VOUT MAX409_ VOUT 1V/div R3 R3 = R2 II R1 200µs/div Figure 1. Rail-to-Rail Input and Output Operation Figure 2a. Reducing Offset Error Due to Bias Current: Inverting Configuration
MAX4091/MAX4092/MAX4094
MAX4091 MAX4092 R3 1.7kΩ TO INTERNAL MAX4094 V CIRCUITRY IN IN+ VOUT MAX409_ R2 R3 = R2 II R1 R1 IN– TO INTERNAL 1.7kΩ CIRCUITRY Figure 2b. Reducing Offset Error Due to Bias Current: Figure 3. Input Stage Protection Circuitry Noninverting Configuration
10 ______________________________________________________________________________________
