Datasheet NTCLE100E3 (Vishay) - 8
| Fabricante | Vishay |
| Descripción | NTC Thermistors, Radial Leaded, Standard Precision |
| Páginas / Página | 17 / 8 — NTCLE100E3. RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES WITH R. 25 AT … |
| Formato / tamaño de archivo | PDF / 226 Kb |
| Idioma del documento | Inglés |
NTCLE100E3. RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES WITH R. 25 AT (100, 150, 220, 330, 470, 680). PART NUMBER
Línea de modelo para esta hoja de datos
- NTCLE100E3 NTCLE100E3101GB0 NTCLE100E3101GB0A NTCLE100E3101HB0 NTCLE100E3101HB0A NTCLE100E3101JB0 NTCLE100E3101JB0A NTCLE100E3102GB0 NTCLE100E3102GB0A NTCLE100E3102HB0 NTCLE100E3102HB0A NTCLE100E3102JB0 NTCLE100E3102JB0A NTCLE100E3103GB0 NTCLE100E3103GB0A NTCLE100E3103HB0 NTCLE100E3103HB0A NTCLE100E3103JB0 NTCLE100E3103JB0A NTCLE100E3104GB0 NTCLE100E3104GB0A NTCLE100E3104HB0 NTCLE100E3104HB0A NTCLE100E3104JB0 NTCLE100E3104JB0A NTCLE100E3109GB0 NTCLE100E3109GB0A NTCLE100E3109HB0 NTCLE100E3109HB0A NTCLE100E3109JB0 NTCLE100E3109JB0A NTCLE100E3123GB0 NTCLE100E3123GB0A NTCLE100E3123HB0 NTCLE100E3123HB0A NTCLE100E3123JB0 NTCLE100E3123JB0A NTCLE100E3151GB0 NTCLE100E3151GB0A NTCLE100E3151HB0 NTCLE100E3151HB0A NTCLE100E3151JB0 NTCLE100E3151JB0A NTCLE100E3152GB0 NTCLE100E3152GB0A NTCLE100E3152HB0 NTCLE100E3152HB0A NTCLE100E3152JB0 NTCLE100E3152JB0A NTCLE100E3153GB0 NTCLE100E3153GB0A NTCLE100E3153HB0 NTCLE100E3153HB0A NTCLE100E3153JB0 NTCLE100E3153JB0A NTCLE100E3154GB0 NTCLE100E3154GB0A NTCLE100E3154HB0 NTCLE100E3154HB0A NTCLE100E3154JB0 NTCLE100E3154JB0A NTCLE100E3159GB0 NTCLE100E3159GB0A NTCLE100E3159HB0 NTCLE100E3159HB0A NTCLE100E3159JB0 NTCLE100E3159JB0A NTCLE100E3202GB0 NTCLE100E3202GB0A NTCLE100E3202HB0 NTCLE100E3202HB0A NTCLE100E3202JB0 NTCLE100E3202JB0A NTCLE100E3221GB0 NTCLE100E3221GB0A NTCLE100E3221HB0 NTCLE100E3221HB0A NTCLE100E3221JB0 NTCLE100E3221JB0A NTCLE100E3222GB0 NTCLE100E3222GB0A NTCLE100E3222HB0 NTCLE100E3222HB0A NTCLE100E3222JB0 NTCLE100E3222JB0A NTCLE100E3223GB0 NTCLE100E3223GB0A NTCLE100E3223HB0 NTCLE100E3223HB0A NTCLE100E3223JB0 NTCLE100E3223JB0A NTCLE100E3224GB0 NTCLE100E3224GB0A NTCLE100E3224HB0 NTCLE100E3224HB0A NTCLE100E3224JB0 NTCLE100E3224JB0A NTCLE100E3229GB0 NTCLE100E3229GB0A NTCLE100E3229HB0 NTCLE100E3229HB0A NTCLE100E3229JB0 NTCLE100E3229JB0A NTCLE100E3272GB0 NTCLE100E3272GB0A NTCLE100E3272HB0 NTCLE100E3272HB0A NTCLE100E3272JB0 NTCLE100E3272JB0A NTCLE100E3331GB0 NTCLE100E3331GB0A NTCLE100E3331HB0 NTCLE100E3331HB0A NTCLE100E3331JB0 NTCLE100E3331JB0A NTCLE100E3332GB0 NTCLE100E3332GB0A NTCLE100E3332HB0 NTCLE100E3332HB0A NTCLE100E3332JB0 NTCLE100E3332JB0A NTCLE100E3333GB0 NTCLE100E3333GB0A NTCLE100E3333HB0 NTCLE100E3333HB0A NTCLE100E3333JB0 NTCLE100E3333JB0A NTCLE100E3334GB0 NTCLE100E3334GB0A NTCLE100E3334HB0 NTCLE100E3334HB0A NTCLE100E3334JB0 NTCLE100E3334JB0A NTCLE100E3338GB0 NTCLE100E3338GB0A NTCLE100E3338HB0 NTCLE100E3338HB0A NTCLE100E3338JB0 NTCLE100E3338JB0A NTCLE100E3339GB0 NTCLE100E3339GB0A NTCLE100E3339HB0 NTCLE100E3339HB0A NTCLE100E3339JB0 NTCLE100E3339JB0A NTCLE100E3471GB0 NTCLE100E3471GB0A NTCLE100E3471HB0 NTCLE100E3471HB0A NTCLE100E3471JB0 NTCLE100E3471JB0A NTCLE100E3472GB0 NTCLE100E3472GB0A NTCLE100E3472HB0 NTCLE100E3472HB0A NTCLE100E3472JB0 NTCLE100E3472JB0A NTCLE100E3473GB0 NTCLE100E3473GB0A NTCLE100E3473HB0 NTCLE100E3473HB0A NTCLE100E3473JB0 NTCLE100E3473JB0A NTCLE100E3474GB0 NTCLE100E3474GB0A NTCLE100E3474HB0 NTCLE100E3474HB0A NTCLE100E3474JB0 NTCLE100E3474JB0A NTCLE100E3478GB0 NTCLE100E3478GB0A NTCLE100E3478HB0 NTCLE100E3478HB0A NTCLE100E3478JB0 NTCLE100E3478JB0A NTCLE100E3479GB0 NTCLE100E3479GB0A NTCLE100E3479HB0 NTCLE100E3479HB0A NTCLE100E3479JB0 NTCLE100E3479JB0A NTCLE100E3502GB0 NTCLE100E3502GB0A NTCLE100E3502HB0 NTCLE100E3502HB0A NTCLE100E3502JB0 NTCLE100E3502JB0A NTCLE100E3503GB0 NTCLE100E3503GB0A NTCLE100E3503HB0 NTCLE100E3503HB0A NTCLE100E3503JB0 NTCLE100E3503JB0A NTCLE100E3681GB0 NTCLE100E3681GB0A NTCLE100E3681HB0 NTCLE100E3681HB0A NTCLE100E3681JB0 NTCLE100E3681JB0A NTCLE100E3682GB0 NTCLE100E3682GB0A NTCLE100E3682HB0 NTCLE100E3682HB0A NTCLE100E3682JB0 NTCLE100E3682JB0A NTCLE100E3683GB0 NTCLE100E3683GB0A NTCLE100E3683HB0 NTCLE100E3683HB0A NTCLE100E3683JB0 NTCLE100E3683JB0A NTCLE100E3688GB0 NTCLE100E3688GB0A NTCLE100E3688HB0 NTCLE100E3688HB0A NTCLE100E3688JB0 NTCLE100E3688JB0A NTCLE100E3689GB0 NTCLE100E3689GB0A NTCLE100E3689HB0 NTCLE100E3689HB0A NTCLE100E3689JB0 NTCLE100E3689JB0A
Versión de texto del documento
NTCLE100E3
www.vishay.com Vishay BCcomponents For complete Curve Computation, visit: www.vishay.com/thermistors/ntc-curve-list/

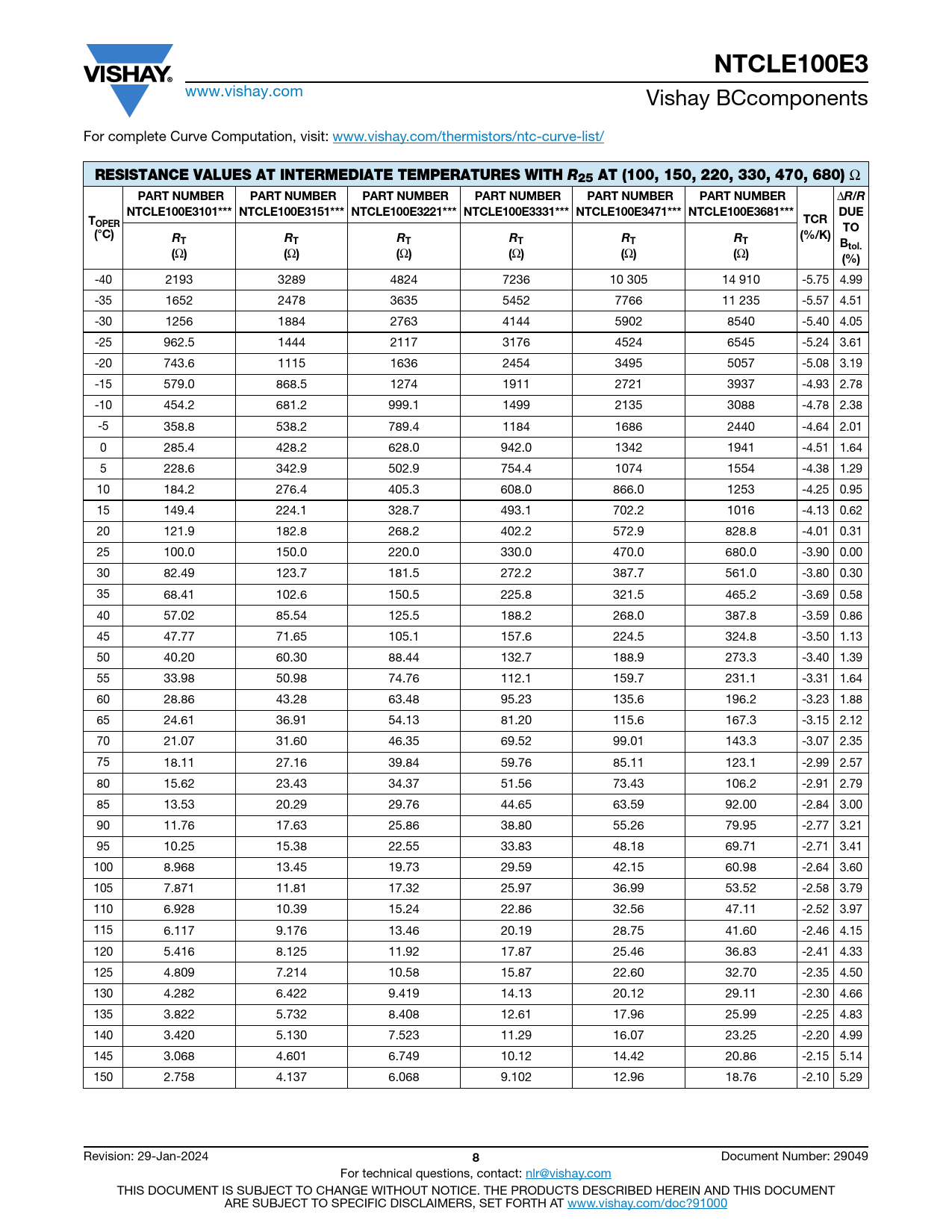

RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES WITH R 25 AT (100, 150, 220, 330, 470, 680)
Ω
PART NUMBER PART NUMBER PART NUMBER PART NUMBER PART NUMBER PART NUMBER
Δ
R /R NTCLE100E3101*** NTCLE100E3151*** NTCLE100E3221*** NTCLE100E3331*** NTCLE100E3471*** NTCLE100E3681*** DUE TOPER TCR TO (°C) (%/K) R T R T R T R T R T R T Btol. (
Ω
) (
Ω
) (
Ω
) (
Ω
) (
Ω
) (
Ω
) (%)
-40 2193 3289 4824 7236 10 305 14 910 -5.75 4.99 -35 1652 2478 3635 5452 7766 11 235 -5.57 4.51 -30 1256 1884 2763 4144 5902 8540 -5.40 4.05 -25 962.5 1444 2117 3176 4524 6545 -5.24 3.61 -20 743.6 1115 1636 2454 3495 5057 -5.08 3.19 -15 579.0 868.5 1274 1911 2721 3937 -4.93 2.78 -10 454.2 681.2 999.1 1499 2135 3088 -4.78 2.38 -5 358.8 538.2 789.4 1184 1686 2440 -4.64 2.01 0 285.4 428.2 628.0 942.0 1342 1941 -4.51 1.64 5 228.6 342.9 502.9 754.4 1074 1554 -4.38 1.29 10 184.2 276.4 405.3 608.0 866.0 1253 -4.25 0.95 15 149.4 224.1 328.7 493.1 702.2 1016 -4.13 0.62 20 121.9 182.8 268.2 402.2 572.9 828.8 -4.01 0.31 25 100.0 150.0 220.0 330.0 470.0 680.0 -3.90 0.00 30 82.49 123.7 181.5 272.2 387.7 561.0 -3.80 0.30 35 68.41 102.6 150.5 225.8 321.5 465.2 -3.69 0.58 40 57.02 85.54 125.5 188.2 268.0 387.8 -3.59 0.86 45 47.77 71.65 105.1 157.6 224.5 324.8 -3.50 1.13 50 40.20 60.30 88.44 132.7 188.9 273.3 -3.40 1.39 55 33.98 50.98 74.76 112.1 159.7 231.1 -3.31 1.64 60 28.86 43.28 63.48 95.23 135.6 196.2 -3.23 1.88 65 24.61 36.91 54.13 81.20 115.6 167.3 -3.15 2.12 70 21.07 31.60 46.35 69.52 99.01 143.3 -3.07 2.35 75 18.11 27.16 39.84 59.76 85.11 123.1 -2.99 2.57 80 15.62 23.43 34.37 51.56 73.43 106.2 -2.91 2.79 85 13.53 20.29 29.76 44.65 63.59 92.00 -2.84 3.00 90 11.76 17.63 25.86 38.80 55.26 79.95 -2.77 3.21 95 10.25 15.38 22.55 33.83 48.18 69.71 -2.71 3.41 100 8.968 13.45 19.73 29.59 42.15 60.98 -2.64 3.60 105 7.871 11.81 17.32 25.97 36.99 53.52 -2.58 3.79 110 6.928 10.39 15.24 22.86 32.56 47.11 -2.52 3.97 115 6.117 9.176 13.46 20.19 28.75 41.60 -2.46 4.15 120 5.416 8.125 11.92 17.87 25.46 36.83 -2.41 4.33 125 4.809 7.214 10.58 15.87 22.60 32.70 -2.35 4.50 130 4.282 6.422 9.419 14.13 20.12 29.11 -2.30 4.66 135 3.822 5.732 8.408 12.61 17.96 25.99 -2.25 4.83 140 3.420 5.130 7.523 11.29 16.07 23.25 -2.20 4.99 145 3.068 4.601 6.749 10.12 14.42 20.86 -2.15 5.14 150 2.758 4.137 6.068 9.102 12.96 18.76 -2.10 5.29 Revision: 29-Jan-2024
8
Document Number: 29049 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay BCcomponents For complete Curve Computation, visit: www.vishay.com/thermistors/ntc-curve-list/
RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES WITH R 25 AT (100, 150, 220, 330, 470, 680)
Ω
PART NUMBER PART NUMBER PART NUMBER PART NUMBER PART NUMBER PART NUMBER
Δ
R /R NTCLE100E3101*** NTCLE100E3151*** NTCLE100E3221*** NTCLE100E3331*** NTCLE100E3471*** NTCLE100E3681*** DUE TOPER TCR TO (°C) (%/K) R T R T R T R T R T R T Btol. (
Ω
) (
Ω
) (
Ω
) (
Ω
) (
Ω
) (
Ω
) (%)
-40 2193 3289 4824 7236 10 305 14 910 -5.75 4.99 -35 1652 2478 3635 5452 7766 11 235 -5.57 4.51 -30 1256 1884 2763 4144 5902 8540 -5.40 4.05 -25 962.5 1444 2117 3176 4524 6545 -5.24 3.61 -20 743.6 1115 1636 2454 3495 5057 -5.08 3.19 -15 579.0 868.5 1274 1911 2721 3937 -4.93 2.78 -10 454.2 681.2 999.1 1499 2135 3088 -4.78 2.38 -5 358.8 538.2 789.4 1184 1686 2440 -4.64 2.01 0 285.4 428.2 628.0 942.0 1342 1941 -4.51 1.64 5 228.6 342.9 502.9 754.4 1074 1554 -4.38 1.29 10 184.2 276.4 405.3 608.0 866.0 1253 -4.25 0.95 15 149.4 224.1 328.7 493.1 702.2 1016 -4.13 0.62 20 121.9 182.8 268.2 402.2 572.9 828.8 -4.01 0.31 25 100.0 150.0 220.0 330.0 470.0 680.0 -3.90 0.00 30 82.49 123.7 181.5 272.2 387.7 561.0 -3.80 0.30 35 68.41 102.6 150.5 225.8 321.5 465.2 -3.69 0.58 40 57.02 85.54 125.5 188.2 268.0 387.8 -3.59 0.86 45 47.77 71.65 105.1 157.6 224.5 324.8 -3.50 1.13 50 40.20 60.30 88.44 132.7 188.9 273.3 -3.40 1.39 55 33.98 50.98 74.76 112.1 159.7 231.1 -3.31 1.64 60 28.86 43.28 63.48 95.23 135.6 196.2 -3.23 1.88 65 24.61 36.91 54.13 81.20 115.6 167.3 -3.15 2.12 70 21.07 31.60 46.35 69.52 99.01 143.3 -3.07 2.35 75 18.11 27.16 39.84 59.76 85.11 123.1 -2.99 2.57 80 15.62 23.43 34.37 51.56 73.43 106.2 -2.91 2.79 85 13.53 20.29 29.76 44.65 63.59 92.00 -2.84 3.00 90 11.76 17.63 25.86 38.80 55.26 79.95 -2.77 3.21 95 10.25 15.38 22.55 33.83 48.18 69.71 -2.71 3.41 100 8.968 13.45 19.73 29.59 42.15 60.98 -2.64 3.60 105 7.871 11.81 17.32 25.97 36.99 53.52 -2.58 3.79 110 6.928 10.39 15.24 22.86 32.56 47.11 -2.52 3.97 115 6.117 9.176 13.46 20.19 28.75 41.60 -2.46 4.15 120 5.416 8.125 11.92 17.87 25.46 36.83 -2.41 4.33 125 4.809 7.214 10.58 15.87 22.60 32.70 -2.35 4.50 130 4.282 6.422 9.419 14.13 20.12 29.11 -2.30 4.66 135 3.822 5.732 8.408 12.61 17.96 25.99 -2.25 4.83 140 3.420 5.130 7.523 11.29 16.07 23.25 -2.20 4.99 145 3.068 4.601 6.749 10.12 14.42 20.86 -2.15 5.14 150 2.758 4.137 6.068 9.102 12.96 18.76 -2.10 5.29 Revision: 29-Jan-2024
8
Document Number: 29049 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
