Datasheet NTCLE100E3 (Vishay) - 2
| Fabricante | Vishay |
| Descripción | NTC Thermistors, Radial Leaded, Standard Precision |
| Páginas / Página | 17 / 2 — NTCLE100E3. ELECTRICAL DATA AND ORDERING INFORMATION. SAP MATERIAL AND … |
| Formato / tamaño de archivo | PDF / 226 Kb |
| Idioma del documento | Inglés |
NTCLE100E3. ELECTRICAL DATA AND ORDERING INFORMATION. SAP MATERIAL AND ORDERING NUMBER (1). 25-TOL. B25/85. B25/85-TOL. RECOG
Línea de modelo para esta hoja de datos
- NTCLE100E3 NTCLE100E3101GB0 NTCLE100E3101GB0A NTCLE100E3101HB0 NTCLE100E3101HB0A NTCLE100E3101JB0 NTCLE100E3101JB0A NTCLE100E3102GB0 NTCLE100E3102GB0A NTCLE100E3102HB0 NTCLE100E3102HB0A NTCLE100E3102JB0 NTCLE100E3102JB0A NTCLE100E3103GB0 NTCLE100E3103GB0A NTCLE100E3103HB0 NTCLE100E3103HB0A NTCLE100E3103JB0 NTCLE100E3103JB0A NTCLE100E3104GB0 NTCLE100E3104GB0A NTCLE100E3104HB0 NTCLE100E3104HB0A NTCLE100E3104JB0 NTCLE100E3104JB0A NTCLE100E3109GB0 NTCLE100E3109GB0A NTCLE100E3109HB0 NTCLE100E3109HB0A NTCLE100E3109JB0 NTCLE100E3109JB0A NTCLE100E3123GB0 NTCLE100E3123GB0A NTCLE100E3123HB0 NTCLE100E3123HB0A NTCLE100E3123JB0 NTCLE100E3123JB0A NTCLE100E3151GB0 NTCLE100E3151GB0A NTCLE100E3151HB0 NTCLE100E3151HB0A NTCLE100E3151JB0 NTCLE100E3151JB0A NTCLE100E3152GB0 NTCLE100E3152GB0A NTCLE100E3152HB0 NTCLE100E3152HB0A NTCLE100E3152JB0 NTCLE100E3152JB0A NTCLE100E3153GB0 NTCLE100E3153GB0A NTCLE100E3153HB0 NTCLE100E3153HB0A NTCLE100E3153JB0 NTCLE100E3153JB0A NTCLE100E3154GB0 NTCLE100E3154GB0A NTCLE100E3154HB0 NTCLE100E3154HB0A NTCLE100E3154JB0 NTCLE100E3154JB0A NTCLE100E3159GB0 NTCLE100E3159GB0A NTCLE100E3159HB0 NTCLE100E3159HB0A NTCLE100E3159JB0 NTCLE100E3159JB0A NTCLE100E3202GB0 NTCLE100E3202GB0A NTCLE100E3202HB0 NTCLE100E3202HB0A NTCLE100E3202JB0 NTCLE100E3202JB0A NTCLE100E3221GB0 NTCLE100E3221GB0A NTCLE100E3221HB0 NTCLE100E3221HB0A NTCLE100E3221JB0 NTCLE100E3221JB0A NTCLE100E3222GB0 NTCLE100E3222GB0A NTCLE100E3222HB0 NTCLE100E3222HB0A NTCLE100E3222JB0 NTCLE100E3222JB0A NTCLE100E3223GB0 NTCLE100E3223GB0A NTCLE100E3223HB0 NTCLE100E3223HB0A NTCLE100E3223JB0 NTCLE100E3223JB0A NTCLE100E3224GB0 NTCLE100E3224GB0A NTCLE100E3224HB0 NTCLE100E3224HB0A NTCLE100E3224JB0 NTCLE100E3224JB0A NTCLE100E3229GB0 NTCLE100E3229GB0A NTCLE100E3229HB0 NTCLE100E3229HB0A NTCLE100E3229JB0 NTCLE100E3229JB0A NTCLE100E3272GB0 NTCLE100E3272GB0A NTCLE100E3272HB0 NTCLE100E3272HB0A NTCLE100E3272JB0 NTCLE100E3272JB0A NTCLE100E3331GB0 NTCLE100E3331GB0A NTCLE100E3331HB0 NTCLE100E3331HB0A NTCLE100E3331JB0 NTCLE100E3331JB0A NTCLE100E3332GB0 NTCLE100E3332GB0A NTCLE100E3332HB0 NTCLE100E3332HB0A NTCLE100E3332JB0 NTCLE100E3332JB0A NTCLE100E3333GB0 NTCLE100E3333GB0A NTCLE100E3333HB0 NTCLE100E3333HB0A NTCLE100E3333JB0 NTCLE100E3333JB0A NTCLE100E3334GB0 NTCLE100E3334GB0A NTCLE100E3334HB0 NTCLE100E3334HB0A NTCLE100E3334JB0 NTCLE100E3334JB0A NTCLE100E3338GB0 NTCLE100E3338GB0A NTCLE100E3338HB0 NTCLE100E3338HB0A NTCLE100E3338JB0 NTCLE100E3338JB0A NTCLE100E3339GB0 NTCLE100E3339GB0A NTCLE100E3339HB0 NTCLE100E3339HB0A NTCLE100E3339JB0 NTCLE100E3339JB0A NTCLE100E3471GB0 NTCLE100E3471GB0A NTCLE100E3471HB0 NTCLE100E3471HB0A NTCLE100E3471JB0 NTCLE100E3471JB0A NTCLE100E3472GB0 NTCLE100E3472GB0A NTCLE100E3472HB0 NTCLE100E3472HB0A NTCLE100E3472JB0 NTCLE100E3472JB0A NTCLE100E3473GB0 NTCLE100E3473GB0A NTCLE100E3473HB0 NTCLE100E3473HB0A NTCLE100E3473JB0 NTCLE100E3473JB0A NTCLE100E3474GB0 NTCLE100E3474GB0A NTCLE100E3474HB0 NTCLE100E3474HB0A NTCLE100E3474JB0 NTCLE100E3474JB0A NTCLE100E3478GB0 NTCLE100E3478GB0A NTCLE100E3478HB0 NTCLE100E3478HB0A NTCLE100E3478JB0 NTCLE100E3478JB0A NTCLE100E3479GB0 NTCLE100E3479GB0A NTCLE100E3479HB0 NTCLE100E3479HB0A NTCLE100E3479JB0 NTCLE100E3479JB0A NTCLE100E3502GB0 NTCLE100E3502GB0A NTCLE100E3502HB0 NTCLE100E3502HB0A NTCLE100E3502JB0 NTCLE100E3502JB0A NTCLE100E3503GB0 NTCLE100E3503GB0A NTCLE100E3503HB0 NTCLE100E3503HB0A NTCLE100E3503JB0 NTCLE100E3503JB0A NTCLE100E3681GB0 NTCLE100E3681GB0A NTCLE100E3681HB0 NTCLE100E3681HB0A NTCLE100E3681JB0 NTCLE100E3681JB0A NTCLE100E3682GB0 NTCLE100E3682GB0A NTCLE100E3682HB0 NTCLE100E3682HB0A NTCLE100E3682JB0 NTCLE100E3682JB0A NTCLE100E3683GB0 NTCLE100E3683GB0A NTCLE100E3683HB0 NTCLE100E3683HB0A NTCLE100E3683JB0 NTCLE100E3683JB0A NTCLE100E3688GB0 NTCLE100E3688GB0A NTCLE100E3688HB0 NTCLE100E3688HB0A NTCLE100E3688JB0 NTCLE100E3688JB0A NTCLE100E3689GB0 NTCLE100E3689GB0A NTCLE100E3689HB0 NTCLE100E3689HB0A NTCLE100E3689JB0 NTCLE100E3689JB0A
Versión de texto del documento

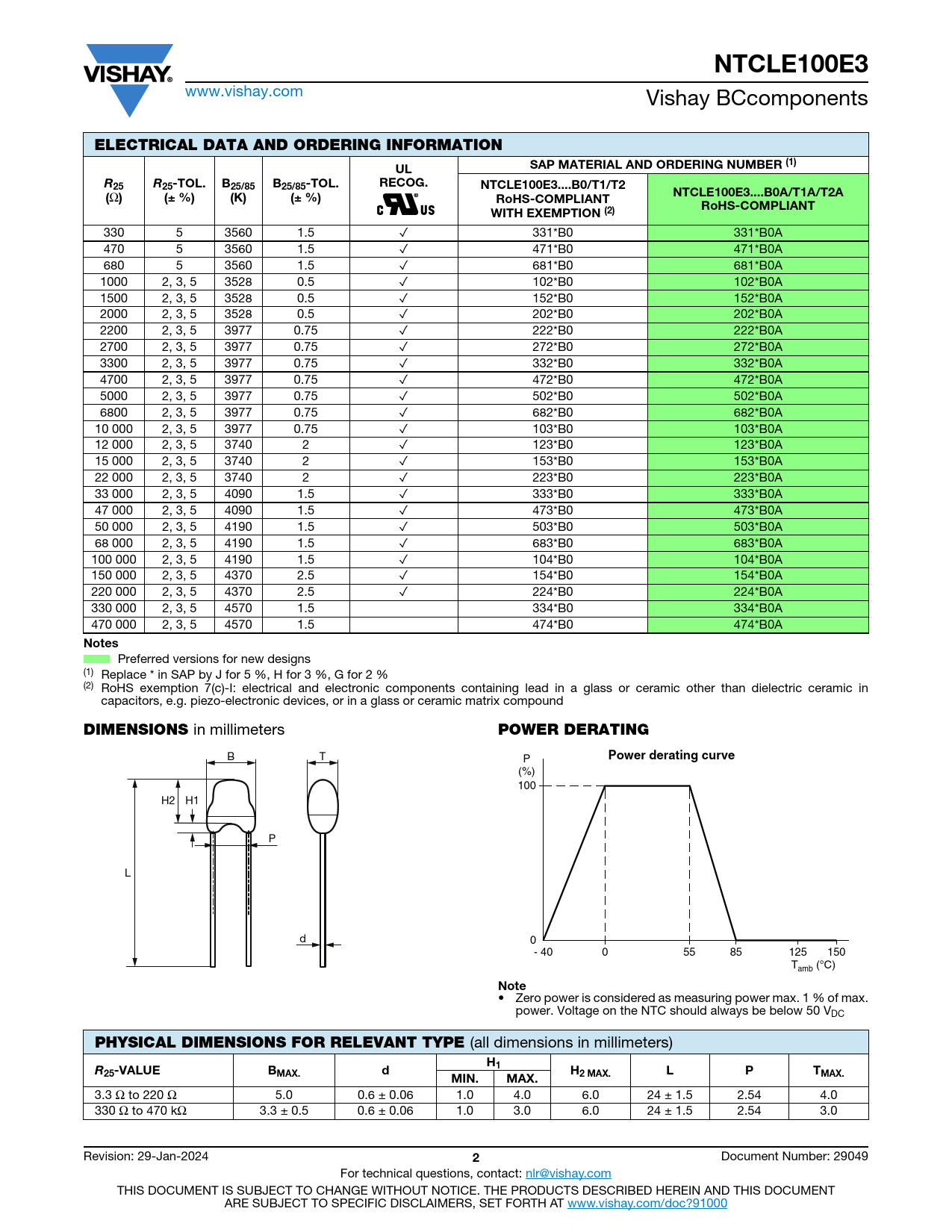

NTCLE100E3
www.vishay.com Vishay BCcomponents
ELECTRICAL DATA AND ORDERING INFORMATION UL SAP MATERIAL AND ORDERING NUMBER (1) R 25 R 25-TOL. B25/85 B25/85-TOL. RECOG. NTCLE100E3..B0/T1/T2 (
Ω
) (± %) (K) (± %) NTCLE100E3..B0A/T1A/T2A RoHS-COMPLIANT RoHS-COMPLIANT WITH EXEMPTION (2)
330 5 3560 1.5 ✓ 331*B0 331*B0A 470 5 3560 1.5 ✓ 471*B0 471*B0A 680 5 3560 1.5 ✓ 681*B0 681*B0A 1000 2, 3, 5 3528 0.5 ✓ 102*B0 102*B0A 1500 2, 3, 5 3528 0.5 ✓ 152*B0 152*B0A 2000 2, 3, 5 3528 0.5 ✓ 202*B0 202*B0A 2200 2, 3, 5 3977 0.75 ✓ 222*B0 222*B0A 2700 2, 3, 5 3977 0.75 ✓ 272*B0 272*B0A 3300 2, 3, 5 3977 0.75 ✓ 332*B0 332*B0A 4700 2, 3, 5 3977 0.75 ✓ 472*B0 472*B0A 5000 2, 3, 5 3977 0.75 ✓ 502*B0 502*B0A 6800 2, 3, 5 3977 0.75 ✓ 682*B0 682*B0A 10 000 2, 3, 5 3977 0.75 ✓ 103*B0 103*B0A 12 000 2, 3, 5 3740 2 ✓ 123*B0 123*B0A 15 000 2, 3, 5 3740 2 ✓ 153*B0 153*B0A 22 000 2, 3, 5 3740 2 ✓ 223*B0 223*B0A 33 000 2, 3, 5 4090 1.5 ✓ 333*B0 333*B0A 47 000 2, 3, 5 4090 1.5 ✓ 473*B0 473*B0A 50 000 2, 3, 5 4190 1.5 ✓ 503*B0 503*B0A 68 000 2, 3, 5 4190 1.5 ✓ 683*B0 683*B0A 100 000 2, 3, 5 4190 1.5 ✓ 104*B0 104*B0A 150 000 2, 3, 5 4370 2.5 ✓ 154*B0 154*B0A 220 000 2, 3, 5 4370 2.5 ✓ 224*B0 224*B0A 330 000 2, 3, 5 4570 1.5 334*B0 334*B0A 470 000 2, 3, 5 4570 1.5 474*B0 474*B0A
Notes
Preferred versions for new designs (1) Replace * in SAP by J for 5 %, H for 3 %, G for 2 % (2) RoHS exemption 7(c)-I: electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezo-electronic devices, or in a glass or ceramic matrix compound
DIMENSIONS
in millimeters
POWER DERATING
B T
Power derating curve
P (%) 100 H2 H1 P L d 0 - 40 0 55 85 125 150 T (°C) amb
Note
• Zero power is considered as measuring power max. 1 % of max. power. Voltage on the NTC should always be below 50 VDC
PHYSICAL DIMENSIONS FOR RELEVANT TYPE
(all dimensions in millimeters)
R H1 25-VALUE BMAX. d H2 MAX. L P TMAX. MIN. MAX.
3.3 Ω to 220 Ω 5.0 0.6 ± 0.06 1.0 4.0 6.0 24 ± 1.5 2.54 4.0 330 Ω to 470 kΩ 3.3 ± 0.5 0.6 ± 0.06 1.0 3.0 6.0 24 ± 1.5 2.54 3.0 Revision: 29-Jan-2024
2
Document Number: 29049 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
