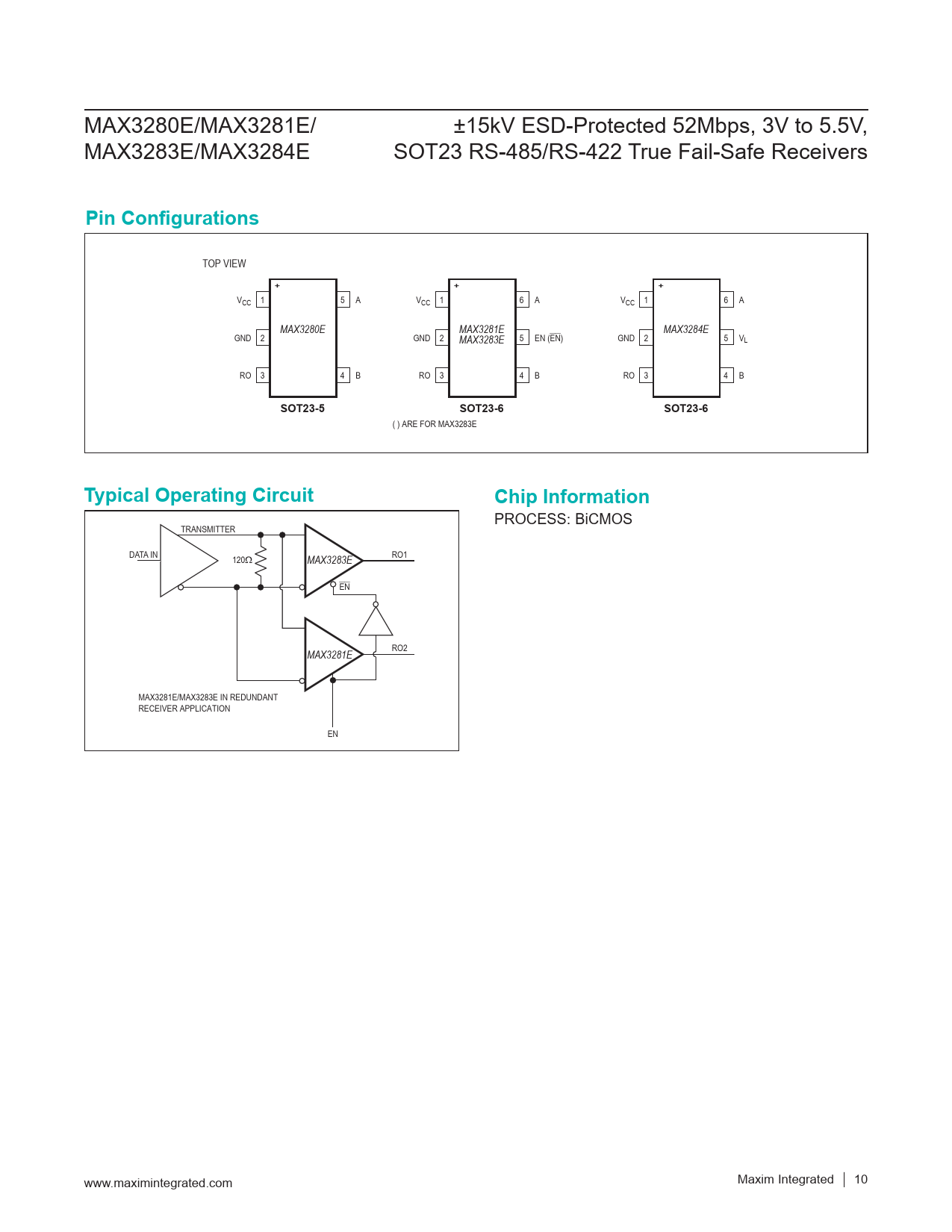

MAX3280E/MAX3281E/ ±15kV ESD-Protected 52Mbps, 3V to 5.5V, MAX3283E/MAX3284E SOT23 RS-485/RS-422 True Fail-Safe Receivers
Pin Configurations
TOP VIEW
+ + +
VCC 1 5 A VCC 1 6 A VCC 1 6 A MAX3280E MAX3281E MAX3284E GND 2 GND 2 5 MAX3283E EN (EN) GND 2 5 VL RO 3 4 B RO 3 4 B RO 3 4 B
SOT23-5 SOT23-6 SOT23-6
( ) ARE FOR MAX3283E
Typical Operating Circuit Chip Information
PROCESS: BiCMOS TRANSMITTER DATA IN 120Ω RO1 MAX3283E EN RO2 MAX3281E MAX3281E/MAX3283E IN REDUNDANT RECEIVER APPLICATION EN www.maximintegrated.com Maxim Integrated │
