Datasheet DF15005S, DF1501S, DF1502S, DF1504S, DF1506S, DF1508S, DF1510S (Diodes)
Fabricante | Diodes |
Descripción | 1.5A Surface Mount Glass Passivated Bridge Rectifier |
Páginas / Página | 5 / 1 — DF15005S – DF1510S. 1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER. … |
Formato / tamaño de archivo | PDF / 365 Kb |
Idioma del documento | Inglés |

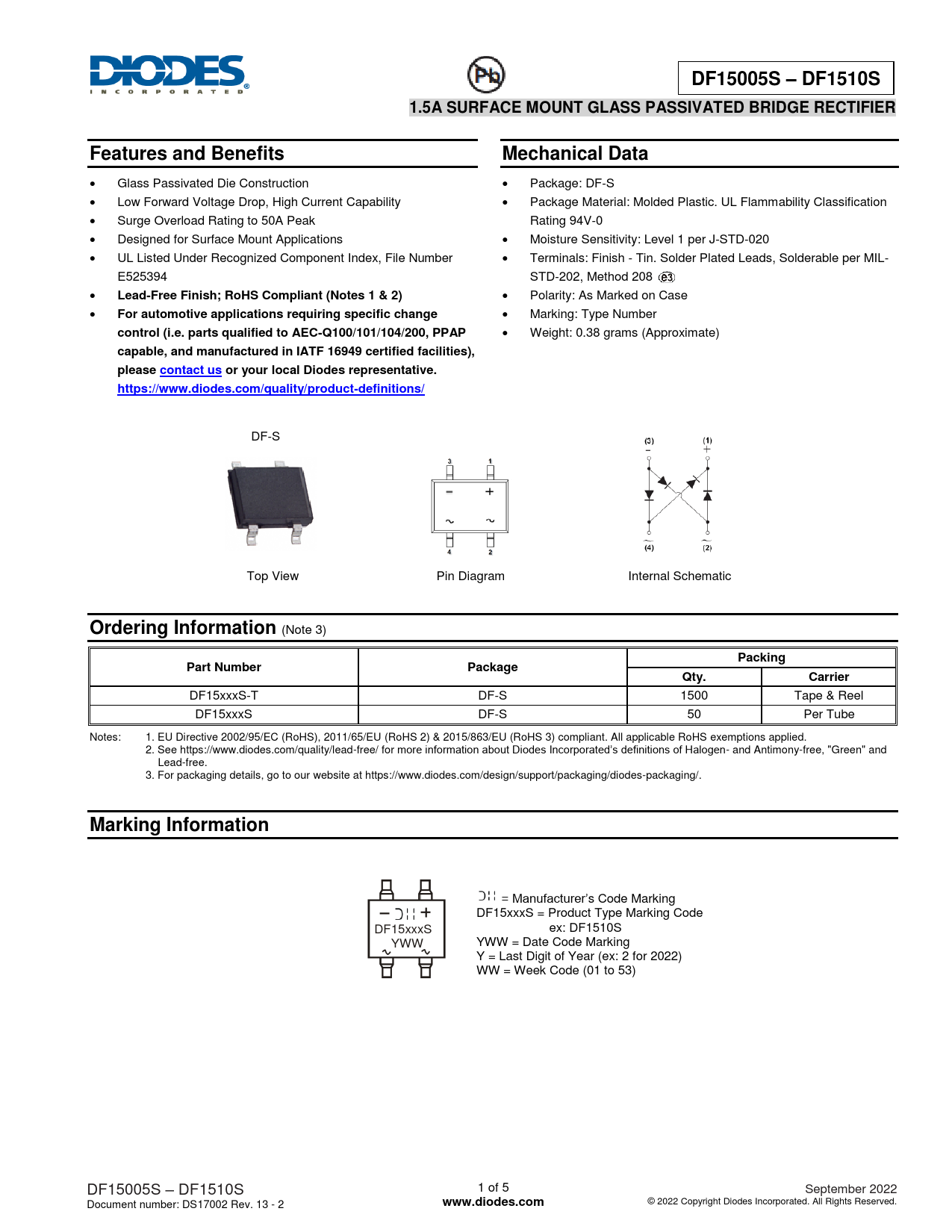

DF15005S – DF1510S. 1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER. Features and Benefits. Mechanical Data
![Datasheet DF15005S, DF1501S, DF1502S, DF1504S, DF1506S, DF1508S, DF1510S Diodes](https://www.rlocman.ru/datasheet/img.php?di=181655)
Línea de modelo para esta hoja de datos
Versión de texto del documento
DF15005S – DF1510S 1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Features and Benefits Mechanical Data
Glass Passivated Die Construction Package: DF-S Low Forward Voltage Drop, High Current Capability Package Material: Molded Plastic. UL Flammability Classification Surge Overload Rating to 50A Peak Rating 94V-0 Designed for Surface Mount Applications Moisture Sensitivity: Level 1 per J-STD-020 UL Listed Under Recognized Component Index, File Number Terminals: Finish - Tin. Solder Plated Leads, Solderable per MIL- E525394 STD-202, Method 208
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Polarity: As Marked on Case
For automotive applications requiring specific change
Marking: Type Number
control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP
Weight: 0.38 grams (Approximate)
capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/
DF-S Top View Pin Diagram Internal Schematic
Ordering Information
(Note 3)
Packing Part Number Package Qty. Carrier
DF15xxxS-T DF-S 1500 Tape & Reel DF15xxxS DF-S 50 Per Tube Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
= Manufacturer’s Code Marking DF15xxxS = Product Type Marking Code DF15xxxS ex: DF1510S YWW YWW = Date Code Marking Y = Last Digit of Year (ex: 2 for 2022) WW = Week Code (01 to 53) DF15005S – DF1510S 1 of 5 September 2022 Document number: DS17002 Rev. 13 - 2
