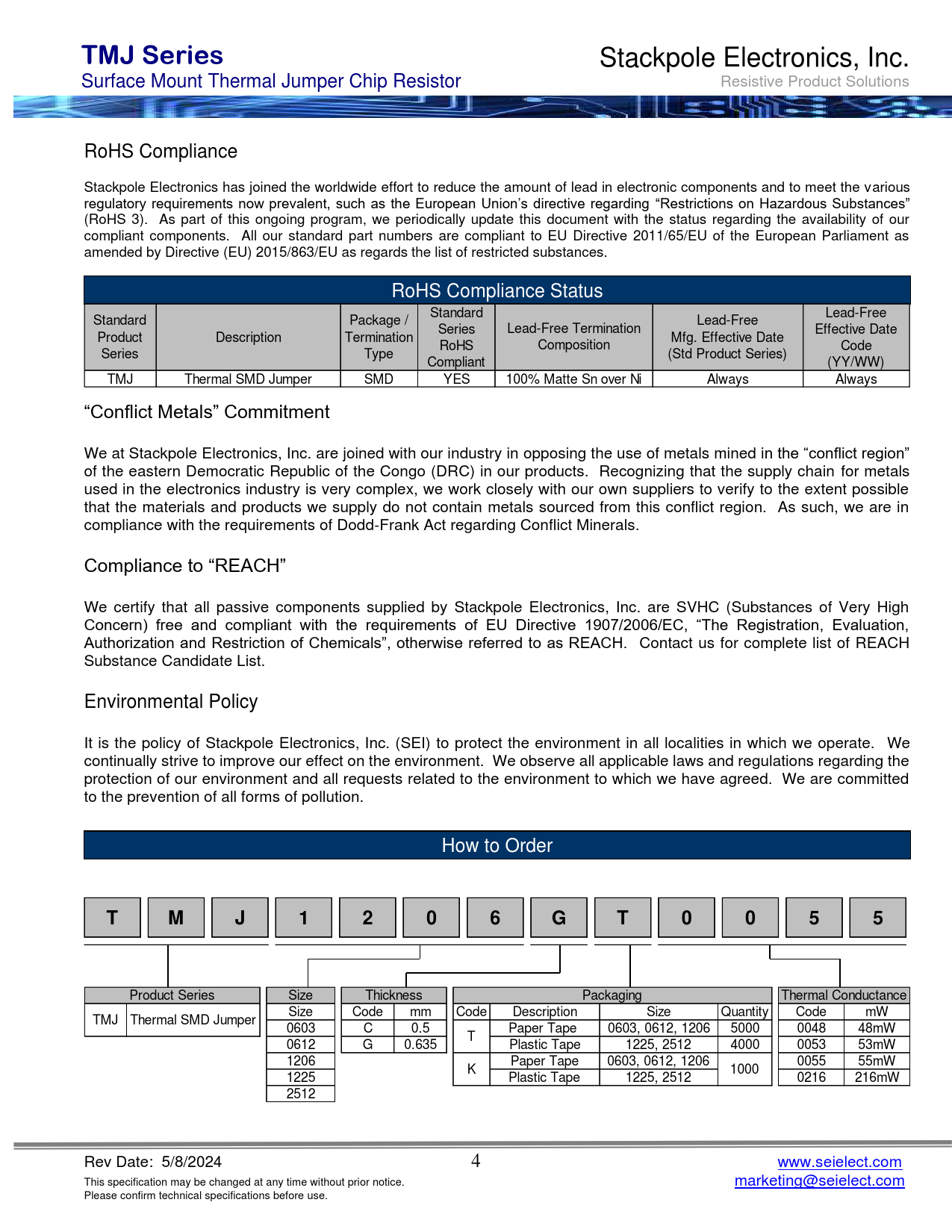

TMJ Series
Stackpole Electronics, Inc. Surface Mount Thermal Jumper Chip Resistor Resistive Product Solutions RoHS Compliance Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances” (RoHS 3). As part of this ongoing program, we periodically update this document with the status regarding the availability of our compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament as amended by Directive (EU) 2015/863/EU as regards the list of restricted substances. RoHS Compliance Status Standard Lead-Free Standard Package / Lead-Free Series Lead-Free Termination Effective Date Product Description Termination Mfg. Effective Date RoHS Composition Code Series Type (Std Product Series) Compliant (YY/WW) TMJ Thermal SMD Jumper SMD YES 100% Matte Sn over Ni Always Always “Conflict Metals” Commitment We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and products we supply do not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of Dodd-Frank Act regarding Conflict Minerals. Compliance to “REACH” We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List. Environmental Policy It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually strive to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our environment and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms of pollution. How to Order
T M J 1 2 0 6 G T 0 0 5 5
Product Series Size Thickness Packaging Thermal Conductance Size Code mm Code Description Size Quantity Code mW TMJ Thermal SMD Jumper 0603 C 0.5 Paper Tape 0603, 0612, 1206 5000 0048 48mW T 0612 G 0.635 Plastic Tape 1225, 2512 4000 0053 53mW 1206 Paper Tape 0603, 0612, 1206 0055 55mW K 1000 1225 Plastic Tape 1225, 2512 0216 216mW 2512 Rev Date: 5/8/2024 4 www.seielect.com This specification may be changed at any time without prior notice. marketing@seielect.com Please confirm technical specifications before use.
