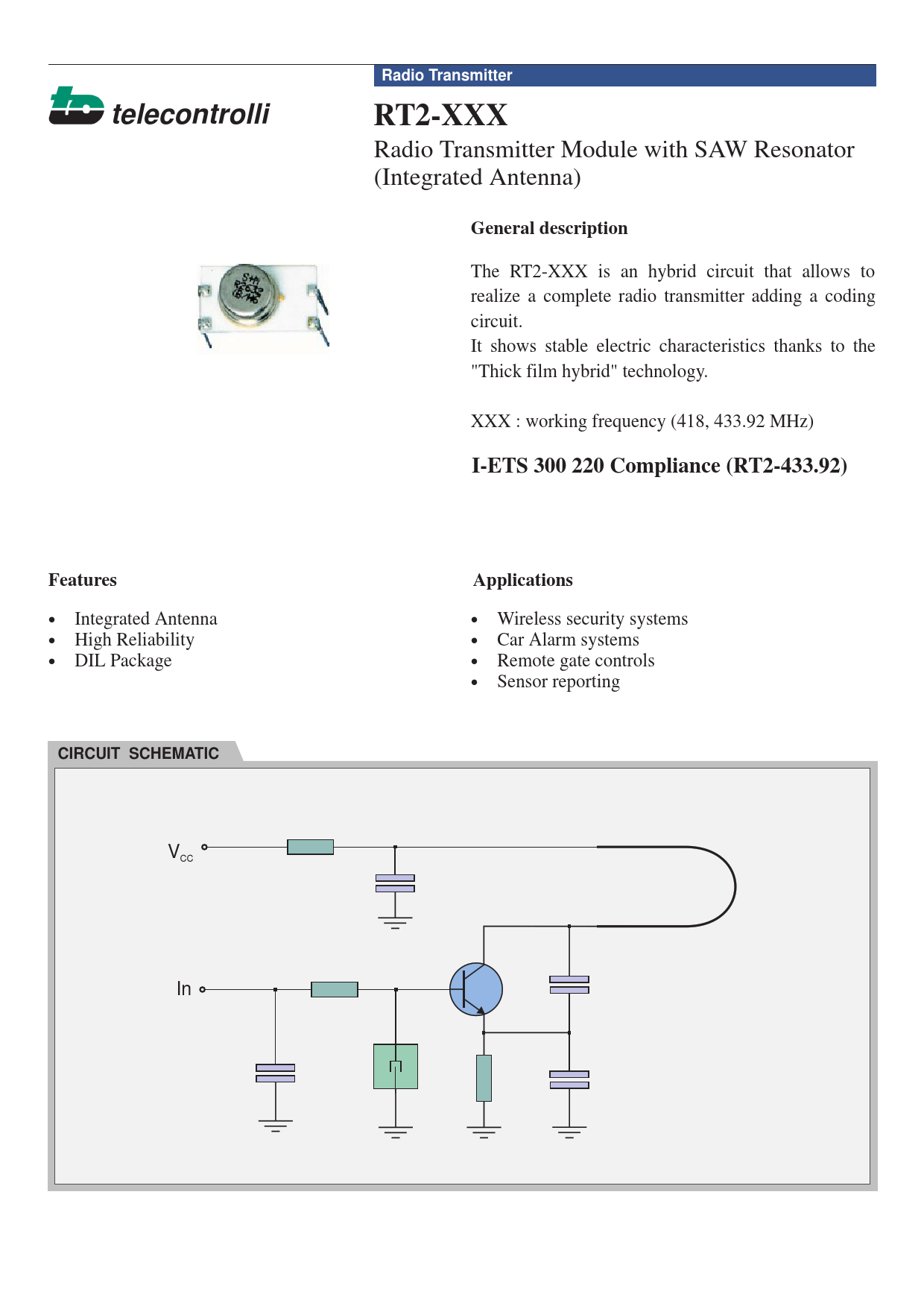

Radio Transmitter telecontrolli RT2-XXX
Radio Transmitter Module with SAW Resonator (Integrated Antenna)
General description
The RT2-XXX is an hybrid circuit that allows to realize a complete radio transmitter adding a coding circuit. It shows stable electric characteristics thanks to the "Thick film hybrid" technology. XXX : working frequency (418, 433.92 MHz)
I-ETS 300 220 Compliance (RT2-433.92) Features Applications
• Integrated Antenna • Wireless security systems • High Reliability • Car Alarm systems • DIL Package • Remote gate controls • Sensor reporting
CIRCUIT SCHEMATIC
VCC In
Radio Transmitter Module with SAW Resonator (Integrated Antenna)
General description
The RT2-XXX is an hybrid circuit that allows to realize a complete radio transmitter adding a coding circuit. It shows stable electric characteristics thanks to the "Thick film hybrid" technology. XXX : working frequency (418, 433.92 MHz)
I-ETS 300 220 Compliance (RT2-433.92) Features Applications
• Integrated Antenna • Wireless security systems • High Reliability • Car Alarm systems • DIL Package • Remote gate controls • Sensor reporting
CIRCUIT SCHEMATIC
VCC In
