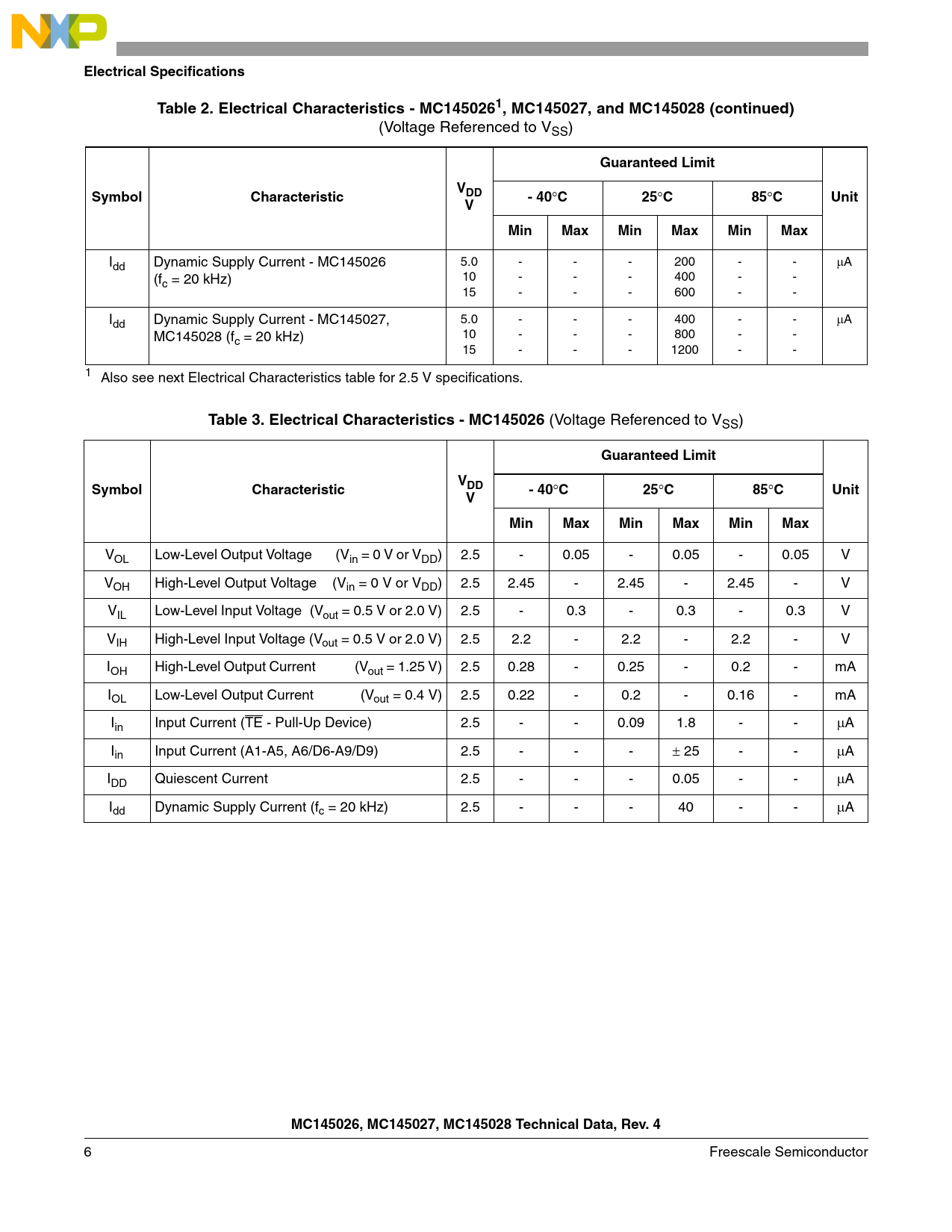

Electrical Specifications. Table 2. Electrical Characteristics - MC1450261, MC145027, and MC145028 (continued)
Línea de modelo para esta hoja de datos
Versión de texto del documento
Electrical Specifications Table 2. Electrical Characteristics - MC1450261, MC145027, and MC145028 (continued)
(Voltage Referenced to VSS)
Guaranteed Limit V Symbol Characteristic DD - 40
°
C 25
°
C 85
°
C Unit V Min Max Min Max Min Max
I µ dd Dynamic Supply Current - MC145026 5.0 - - - 200 - - A (f 10 - - - 400 - - c = 20 kHz) 15 - - - 600 - - I µ dd Dynamic Supply Current - MC145027, 5.0 - - - 400 - - A MC145028 (f 10 - - - 800 - - c = 20 kHz) 15 - - - 1200 - - 1 Also see next Electrical Characteristics table for 2.5 V specifications.
Table 3. Electrical Characteristics - MC145026
(Voltage Referenced to VSS)
Guaranteed Limit V Symbol Characteristic DD - 40
°
C 25
°
C 85
°
C Unit V Min Max Min Max Min Max
VOL Low-Level Output Voltage (Vin = 0 V or VDD) 2.5 - 0.05 - 0.05 - 0.05 V VOH High-Level Output Voltage (Vin = 0 V or VDD) 2.5 2.45 - 2.45 - 2.45 - V VIL Low-Level Input Voltage (Vout = 0.5 V or 2.0 V) 2.5 - 0.3 - 0.3 - 0.3 V VIH High-Level Input Voltage (Vout = 0.5 V or 2.0 V) 2.5 2.2 - 2.2 - 2.2 - V IOH High-Level Output Current (Vout = 1.25 V) 2.5 0.28 - 0.25 - 0.2 - mA IOL Low-Level Output Current (Vout = 0.4 V) 2.5 0.22 - 0.2 - 0.16 - mA Iin Input Current (TE - Pull-Up Device) 2.5 - - 0.09 1.8 - - µA Iin Input Current (A1-A5, A6/D6-A9/D9) 2.5 - - - ± 25 - - µA IDD Quiescent Current 2.5 - - - 0.05 - - µA Idd Dynamic Supply Current (fc = 20 kHz) 2.5 - - - 40 - - µA
MC145026, MC145027, MC145028 Technical Data, Rev. 4
6 Freescale Semiconductor Document Outline 1 Introduction 2 Electrical Specifications 3 Operating Characteristics 3.1 MC145026 3.2 MC145027 3.3 MC145028 4 Pin Descriptions 4.1 MC145026 Encoder 4.2 MC145027 and MC145028 Decoders 5 MC145027 and MC145028 Timing 6 Package Dimensions
