Datasheet NCP1729 (ON Semiconductor) - 7
| Fabricante | ON Semiconductor |
| Descripción | Switched Capacitor Voltage Inverter |
| Páginas / Página | 22 / 7 — NCP1729. Figure 18. Voltage Inverter. Figure 19. Voltage Inverter Load … |
| Formato / tamaño de archivo | PDF / 181 Kb |
| Idioma del documento | Inglés |

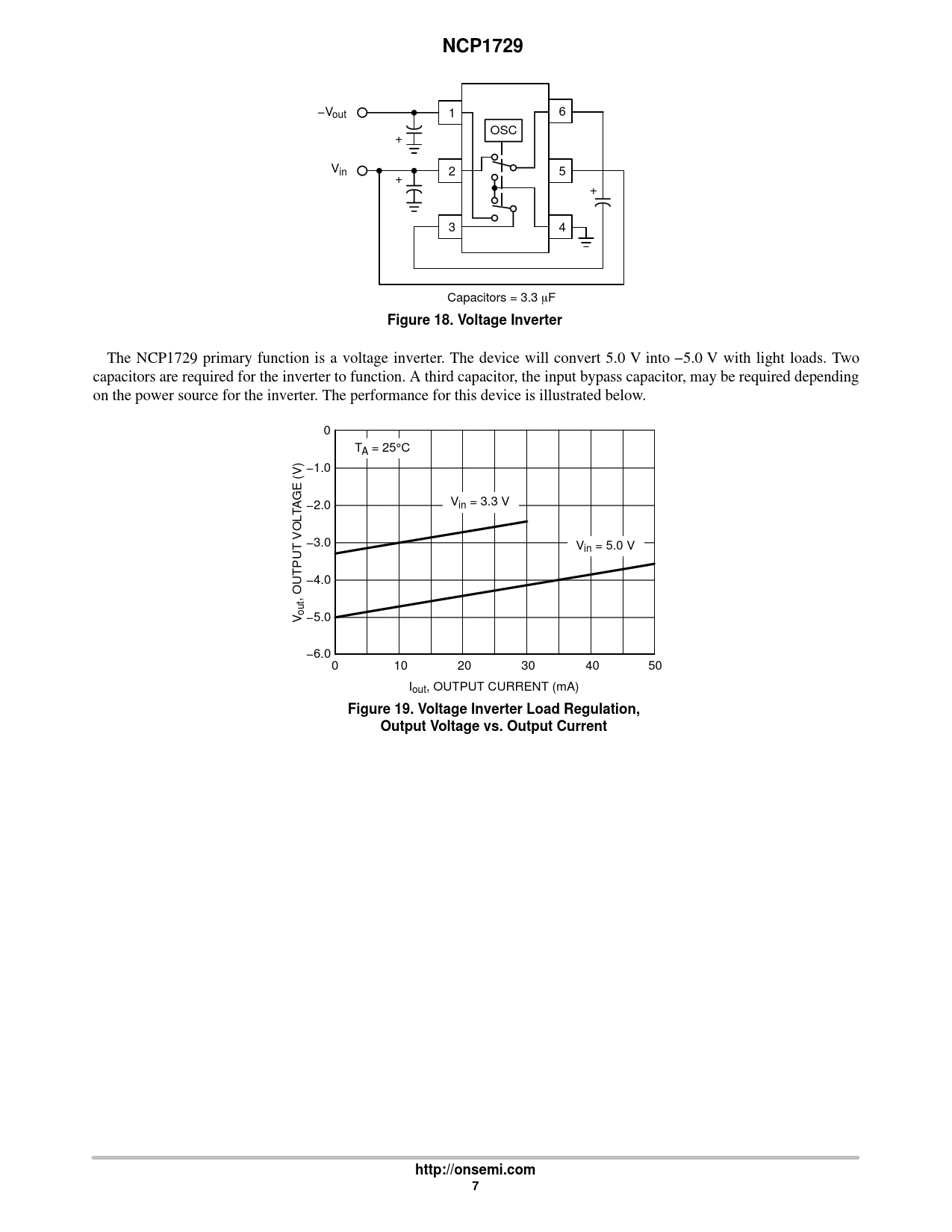

NCP1729. Figure 18. Voltage Inverter. Figure 19. Voltage Inverter Load Regulation,. Output Voltage vs. Output Current
Línea de modelo para esta hoja de datos
Versión de texto del documento
NCP1729
−Vout 1 6 OSC + Vin 2 5 + + 3 4 Capacitors = 3.3 F
Figure 18. Voltage Inverter
The NCP1729 primary function is a voltage inverter. The device will convert 5.0 V into −5.0 V with light loads. Two capacitors are required for the inverter to function. A third capacitor, the input bypass capacitor, may be required depending on the power source for the inverter. The performance for this device is illustrated below. 0 TA = 25°C −1.0 AGE (V) −2.0 Vin = 3.3 V T −3.0 Vin = 5.0 V −4.0 , OUTPUT VOL outV −5.0 −6.0 0 10 20 30 40 50 Iout, OUTPUT CURRENT (mA)
Figure 19. Voltage Inverter Load Regulation, Output Voltage vs. Output Current http://onsemi.com 7
