Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 4 link to page 4 link to page 4

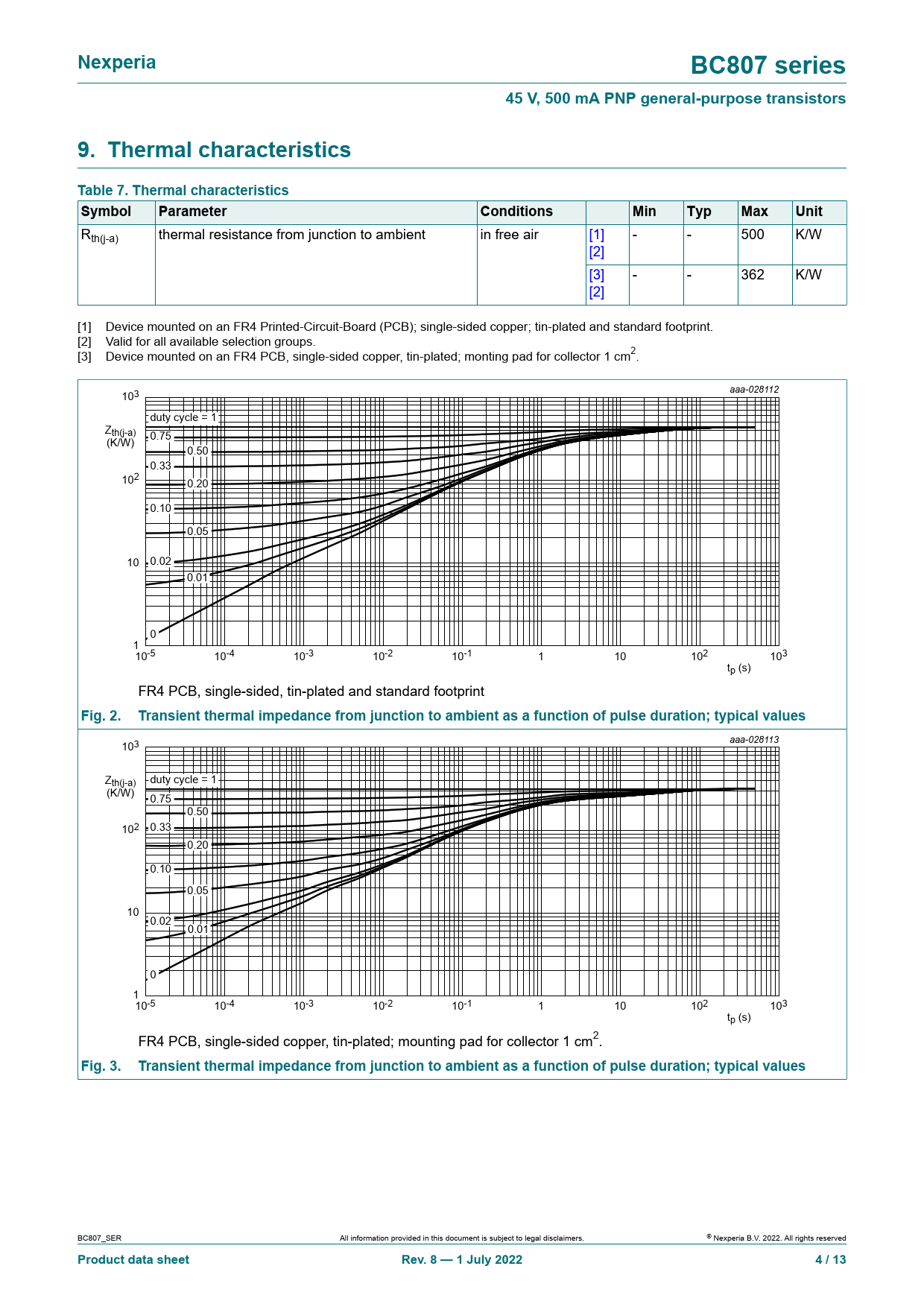

Nexperia BC807 series 45 V, 500 mA PNP general-purpose transistors 9. Thermal characteristics Table 7. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from junction to ambient in free air [1] - - 500 K/W [2] [3] - - 362 K/W [2] [1] Device mounted on an FR4 Printed-Circuit-Board (PCB); single-sided copper; tin-plated and standard footprint. [2] Valid for al available selection groups. [3] Device mounted on an FR4 PCB, single-sided copper, tin-plated; monting pad for col ector 1 cm2. aaa-028112 103 duty cycle = 1 Zth(j-a) (K/W) 0.75 0.50 0.33 102 0.20 0.10 0.05 10 0.02 0.01 0 110-5 10-3 10-2 10-4 10 102 10-1 103 1 tp (s) FR4 PCB, single-sided, tin-plated and standard footprint
Fig. 2. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
aaa-028113 103 Zth(j-a) duty cycle = 1 (K/W) 0.75 0.50 102 0.33 0.20 0.10 0.05 10 0.02 0.01 0 110-5 10-3 10-2 10-4 10 102 10-1 103 1 tp (s) FR4 PCB, single-sided copper, tin-plated; mounting pad for col ector 1 cm2.
Fig. 3. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
BC807_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 4 / 13
