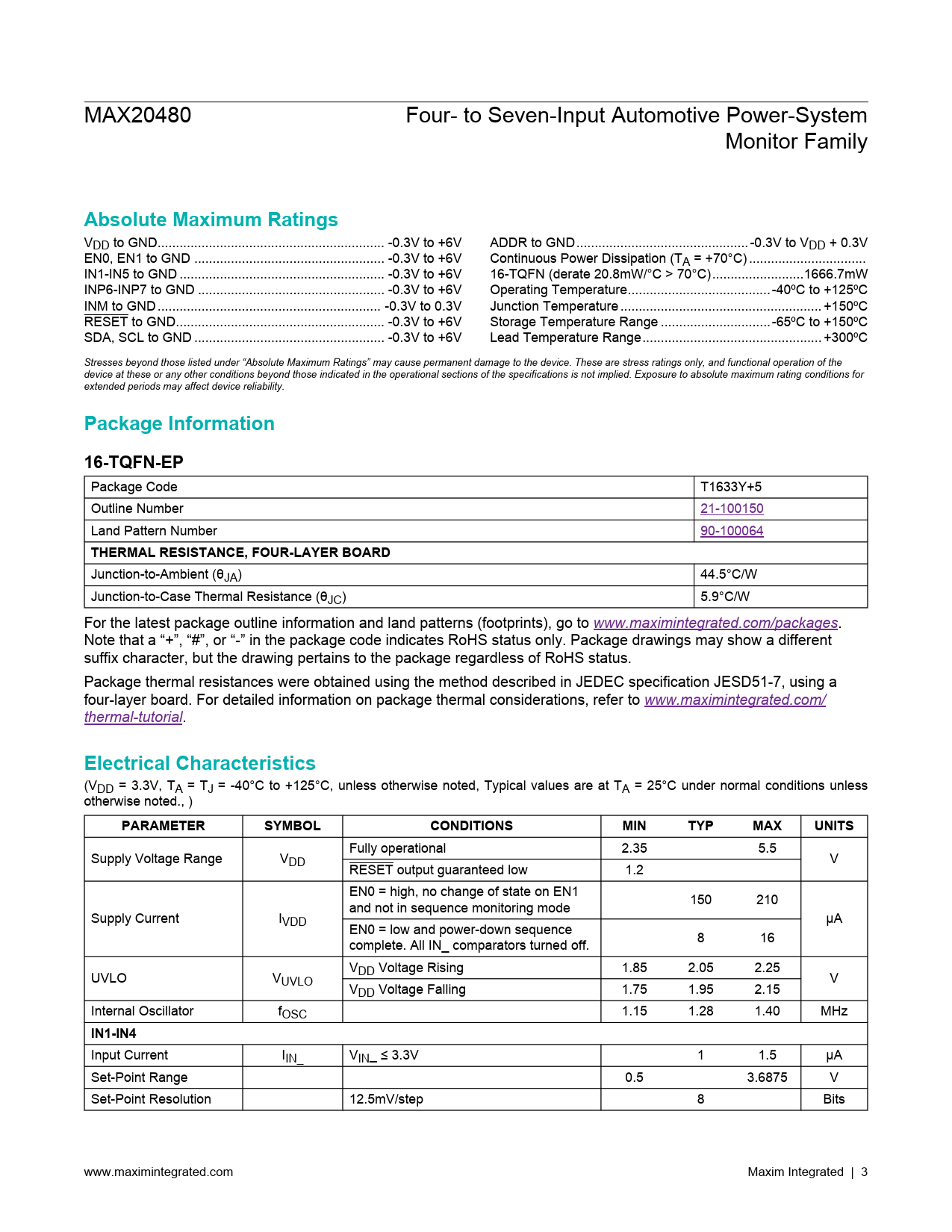

MAX20480 Four- to Seven-Input Automotive Power-System Monitor Family
Absolute Maximum Ratings
VDD to GND.. -0.3V to +6V ADDR to GND... -0.3V to VDD + 0.3V EN0, EN1 to GND .. -0.3V to +6V Continuous Power Dissipation (TA = +70°C) .. IN1-IN5 to GND .. -0.3V to +6V 16-TQFN (derate 20.8mW/°C > 70°C)...1666.7mW INP6-INP7 to GND ... -0.3V to +6V Operating Temperature...-40ºC to +125ºC INM to GND ... -0.3V to 0.3V Junction Temperature ... +150ºC RESET to GND... -0.3V to +6V Storage Temperature Range ..-65ºC to +150ºC SDA, SCL to GND .. -0.3V to +6V Lead Temperature Range... +300ºC Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Package Information 16-TQFN-EP
Package Code T1633Y+5 Outline Number 21-100150 Land Pattern Number 90-100064
THERMAL RESISTANCE, FOUR-LAYER BOARD
Junction-to-Ambient (θJA) 44.5°C/W Junction-to-Case Thermal Resistance (θJC) 5.9°C/W For the latest package outline information and land patterns (footprints), go to www.maximintegrated.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-layer board. For detailed information on package thermal considerations, refer to www.maximintegrated.com/ thermal-tutorial.
Electrical Characteristics
(VDD = 3.3V, TA = TJ = -40°C to +125°C, unless otherwise noted, Typical values are at TA = 25°C under normal conditions unless otherwise noted., )
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Fully operational 2.35 5.5 Supply Voltage Range VDD V RESET output guaranteed low 1.2 EN0 = high, no change of state on EN1 150 210 and not in sequence monitoring mode Supply Current IVDD µA EN0 = low and power-down sequence 8 16 complete. All IN_ comparators turned off. VDD Voltage Rising 1.85 2.05 2.25 UVLO VUVLO V VDD Voltage Falling 1.75 1.95 2.15 Internal Oscillator fOSC 1.15 1.28 1.40 MHz
IN1-IN4
Input Current IIN_ VIN_ ≤ 3.3V 1 1.5 µA Set-Point Range 0.5 3.6875 V Set-Point Resolution 12.5mV/step 8 Bits www.maximintegrated.com Maxim Integrated | 3 Document Outline General Description Applications Benefits and Features Simplified Block Diagram Absolute Maximum Ratings Package Information 16-TQFN-EP Electrical Characteristics Electrical Characteristics (continued) Typical Operating Characteristics Typical Operating Characteristics (continued) Pin Configurations MAX20480A MAX20480B MAX20480C MAX20480D Pin Description Pin Description (continued) Functional Diagram Detailed Description I2C Interface Bit Transfer STOP and START Conditions Early STOP Condition Clock Stretching I2C General Call Address Packet Error Checking (PEC) Slave Address Acknowledge Write-Data Format Read-Data Format Voltage Monitor DVS Operation DVS Command Sequence (Low to High): DVS Command Sequence (High to Low): I2C DVS Timing Example (Low to High) Flexible Power Sequence Recorder Windowed Watchdog and Reset Control Sample C Code For Challenge/Response Watchdog Window Settings RESET Output Enable Inputs (EN0/EN1) Comparator Power States Register Map Top Level Register Details ID (0x00) CONFIG1 (0x01) CONFIG2 (0x02) VMON (0x03) RSTMAP (0x4) STATOV (0x5) STATUV (0x6) STATOFF (0x7) VIN1 (0x8) VIN2 (0x9) VIN3 (0xA) VIN4 (0xB) VIN5 (0xC) VINO6 (0xD) VINU6 (0xE) VINO7 (0xF) VINU7 (0x10) OVUV1 (0x11) OVUV2 (0x12) OVUV3 (0x13) OVUV4 (0x14) OVUV5 (0x15) FPSSTAT1 (0x16) FPSCFG1 (0x17) UTIME1 (0x18) UTIME2 (0x19) UTIME3 (0x1A) UTIME4 (0x1B) UTIME5 (0x1C) UTIME6 (0x1D) UTIME7 (0x1E) DTIME1 (0x1F) DTIME2 (0x20) DTIME3 (0x21) DTIME4 (0x22) DTIME5 (0x23) DTIME6 (0x24) DTIME7 (0x25) WDSTAT (0x26) WDCDIV (0x27) WDCFG1 (0x28) WDCFG2 (0x29) WDKEY (0x2A) WDLOCK (0x2B) RSTCTRL (0x2C) CID (0x2D) Applications Information Diagnostics Typical Application Circuit Ordering Information Revision History
