Package Information. TO-252AA Case Outline. VERSION 1: FACILITY CODE = Y. MILLIMETERS. DIM. MIN. MAX. Note
Línea de modelo para esta hoja de datos
Versión de texto del documento
Package Information
www.vishay.com Vishay Siliconix

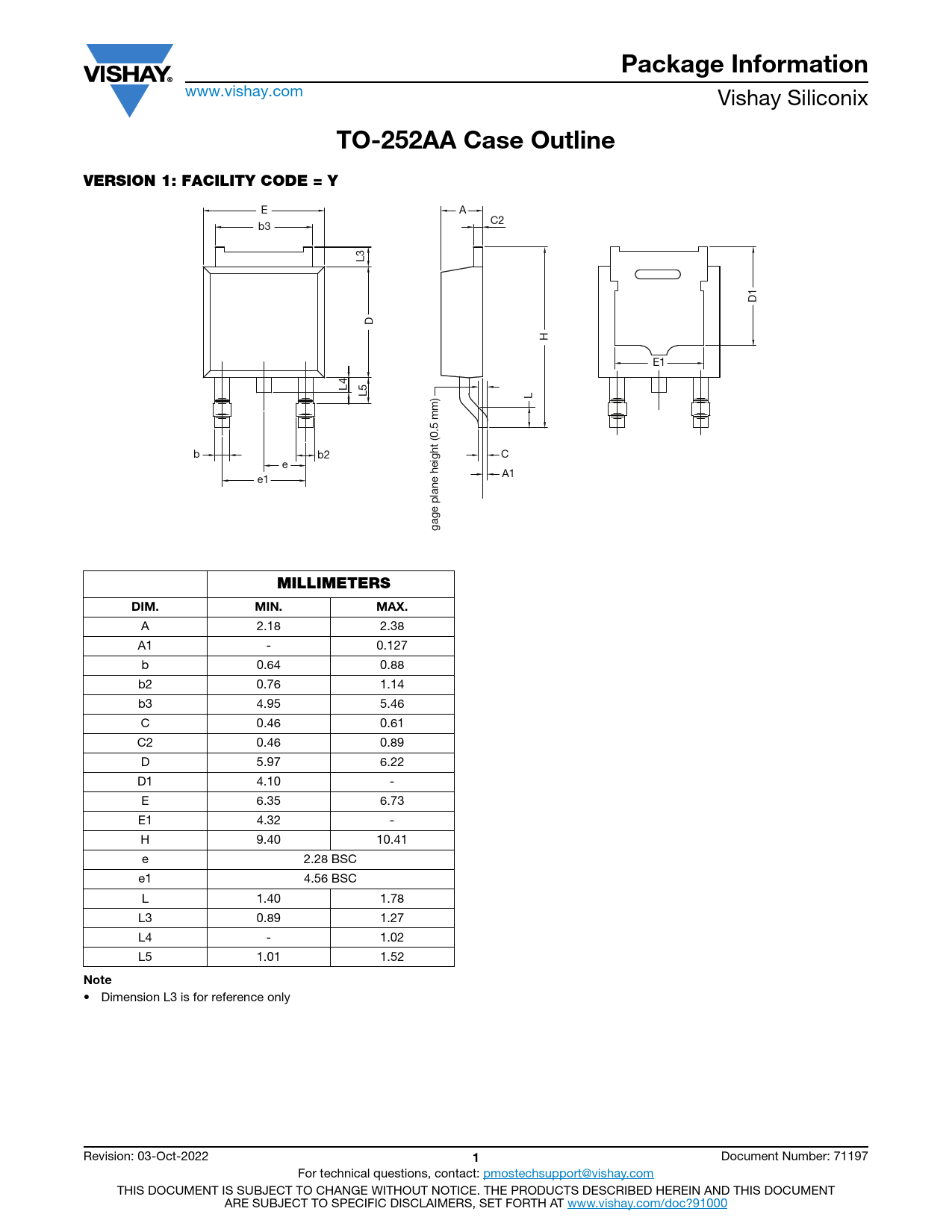

TO-252AA Case Outline VERSION 1: FACILITY CODE = Y
E A C2 b3 L3 D1 D H E1 L4 L5 L b b2 C e A1 e1 gage plane height (0.5 mm)
MILLIMETERS DIM. MIN. MAX.
A 2.18 2.38 A1 - 0.127 b 0.64 0.88 b2 0.76 1.14 b3 4.95 5.46 C 0.46 0.61 C2 0.46 0.89 D 5.97 6.22 D1 4.10 - E 6.35 6.73 E1 4.32 - H 9.40 10.41 e 2.28 BSC e1 4.56 BSC L 1.40 1.78 L3 0.89 1.27 L4 - 1.02 L5 1.01 1.52
Note
• Dimension L3 is for reference only Revision: 03-Oct-2022
1
Document Number: 71197 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
