Datasheet EPC2361 (Efficient Power Conversion) - 9
| Fabricante | Efficient Power Conversion |
| Descripción | Enhancement Mode Power Transistor |
| Páginas / Página | 10 / 9 — eGaN® FET DATASHEET. RECOMMENDED. 1.152 x 1.15. COPPER DRAWING. Part … |
| Formato / tamaño de archivo | PDF / 1.9 Mb |
| Idioma del documento | Inglés |
eGaN® FET DATASHEET. RECOMMENDED. 1.152 x 1.15. COPPER DRAWING. Part outline. Copper. 1.152 x 2.29. 3D COMPOSITE. Legend:
Línea de modelo para esta hoja de datos
Versión de texto del documento
eGaN® FET DATASHEET
EPC2361

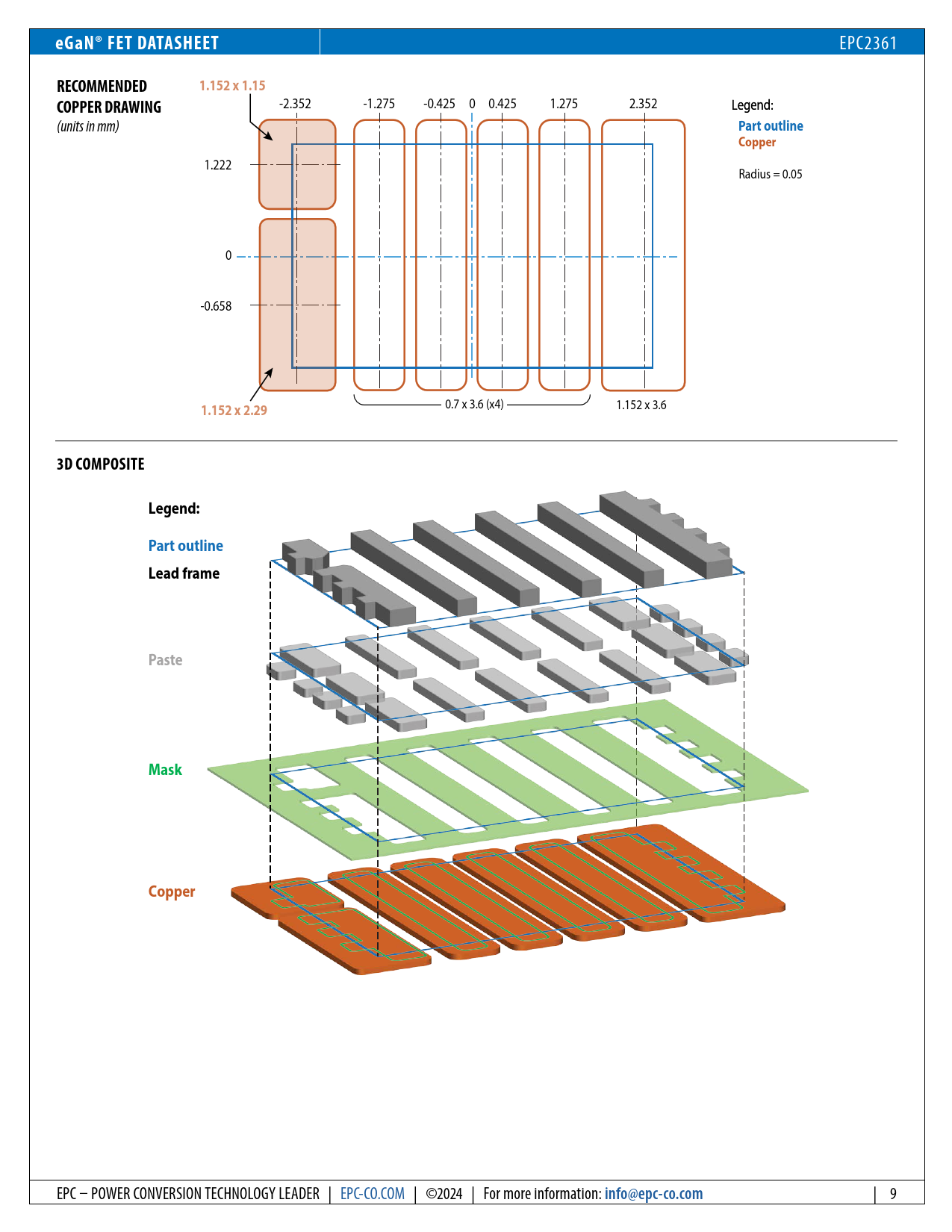

RECOMMENDED 1.152 x 1.15 COPPER DRAWING
-2.352 -1.275 -0.425 0 0.425 1.275 2.352 Le L g e end g : end (units in mm)
Part outline Copper
1.222 Radius = 0.05 0 -0.658 0.7 x 3.6 (x4) 1.152 x 3.6
1.152 x 2.29 3D COMPOSITE Legend: Part outline Lead frame Paste Mask Copper
