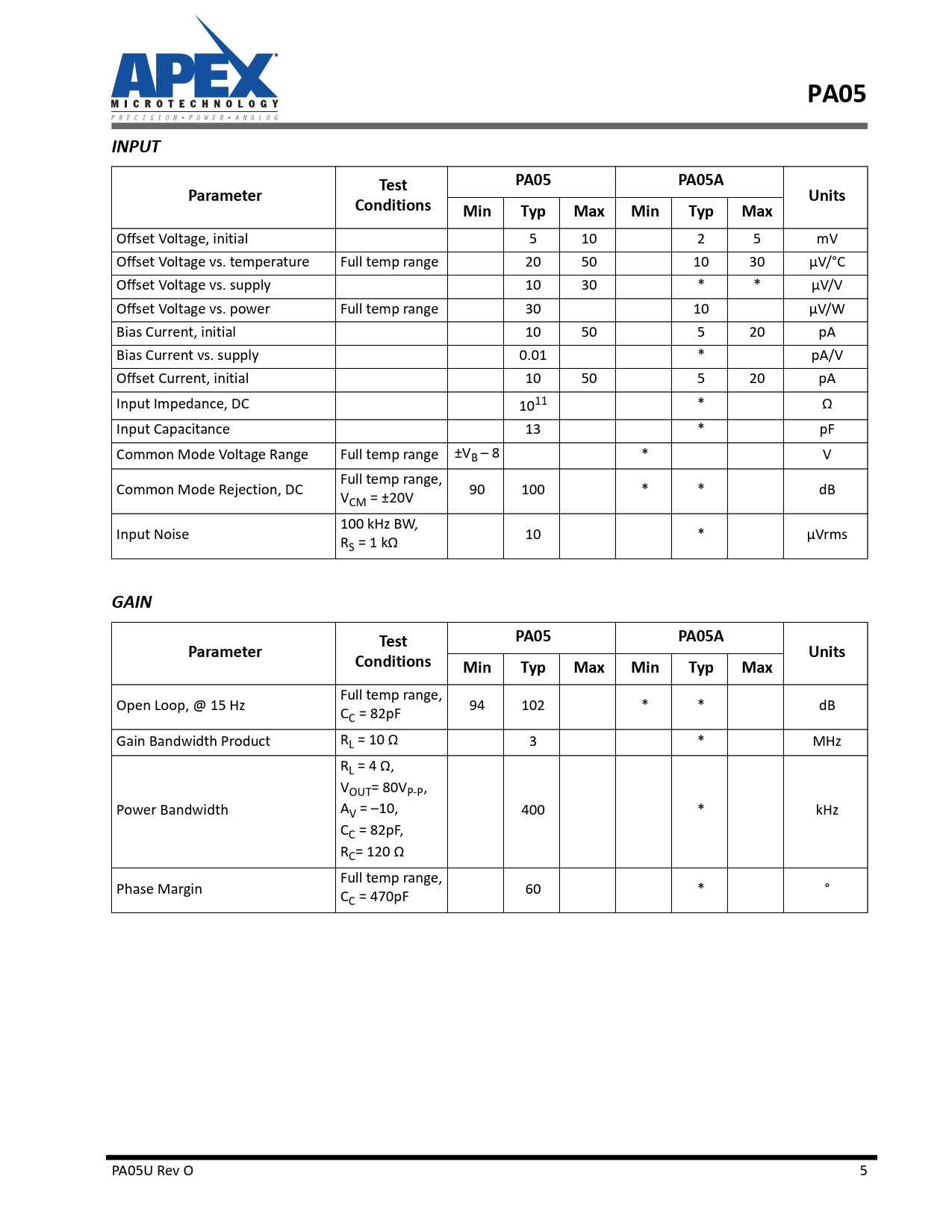

Datasheet PA05 (Apex) - 5

PA05 INPUT PA05 PA05A Parameter Test Conditions Units Min Typ Max Min Typ Max
Offset Voltage, initial 5 10 2 5 mV Offset Voltage vs. temperature Ful temp range 20 50 10 30 µV/°C Offset Voltage vs. supply 10 30 * * µV/V Offset Voltage vs. power Ful temp range 30 10 µV/W Bias Current, initial 10 50 5 20 pA Bias Current vs. supply 0.01 * pA/V Offset Current, initial 10 50 5 20 pA Input Impedance, DC 1011 * Ω Input Capacitance 13 * pF Common Mode Voltage Range Ful temp range ±VB – 8 * V Ful temp range, Common Mode Rejection, DC VCM = ±20V 90 100 * * dB 100 kHz BW, Input Noise RS = 1 kΩ 10 * µVrms
GAIN PA05 PA05A Parameter Test Conditions Units Min Typ Max Min Typ Max
Ful temp range, Open Loop, @ 15 Hz CC = 82pF 94 102 * * dB Gain Bandwidth Product RL = 10 Ω 3 * MHz RL = 4 Ω, VOUT= 80VP-P, Power Bandwidth AV = –10, 400 * kHz CC = 82pF, RC= 120 Ω Ful temp range, Phase Margin CC = 470pF 60 * ° PA05U Rev O 5 Document Outline PA05 Features Applications Description Figure 1: Equivalent Schematic Typical Connection Figure 2: Typical Connections Pinout and Description Table Figure 3: External Connections Specifications Absolute Maximum Ratings Input Gain Output Power Supply Thermal Typical Performance Graphs SAFE OPERATING AREA (SOA) 1. The current handling capability of the MOSFET geometry and the wire bonds. 2. The junction temperature of the output MOSFETs. Figure 16: SOA General Typical Application Figure 17: Typical Application Phase Compensation Current Limit Figure 18: Current Limit Shutdown Operation Figure 19: Shutdown Operation Boost Operation Compensation Package Design Package Style CR
