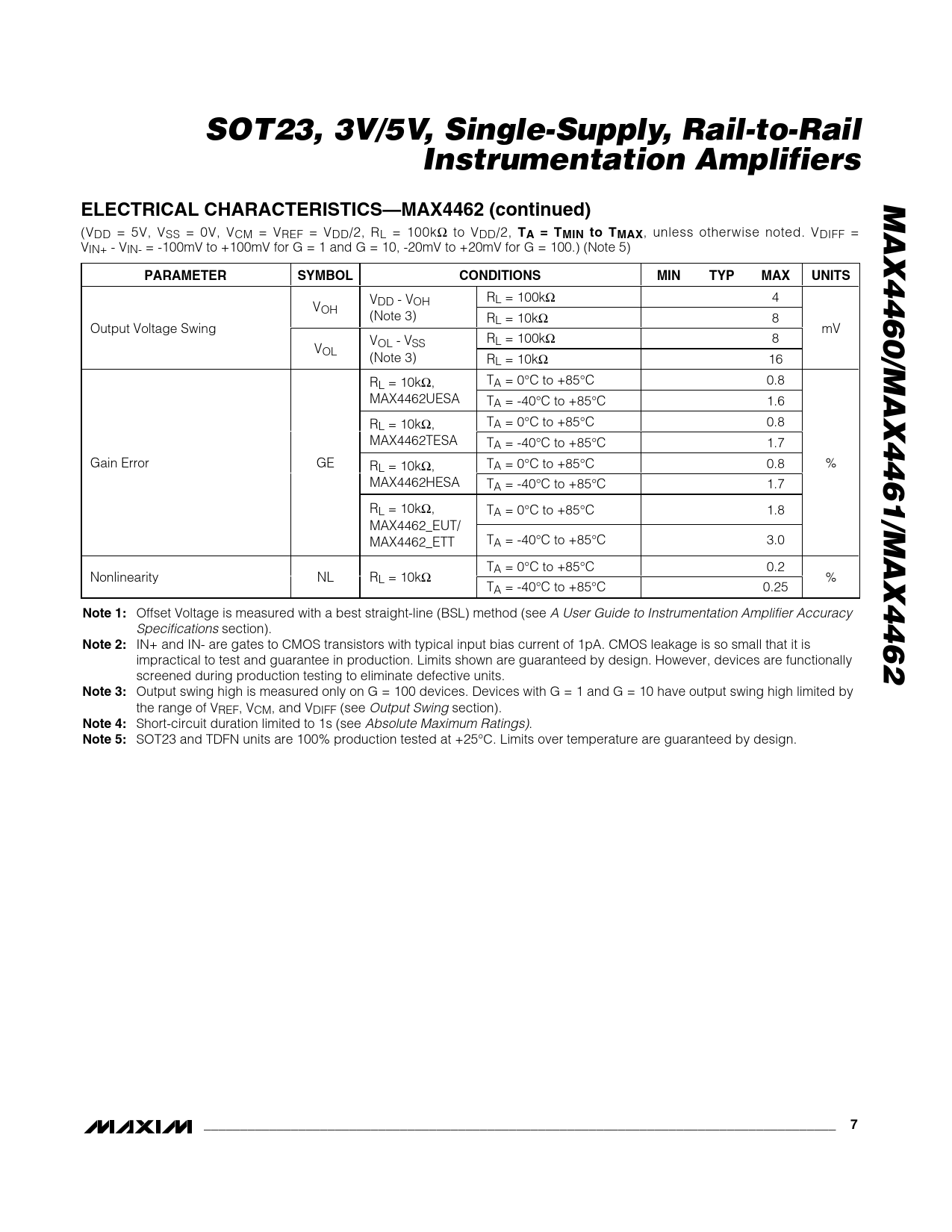

SOT23, 3V/5V, Single-Supply, Rail-to-Rail Instrumentation Amplifiers MAX4460/MAX4461/MAX4462 ELECTRICAL CHARACTERISTICS—MAX4462 (continued)
(VDD = 5V, VSS = 0V, VCM = VREF = VDD/2, RL = 100kΩ to VDD/2,
TA = TMIN to TMAX
, unless otherwise noted. VDIFF = VIN+ - VIN- = -100mV to +100mV for G = 1 and G = 10, -20mV to +20mV for G = 100.) (Note 5)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
V RL = 100k DD - VOH Ω 4 VOH (Note 3) RL = 10kΩ 8 Output Voltage Swing mV V RL = 100k OL - VSS Ω 8 VOL (Note 3) RL = 10kΩ 16 R TA = 0°C to +85°C 0.8 L = 10kΩ, MAX4462UESA TA = -40°C to +85°C 1.6 R TA = 0°C to +85°C 0.8 L = 10kΩ, MAX4462TESA TA = -40°C to +85°C 1.7 Gain Error GE R TA = 0°C to +85°C 0.8 L = 10kΩ, % MAX4462HESA TA = -40°C to +85°C 1.7 RL = 10kΩ, TA = 0°C to +85°C 1.8 MAX4462_EUT/ MAX4462_ETT TA = -40°C to +85°C 3.0 TA = 0°C to +85°C 0.2 Nonlinearity NL RL = 10kΩ % TA = -40°C to +85°C 0.25
Note 1:
Offset Voltage is measured with a best straight-line (BSL) method (see A User Guide to Instrumentation Amplifier Accuracy Specifications section).
Note 2:
IN+ and IN- are gates to CMOS transistors with typical input bias current of 1pA. CMOS leakage is so small that it is impractical to test and guarantee in production. Limits shown are guaranteed by design. However, devices are functionally screened during production testing to eliminate defective units.
Note 3:
Output swing high is measured only on G = 100 devices. Devices with G = 1 and G = 10 have output swing high limited by the range of VREF, VCM, and VDIFF (see Output Swing section).
Note 4:
Short-circuit duration limited to 1s (see Absolute Maximum Ratings).
Note 5:
SOT23 and TDFN units are 100% production tested at +25°C. Limits over temperature are guaranteed by design.
