Datasheet DMS-20PC (Murata) - 6
| Fabricante | Murata |
| Descripción | 3½ Digit, LED Display, Low-Cost, Subminiature Digital Panel Voltmeters |
| Páginas / Página | 6 / 6 — DMS-20PC Series. MECHANICAL SPECIFICATIONS. CALIBRATION POTENTIOMETER … |
| Formato / tamaño de archivo | PDF / 172 Kb |
| Idioma del documento | Inglés |
DMS-20PC Series. MECHANICAL SPECIFICATIONS. CALIBRATION POTENTIOMETER HOLE LOCATION
Línea de modelo para esta hoja de datos
- DMS-20PC-0-AS DMS-20PC-0-AS-C DMS-20PC-0-BL DMS-20PC-0-BL-C DMS-20PC-0-BS DMS-20PC-0-BS-C DMS-20PC-0-GS DMS-20PC-0-GS-C DMS-20PC-0-GSH DMS-20PC-0-GSH-C DMS-20PC-0-OS DMS-20PC-0-OS-C DMS-20PC-0-PGL DMS-20PC-0-PGL-C DMS-20PC-0-RH DMS-20PC-0-RH-C DMS-20PC-0-RL DMS-20PC-0-RL-C DMS-20PC-0-RS DMS-20PC-0-RS-C DMS-20PC-0-RSH DMS-20PC-0-RSH-C DMS-20PC-0-YS DMS-20PC-0-YS-C DMS-20PC-1-AS DMS-20PC-1-AS-C DMS-20PC-1-BL DMS-20PC-1-BL-C DMS-20PC-1-BS DMS-20PC-1-BS-C DMS-20PC-1-GS DMS-20PC-1-GS-C DMS-20PC-1-GSH DMS-20PC-1-GSH-C DMS-20PC-1-OS DMS-20PC-1-OS-C DMS-20PC-1-PGL DMS-20PC-1-PGL-C DMS-20PC-1-RH DMS-20PC-1-RH-C DMS-20PC-1-RL DMS-20PC-1-RL-C DMS-20PC-1-RS DMS-20PC-1-RS-C DMS-20PC-1-RSH DMS-20PC-1-RSH-C DMS-20PC-1-YS DMS-20PC-1-YS-C DMS-20PC-2-AS DMS-20PC-2-AS-C DMS-20PC-2-BL DMS-20PC-2-BL-C DMS-20PC-2-BS DMS-20PC-2-BS-C DMS-20PC-2-GS DMS-20PC-2-GS-C DMS-20PC-2-GSH DMS-20PC-2-GSH-C DMS-20PC-2-OS DMS-20PC-2-OS-C DMS-20PC-2-PGL DMS-20PC-2-PGL-C DMS-20PC-2-RH DMS-20PC-2-RH-C DMS-20PC-2-RL DMS-20PC-2-RL-C DMS-20PC-2-RS DMS-20PC-2-RS-C DMS-20PC-2-RSH DMS-20PC-2-RSH-C DMS-20PC-2-YS DMS-20PC-2-YS-C DMS-20PC-3-AS DMS-20PC-3-AS-C DMS-20PC-3-BL DMS-20PC-3-BL-C DMS-20PC-3-BS DMS-20PC-3-BS-C DMS-20PC-3-GS DMS-20PC-3-GS-C DMS-20PC-3-GSH DMS-20PC-3-GSH-C DMS-20PC-3-OS DMS-20PC-3-OS-C DMS-20PC-3-PGL DMS-20PC-3-PGL-C DMS-20PC-3-RH DMS-20PC-3-RH-C DMS-20PC-3-RL DMS-20PC-3-RL-C DMS-20PC-3-RS DMS-20PC-3-RS-C DMS-20PC-3-RSH DMS-20PC-3-RSH-C DMS-20PC-3-YS DMS-20PC-3-YS-C
Versión de texto del documento

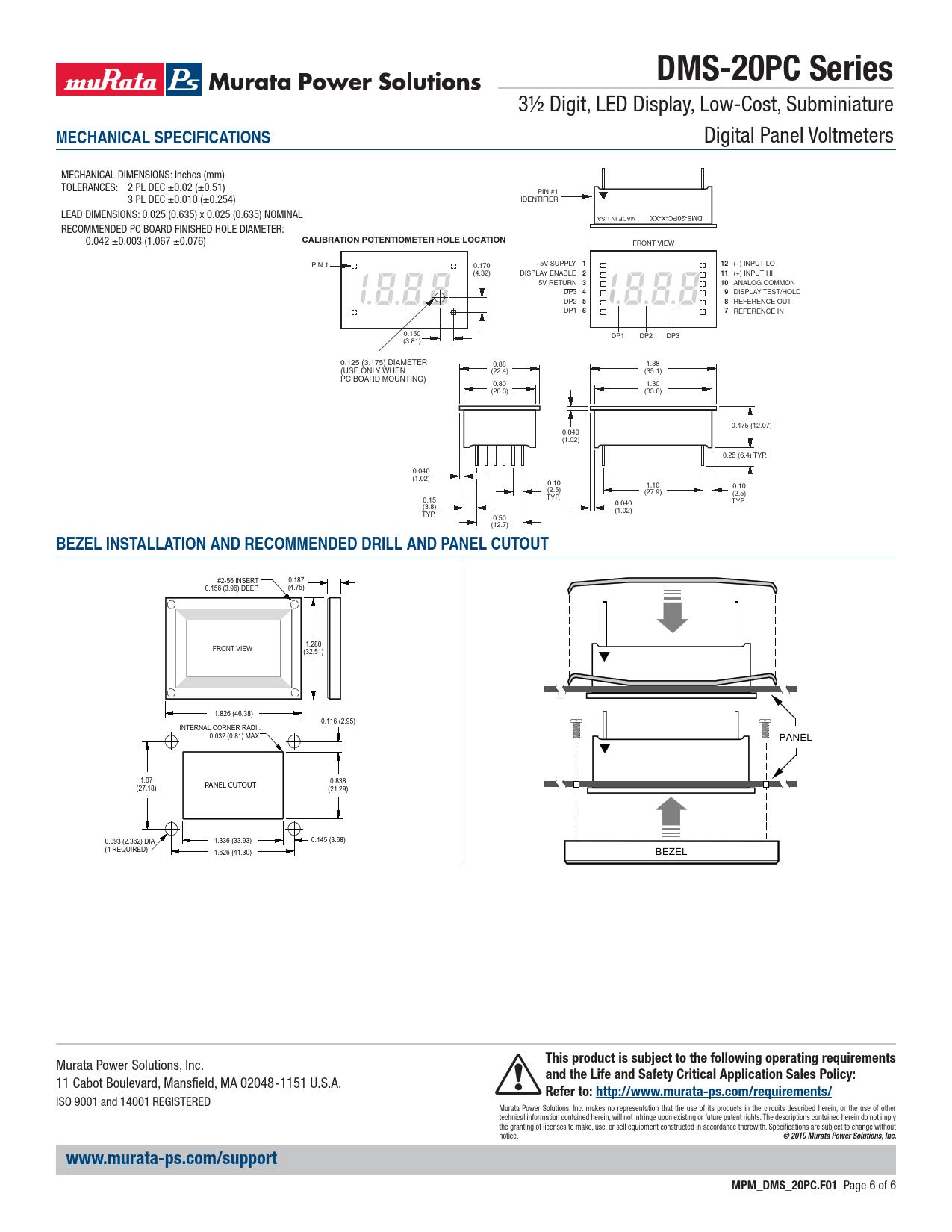

DMS-20PC Series
3½ Digit, LED Display, Low-Cost, Subminiature
MECHANICAL SPECIFICATIONS
Digital Panel Voltmeters MECHANICAL DIMENSIONS: Inches (mm) TOLERANCES: 2 PL DEC ±0.02 (±0.51) PIN #1 3 PL DEC ±0.010 (±0.254) IDENTIFIER LEAD DIMENSIONS: 0.025 (0.635) x 0.025 (0.635) NOMINAL MADE IN USA DMS-20PC-X-XX RECOMMENDED PC BOARD FINISHED HOLE DIAMETER: 0.042 ±0.003 (1.067 ±0.076)
CALIBRATION POTENTIOMETER HOLE LOCATION
FRONT VIEW +5V SUPPLY
1 12
(–) INPUT LO PIN 1 0.170 (4.32) DISPLAY ENABLE
2 11
(+) INPUT HI 5V RETURN
3 10
ANALOG COMMON DP3
4 9
DISPLAY TEST/HOLD DP2
5 8
REFERENCE OUT DP1
6 7
REFERENCE IN 0.150 DP1 DP2 DP3 (3.81) 0.125 (3.175) DIAMETER 0.88 1.38 (USE ONLY WHEN (22.4) (35.1) PC BOARD MOUNTING) 0.80 1.30 (20.3) (33.0) 0.475 (12.07) 0.040 (1.02) 0.25 (6.4) TYP. 0.040 (1.02) 0.10 1.10 0.10 (2.5) (27.9) (2.5) 0.15 TYP. 0.040 TYP. (3.8) (1.02) TYP. 0.50 (12.7)
BEZEL INSTALLATION AND RECOMMENDED DRILL AND PANEL CUTOUT
#2-56 INSERT 0.187 0.156 (3.96) DEEP (4.75) 1.280 FRONT VIEW (32.51) 1.826 (46.38) 0.116 (2.95) INTERNAL CORNER RADII: 0.032 (0.81) MAX. PANEL 1.07 0.838 (27.18) PANEL CUTOUT (21.29) 0.093 (2.362) DIA 1.336 (33.93) 0.145 (3.68) (4 REQUIRED) 1.626 (41.30) BEZEL
This product is subject to the following operating requirements
Murata Power Solutions, Inc.
and the Life and Safety Critical Application Sales Policy:
11 Cabot Boulevard, Mansfi eld, MA 02048-1151 U.S.A.
Refer to: http://www.murata-ps.com/requirements/
ISO 9001 and 14001 REGISTERED Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifi cations are subject to change without notice.
© 2015 Murata Power Solutions, Inc. www.murata-ps.com/support MPM_DMS_20PC.F01
Page 6 of 6
