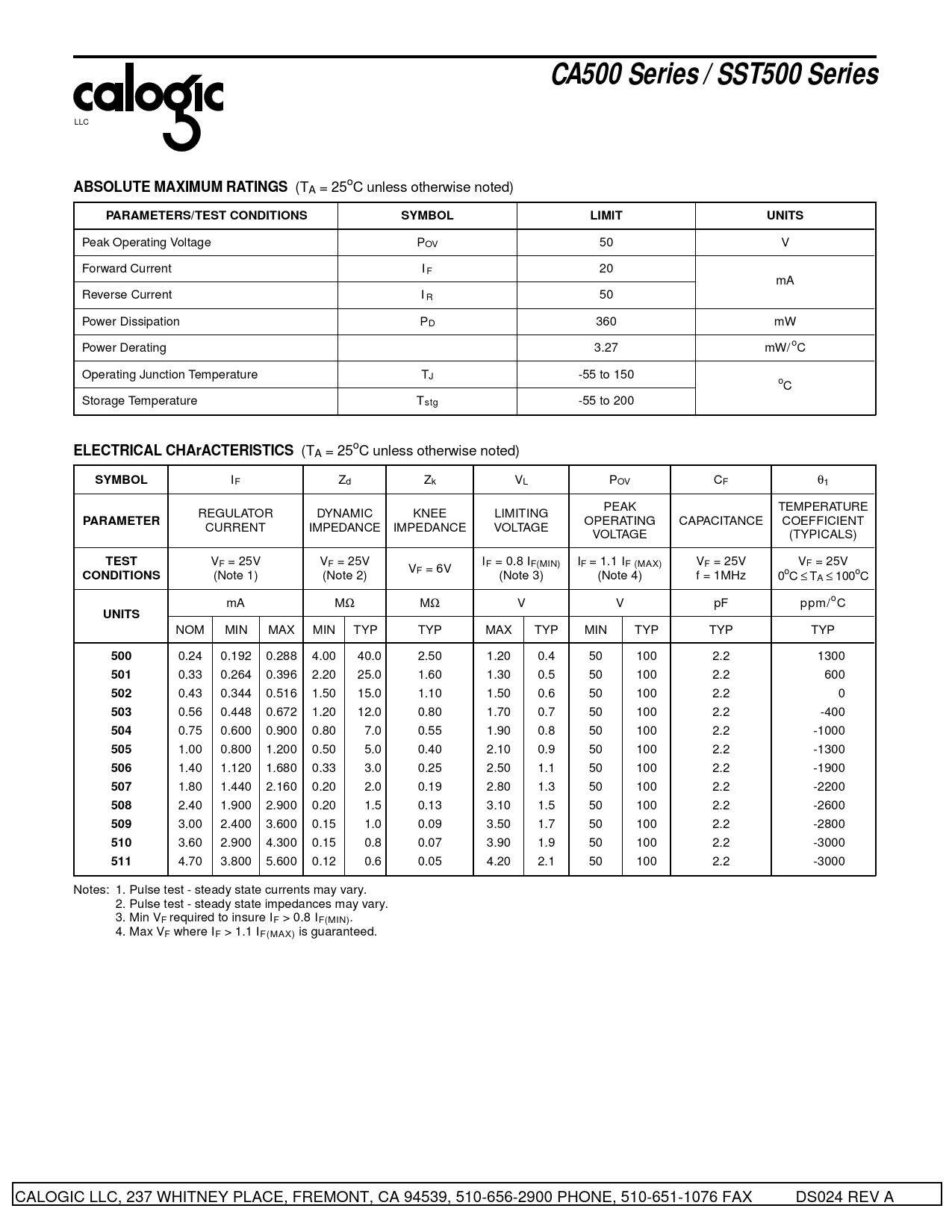

Datasheet J500, SST500 (Calogic) - 2

CA500 Series / SST500 Series
LLC
ABSOLUTE MAXIMUM RATINGS
(TA = 25oC unless otherwise noted)
PARAMETERS/TEST CONDITIONS SYMBOL LIMIT UNITS
Peak Operating Voltage POV 50 V Forward Current I F 20 mA Reverse Current I R 50 Power Dissipation PD 360 mW Power Derating 3.27 mW/ oC Operating Junction Temperature TJ -55 to 150 oC Storage Temperature Tstg -55 to 200
ELECTRICAL CHArACTERISTICS
(TA = 25oC unless otherwise noted)
SYMBOL
IF Zd Zk VL POV CF θ1 PEAK TEMPERATURE REGULATOR DYNAMIC KNEE LIMITING
PARAMETER
OPERATING CAPACITANCE COEFFICIENT CURRENT IMPEDANCE IMPEDANCE VOLTAGE VOLTAGE (TYPICALS)
TEST
VF = 25V VF = 25V I I V V V F = 0.8 IF(MIN) F = 1.1 IF (MAX) F = 25V F = 25V
CONDITIONS
(Note 1) (Note 2) F = 6V (Note 3) (Note 4) f = 1MHz 0oC ≤ TA ≤ 100oC mA MΩ MΩ V V pF ppm/oC
UNITS
NOM MIN MAX MIN TYP TYP MAX TYP MIN TYP TYP TYP
500
0.24 0.192 0.288 4.00 40.0 2.50 1.20 0.4 50 100 2.2 1300
501
0.33 0.264 0.396 2.20 25.0 1.60 1.30 0.5 50 100 2.2 600
502
0.43 0.344 0.516 1.50 15.0 1.10 1.50 0.6 50 100 2.2 0
503
0.56 0.448 0.672 1.20 12.0 0.80 1.70 0.7 50 100 2.2 -400
504
0.75 0.600 0.900 0.80 7.0 0.55 1.90 0.8 50 100 2.2 -1000
505
1.00 0.800 1.200 0.50 5.0 0.40 2.10 0.9 50 100 2.2 -1300
506
1.40 1.120 1.680 0.33 3.0 0.25 2.50 1.1 50 100 2.2 -1900
507
1.80 1.440 2.160 0.20 2.0 0.19 2.80 1.3 50 100 2.2 -2200
508
2.40 1.900 2.900 0.20 1.5 0.13 3.10 1.5 50 100 2.2 -2600
509
3.00 2.400 3.600 0.15 1.0 0.09 3.50 1.7 50 100 2.2 -2800
510
3.60 2.900 4.300 0.15 0.8 0.07 3.90 1.9 50 100 2.2 -3000
511
4.70 3.800 5.600 0.12 0.6 0.05 4.20 2.1 50 100 2.2 -3000 Notes: 1. Pulse test - steady state currents may vary. 2. Pulse test - steady state impedances may vary. 3. Min VF required to insure IF > 0.8 IF(MIN). 4. Max VF where IF > 1.1 IF(MAX) is guaranteed. CALOGIC LLC, 237 WHITNEY PLACE, FREMONT, CA 94539, 510-656-2900 PHONE, 510-651-1076 FAX DS024 REV A
