Datasheet DMP2160UWQ (Diodes)
| Fabricante | Diodes |
| Descripción | P-Channel Enhancement Mode Mosfet |
| Páginas / Página | 6 / 1 — DMP2160UWQ. P-CHANNEL ENHANCEMENT MODE MOSFET. Product Summary. Features … |
| Formato / tamaño de archivo | PDF / 486 Kb |
| Idioma del documento | Inglés |
DMP2160UWQ. P-CHANNEL ENHANCEMENT MODE MOSFET. Product Summary. Features and Benefits. DSS. RDS(ON) Max. TC = +25°C
Línea de modelo para esta hoja de datos
Versión de texto del documento

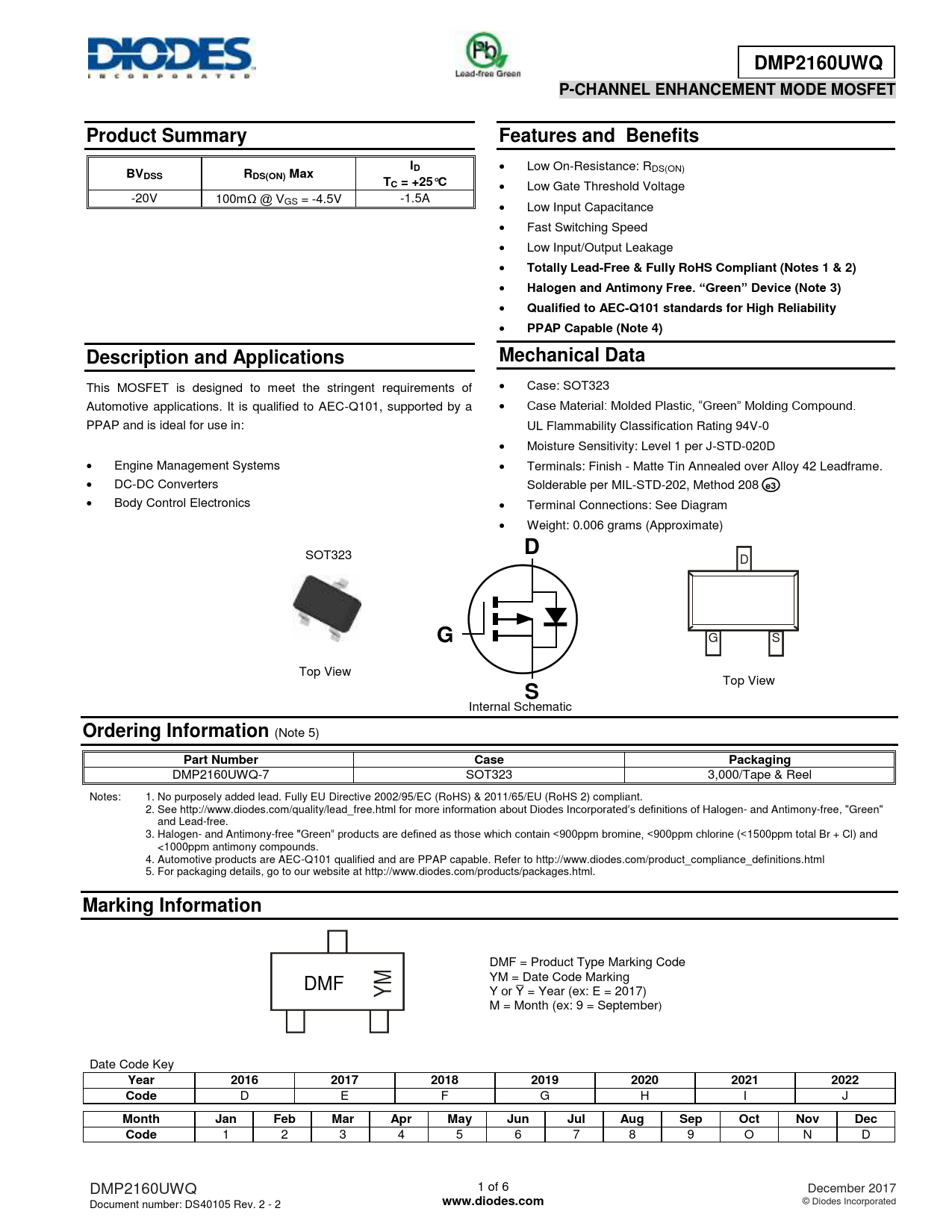

DMP2160UWQ P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features and Benefits ID
Low On-Resistance: R
BV
DS(ON)
DSS RDS(ON) Max TC = +25°C
Low Gate Threshold Voltage -20V 100mΩ @ VGS = -4.5V -1.5A Low Input Capacitance Fast Switching Speed Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 standards for High Reliability PPAP Capable (Note 4) Description and Applications Mechanical Data
This MOSFET is designed to meet the stringent requirements of Case: SOT323 Automotive applications. It is qualified to AEC-Q101, supported by a Case Material: Molded Plastic, “Green” Molding Compound. PPAP and is ideal for use in: UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Engine Management Systems Terminals: Finish - Matte Tin Annealed over Alloy 42 Leadframe. DC-DC Converters Solderable per MIL-STD-202, Method 208
e3
Body Control Electronics Terminal Connections: See Diagram Weight: 0.006 grams (Approximate)
D
SOT323 D
G
G S Top View Top View
S
Internal Schematic
Ordering Information
(Note 5)
Part Number Case Packaging
DMP2160UWQ-7 SOT323 3,000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
DMF = Product Type Marking Code YM = Date Code Marking NA DM B M F Y or = Year (ex: E = 2017) Y M = Month (ex: 9 = September) Date Code Key
Year 2016 2017 2018 2019 2020 2021 2022 Code
D E F G H I J
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D DMP2160UWQ 1 of 6 December 2017 Document number: DS40105 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
