Datasheet BCV62 (Nexperia) - 5
| Fabricante | Nexperia |
| Descripción | PNP General-Purpose Double Transistors |
| Páginas / Página | 14 / 5 — Nexperia. BCV62. PNP general-purpose double transistors. Fig 1. BCV62A: … |
| Formato / tamaño de archivo | PDF / 816 Kb |
| Idioma del documento | Inglés |

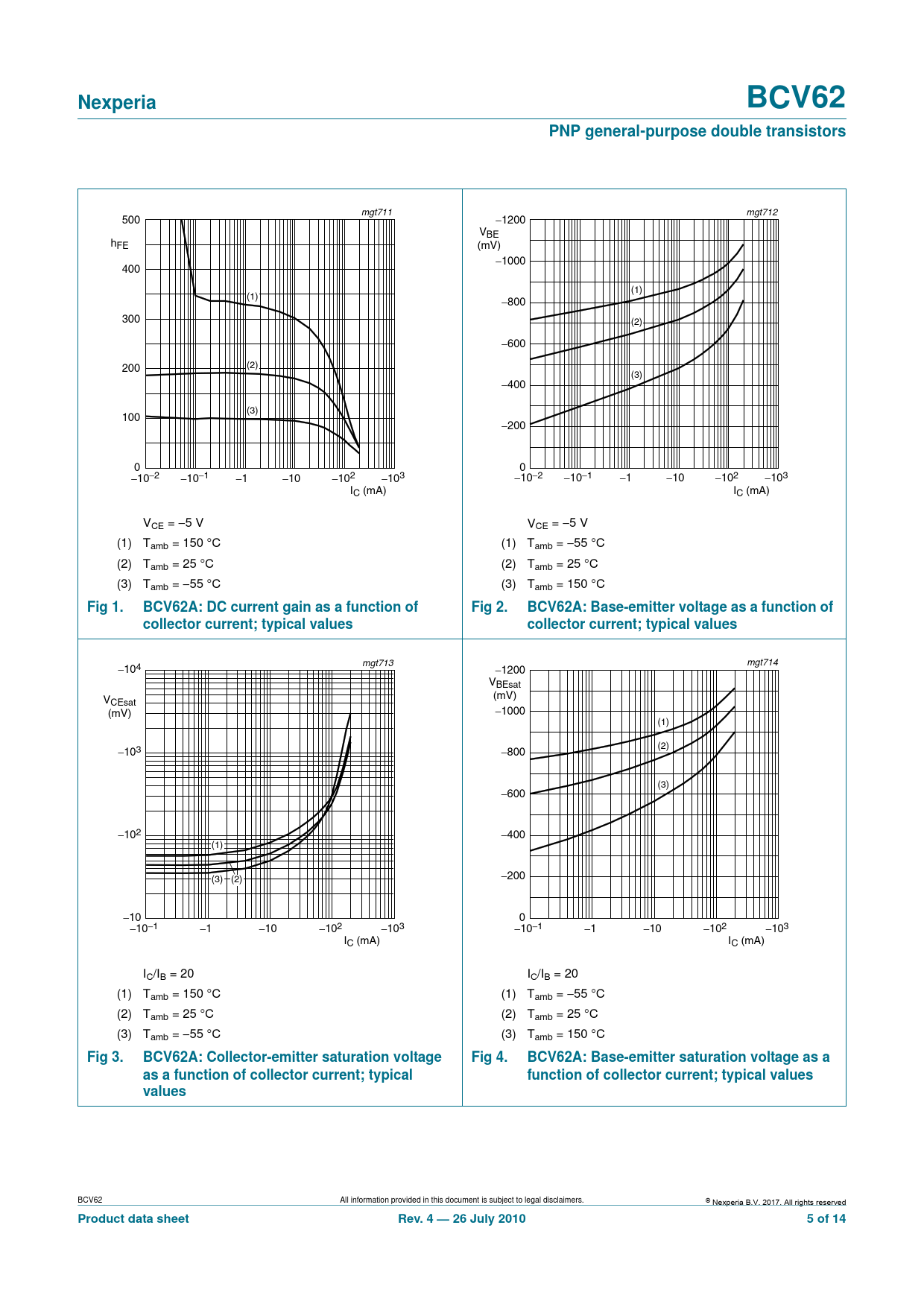

Nexperia. BCV62. PNP general-purpose double transistors. Fig 1. BCV62A: DC current gain as a function of. Fig 2
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia BCV62 PNP general-purpose double transistors
mgt711 mgt712 500 −1200 VBE hFE (mV) −1000 400 (1) (1) −800 300 (2) −600 200 (2) (3) −400 (3) 100 −200 0 0 −10−2 −10−1 −1 −10 −102 −103 −10−2 −10−1 −1 −10 −102 −103 IC (mA) IC (mA) VCE = −5 V VCE = −5 V (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 1. BCV62A: DC current gain as a function of Fig 2. BCV62A: Base-emitter voltage as a function of collector current; typical values collector current; typical values
mgt713 − mgt714 104 −1200 VBEsat V (mV) CEsat (mV) −1000 (1) − (2) 103 −800 (3) −600 −102 −400 (1) (3) (2) −200 −10 0 −10−1 −1 −10 −102 −103 −10−1 −1 −10 −102 −103 IC (mA) IC (mA) IC/IB = 20 IC/IB = 20 (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 3. BCV62A: Collector-emitter saturation voltage Fig 4. BCV62A: Base-emitter saturation voltage as a as a function of collector current; typical function of collector current; typical values values
BCV62 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 4 — 26 July 2010 5 of 14
