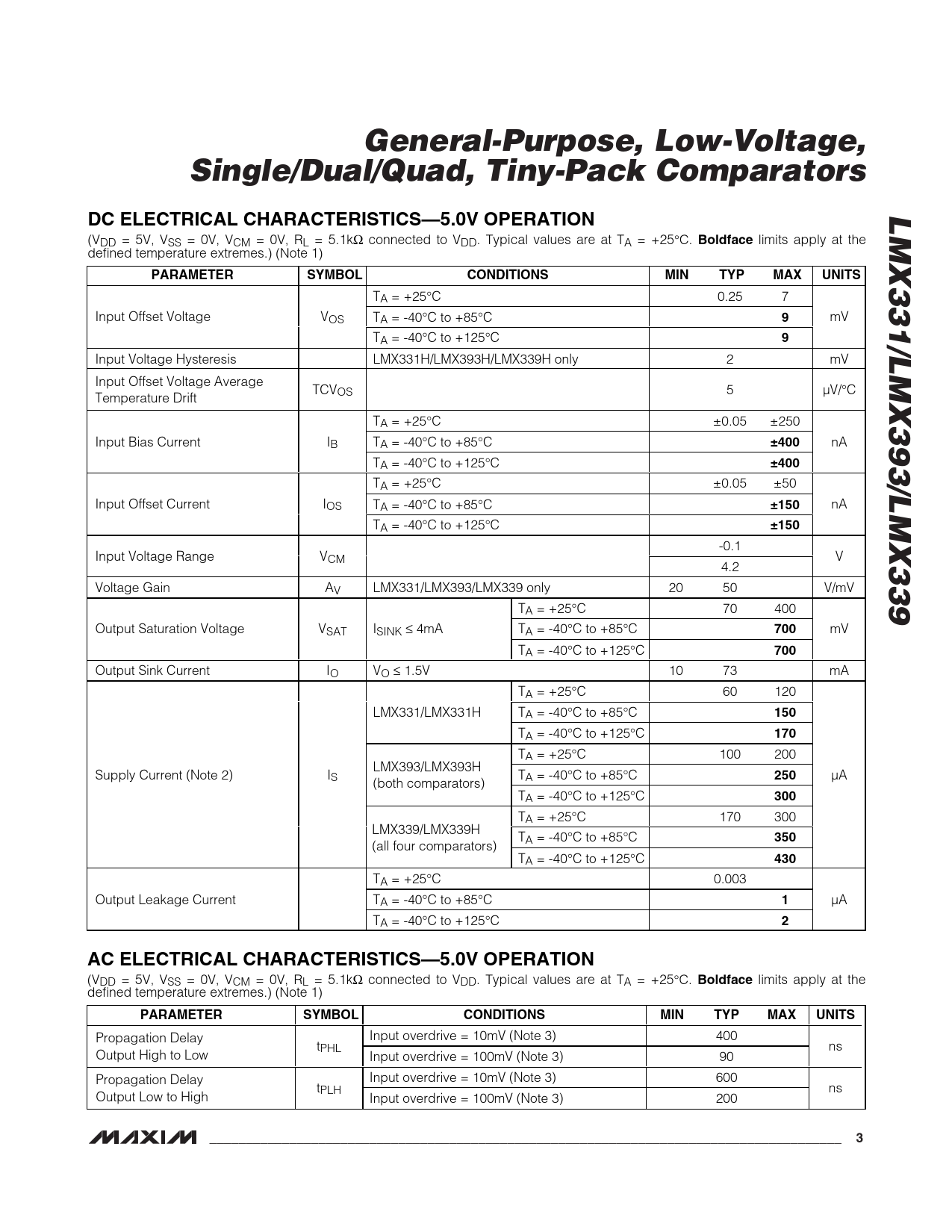

General-Purpose, Low-Voltage, Single/Dual/Quad, Tiny-Pack Comparators LMX331/LMX393/LMX339 DC ELECTRICAL CHARACTERISTICS—5.0V OPERATION
(VDD = 5V, VSS = 0V, VCM = 0V, RL = 5.1kΩ connected to VDD. Typical values are at TA = +25°C.
Boldface
limits apply at the defined temperature extremes.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
TA = +25°C 0.25 7 Input Offset Voltage VOS TA = -40°C to +85°C
9
mV TA = -40°C to +125°C
9
Input Voltage Hysteresis LMX331H/LMX393H/LMX339H only 2 mV Input Offset Voltage Average TCVOS 5 µV/°C Temperature Drift TA = +25°C ±0.05 ±250 Input Bias Current IB TA = -40°C to +85°C
±400
nA TA = -40°C to +125°C
±400
TA = +25°C ±0.05 ±50 Input Offset Current IOS TA = -40°C to +85°C
±150
nA TA = -40°C to +125°C
±150
-0.1 Input Voltage Range VCM V 4.2 Voltage Gain AV LMX331/LMX393/LMX339 only 20 50 V/mV TA = +25°C 70 400 Output Saturation Voltage VSAT ISINK ≤ 4mA TA = -40°C to +85°C
700
mV TA = -40°C to +125°C
700
Output Sink Current IO VO ≤ 1.5V 10 73 mA TA = +25°C 60 120 LMX331/LMX331H TA = -40°C to +85°C
150
TA = -40°C to +125°C
170
TA = +25°C 100 200 LMX393/LMX393H Supply Current (Note 2) IS TA = -40°C to +85°C
250
µA (both comparators) TA = -40°C to +125°C
300
TA = +25°C 170 300 LMX339/LMX339H TA = -40°C to +85°C
350
(all four comparators) TA = -40°C to +125°C
430
TA = +25°C 0.003 Output Leakage Current TA = -40°C to +85°C
1
µA TA = -40°C to +125°C
2 AC ELECTRICAL CHARACTERISTICS—5.0V OPERATION
(VDD = 5V, VSS = 0V, VCM = 0V, RL = 5.1kΩ connected to VDD. Typical values are at TA = +25°C.
Boldface
limits apply at the defined temperature extremes.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Propagation Delay Input overdrive = 10mV (Note 3) 400 tPHL ns Output High to Low Input overdrive = 100mV (Note 3) 90 Propagation Delay Input overdrive = 10mV (Note 3) 600 tPLH ns Output Low to High Input overdrive = 100mV (Note 3) 200
