DATA SHEET. www.onsemi.com. PDIP6 8.51x6.35, 2.54P. CASE 646BX. CASE 646BY. CASE 646BZ. Description. MARKING DIAGRAM. Features. SCHEMATIC
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8

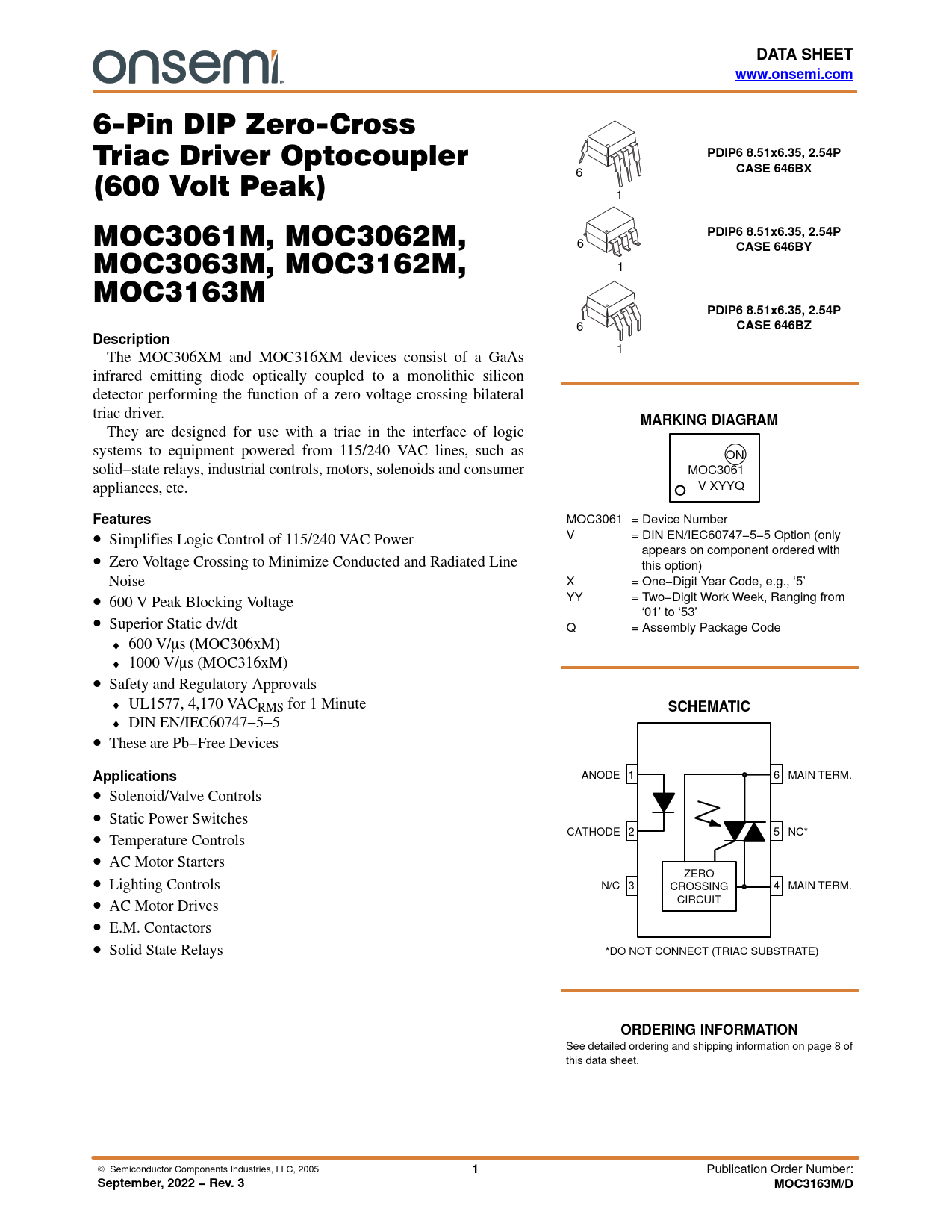

DATA SHEET www.onsemi.com
6-Pin DIP Zero-Cross Triac Driver Optocoupler
PDIP6 8.51x6.35, 2.54P
(600 Volt Peak) 6
CASE 646BX
1 MOC3061M, MOC3062M,
PDIP6 8.51x6.35, 2.54P
6 MOC3063M, MOC3162M,
CASE 646BY
1 MOC3163M
PDIP6 8.51x6.35, 2.54P
6
CASE 646BZ Description
1 The MOC306XM and MOC316XM devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.
MARKING DIAGRAM
They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as ON solid−state relays, industrial controls, motors, solenoids and consumer MOC3061 appliances, etc. V XYYQ
Features
MOC3061 = Device Number • Simplifies Logic Control of 115/240 VAC Power V = DIN EN/IEC60747−5−5 Option (only • appears on component ordered with Zero Voltage Crossing to Minimize Conducted and Radiated Line this option) Noise X = One−Digit Year Code, e.g., ‘5’ • 600 V Peak Blocking Voltage YY = Two−Digit Work Week, Ranging from • ‘01’ to ‘53’ Superior Static dv/dt Q = Assembly Package Code ♦ 600 V/ms (MOC306xM) ♦ 1000 V/ms (MOC316xM) • Safety and Regulatory Approvals ♦ UL1577, 4,170 VACRMS for 1 Minute
SCHEMATIC
♦ DIN EN/IEC60747−5−5 • These are Pb−Free Devices
Applications
ANODE 1 6 MAIN TERM. • Solenoid/Valve Controls • Static Power Switches • CATHODE 2 5 NC* Temperature Controls • AC Motor Starters • ZERO Lighting Controls N/C 3 CROSSING 4 MAIN TERM. • AC Motor Drives CIRCUIT • E.M. Contactors • Solid State Relays *DO NOT CONNECT (TRIAC SUBSTRATE)
ORDERING INFORMATION
See detailed ordering and shipping information on page 8 of this data sheet. © Semiconductor Components Industries, LLC, 2005
1
Publication Order Number:
September, 2022 − Rev. 3 MOC3163M/D
DATA SHEET www.onsemi.com
6-Pin DIP Zero-Cross Triac Driver Optocoupler
PDIP6 8.51x6.35, 2.54P
(600 Volt Peak) 6
CASE 646BX
1 MOC3061M, MOC3062M,
PDIP6 8.51x6.35, 2.54P
6 MOC3063M, MOC3162M,
CASE 646BY
1 MOC3163M
PDIP6 8.51x6.35, 2.54P
6
CASE 646BZ Description
1 The MOC306XM and MOC316XM devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.
MARKING DIAGRAM
They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as ON solid−state relays, industrial controls, motors, solenoids and consumer MOC3061 appliances, etc. V XYYQ
Features
MOC3061 = Device Number • Simplifies Logic Control of 115/240 VAC Power V = DIN EN/IEC60747−5−5 Option (only • appears on component ordered with Zero Voltage Crossing to Minimize Conducted and Radiated Line this option) Noise X = One−Digit Year Code, e.g., ‘5’ • 600 V Peak Blocking Voltage YY = Two−Digit Work Week, Ranging from • ‘01’ to ‘53’ Superior Static dv/dt Q = Assembly Package Code ♦ 600 V/ms (MOC306xM) ♦ 1000 V/ms (MOC316xM) • Safety and Regulatory Approvals ♦ UL1577, 4,170 VACRMS for 1 Minute
SCHEMATIC
♦ DIN EN/IEC60747−5−5 • These are Pb−Free Devices
Applications
ANODE 1 6 MAIN TERM. • Solenoid/Valve Controls • Static Power Switches • CATHODE 2 5 NC* Temperature Controls • AC Motor Starters • ZERO Lighting Controls N/C 3 CROSSING 4 MAIN TERM. • AC Motor Drives CIRCUIT • E.M. Contactors • Solid State Relays *DO NOT CONNECT (TRIAC SUBSTRATE)
ORDERING INFORMATION
See detailed ordering and shipping information on page 8 of this data sheet. © Semiconductor Components Industries, LLC, 2005
1
Publication Order Number:
September, 2022 − Rev. 3 MOC3163M/D
