TLV9061, TLV9062, TLV9064
SBOS839J – MARCH 2017 – REVISED SEPTEMBER 2019

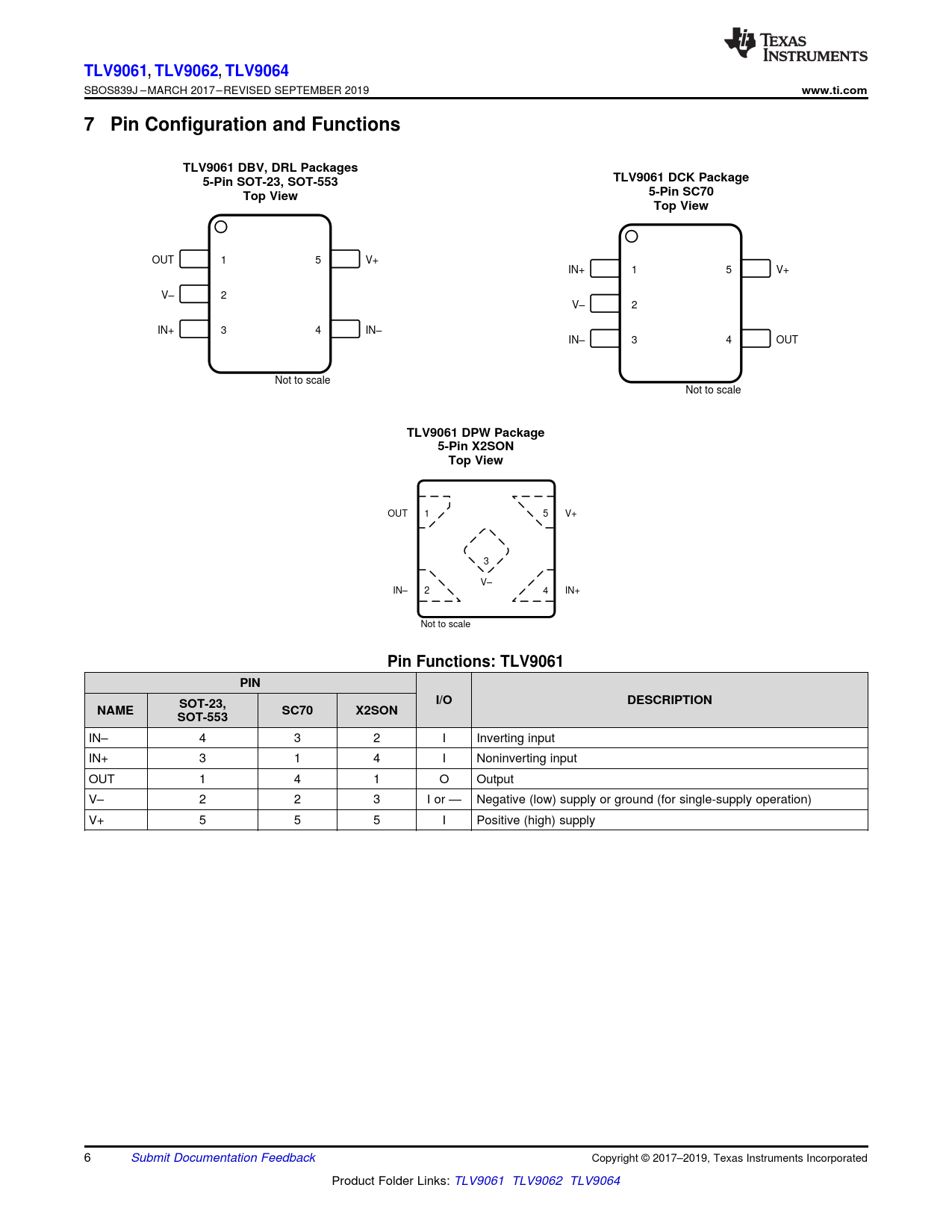

www.ti.com 7 Pin Configuration and Functions TLV9061 DBV, DRL Packages 5-Pin SOT-23, SOT-553 TLV9061 DCK Package Top View 5-Pin SC70 Top View
OUT 1 5 V+ IN+ 1 5 V+ V 2 ± V 2 ± IN+ 3 4 IN± IN 3 ± 4 OUT Not to scale Not to scale
TLV9061 DPW Package 5-Pin X2SON Top View
OUT 1 5 V+ 3 V± IN 2 ± 4 IN+ Not to scale
Pin Functions: TLV9061 PIN I/O DESCRIPTION SOT-23, NAME SC70 X2SON SOT-553
IN– 4 3 2 I Inverting input IN+ 3 1 4 I Noninverting input OUT 1 4 1 O Output V– 2 2 3 I or — Negative (low) supply or ground (for single-supply operation) V+ 5 5 5 I Positive (high) supply 6 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: TLV9061 TLV9062 TLV9064 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Description (continued) 6 Device Comparison Table 7 Pin Configuration and Functions 8 Specifications 8.1 Absolute Maximum Ratings 8.2 ESD Ratings 8.3 Recommended Operating Conditions 8.4 Thermal Information: TLV9061 8.5 Thermal Information: TLV9061S 8.6 Thermal Information: TLV9062 8.7 Thermal Information: TLV9062S 8.8 Thermal Information: TLV9064 8.9 Thermal Information: TLV9064S 8.10 Electrical Characteristics 8.11 Typical Characteristics 9 Detailed Description 9.1 Overview 9.2 Functional Block Diagram 9.3 Feature Description 9.3.1 Rail-to-Rail Input 9.3.2 Rail-to-Rail Output 9.3.3 EMI Rejection 9.3.4 Overload Recovery 9.3.5 Shutdown Function 9.4 Device Functional Modes 10 Application and Implementation 10.1 Application Information 10.2 Typical Applications 10.2.1 Typical Low-Side Current Sense Application 10.2.1.1 Design Requirements 10.2.1.2 Detailed Design Procedure 10.2.1.3 Application Curve 11 Power Supply Recommendations 11.1 Input and ESD Protection 12 Layout 12.1 Layout Guidelines 12.2 Layout Example 13 Device and Documentation Support 13.1 Documentation Support 13.1.1 Related Documentation 13.2 Related Links 13.3 Receiving Notification of Documentation Updates 13.4 Community Resources 13.5 Trademarks 13.6 Electrostatic Discharge Caution 13.7 Glossary 14 Mechanical, Packaging, and Orderable Information
