HCPL-7800A/HCPL-7800
Data Sheet Isolation Amplifer

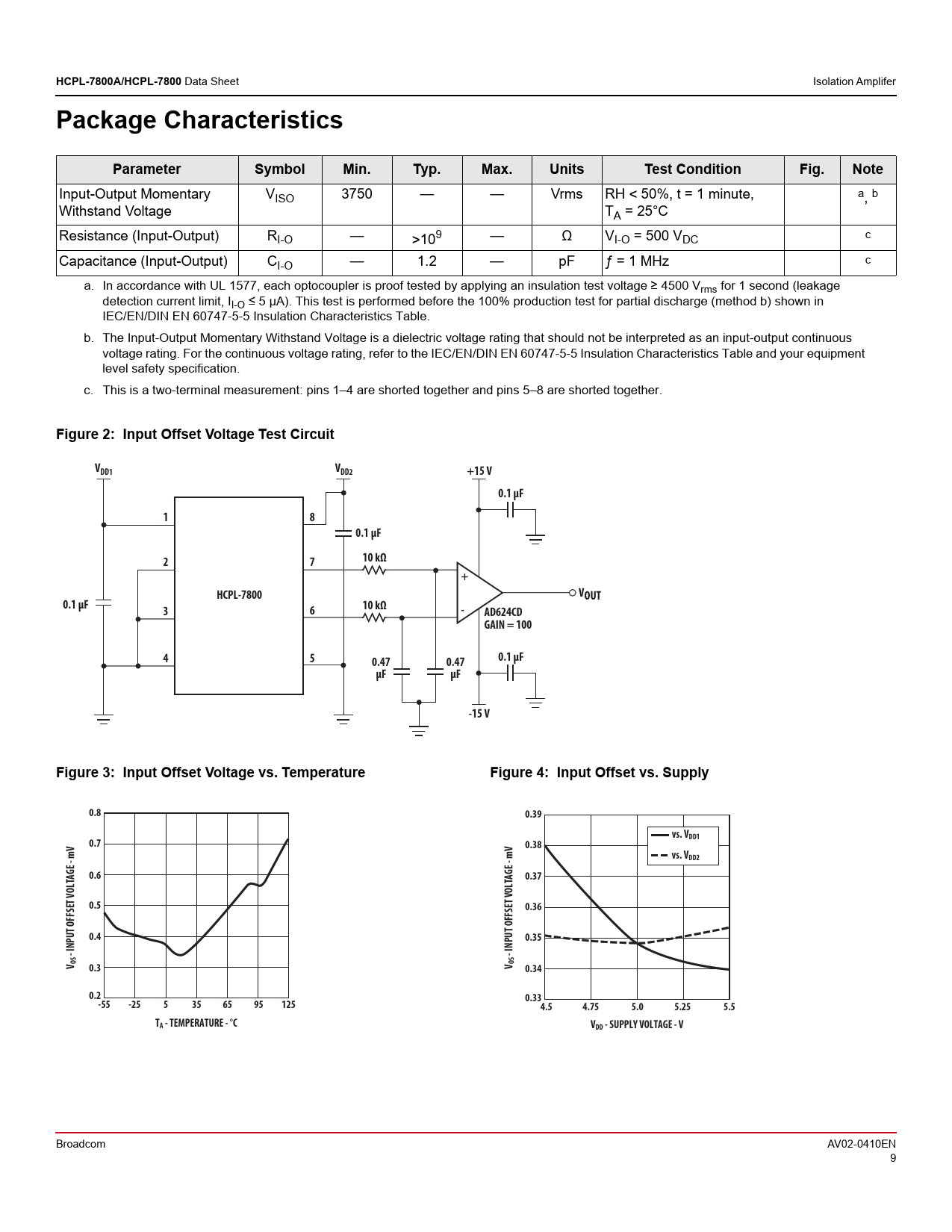

Package Characteristics Parameter Symbol Min. Typ. Max. Units Test Condition Fig. Note
Input-Output Momentary VISO 3750 — — Vrms RH < 50%, t = 1 minute, a, b Withstand Voltage TA = 25°C Resistance (Input-Output) RI-O — >109 — Ω VI-O = 500 VDC c Capacitance (Input-Output) CI-O — 1.2 — p F ƒ = 1 MHz c a. In accordance with UL 1577, each optocoupler is proof tested by applying an insulation test voltage ≥ 4500 Vrms for 1 second (leakage detection current limit, II-O ≤ 5 µA). This test is performed before the 100% production test for partial discharge (method b) shown in IEC/EN/DIN EN 60747-5-5 Insulation Characteristics Table. b. The Input-Output Momentary Withstand Voltage is a dielectric voltage rating that should not be interpreted as an input-output continuous voltage rating. For the continuous voltage rating, refer to the IEC/EN/DIN EN 60747-5-5 Insulation Characteristics Table and your equipment level safety specification. c. This is a two-terminal measurement: pins 1–4 are shorted together and pins 5–8 are shorted together.
Figure 2: Input Offset Voltage Test Circuit VDD1 VDD2 +15 V 0.1 μF 1 8 0.1 μF 2 7 10 kΩ + HCPL-7800 VOUT 0.1 μF 3 6 10 kΩ - AD624CD GAIN = 100 4 5 0.1 μF 0.47 0.47 μF μF -15 V Figure 3: Input Offset Voltage vs. Temperature Figure 4: Input Offset vs. Supply 0.8 0.39 vs. VDD1 0.7 0.38 vs. VDD2 0.6 0.37 0.5 0.36 0.4 0.35 - INPUT OFFSET VOLTAGE - mV - INPUT OFFSET VOLTAGE - mV V OS 0.3 V OS 0.34 0.2 0.33 -55 -25 5 35 65 95 125 4.5 4.75 5.0 5.25 5.5 TA - TEMPERATURE - °C VDD - SUPPLY VOLTAGE - V
