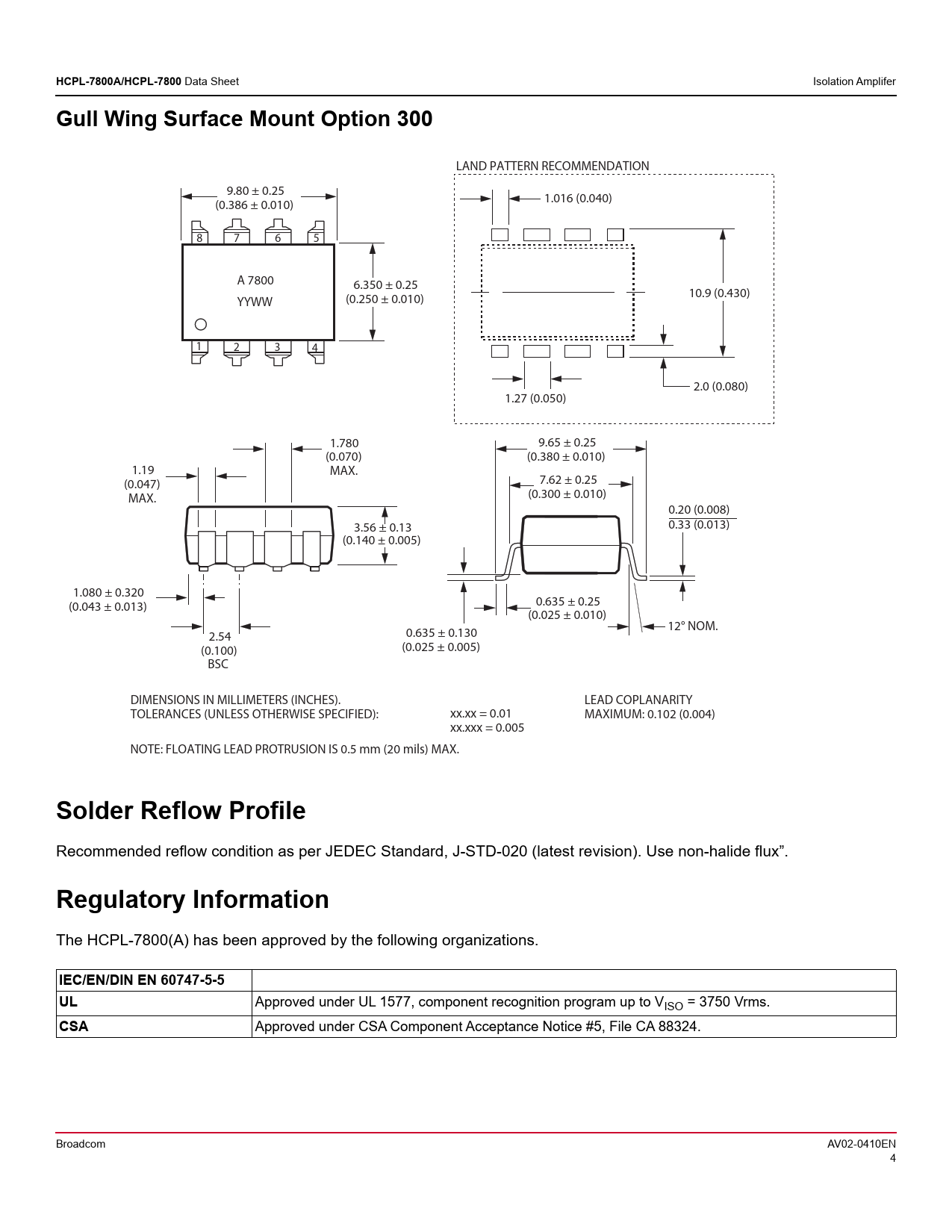

HCPL-7800A/HCPL-7800
Data Sheet Isolation Amplifer
Gull Wing Surface Mount Option 300
LAND PATTERN RECOMMENDATION 9.80 ± 0.25 (0.386 ± 0.010) 1.016 (0.040) 8 7 6 5 A 7800 6.350 ± 0.25 YYWW (0.250 ± 0.010) 10.9 (0.430) 1 2 3 4 2.0 (0.080) 1.27 (0.050) 1.780 9.65 ± 0.25 (0.070) (0.380 ± 0.010) 1.19 MAX. 7.62 ± 0.25 (0.047) (0.300 ± 0.010) MAX. 0.20 (0.008) 3.56 ± 0.13 0.33 (0.013) (0.140 ± 0.005) 1.080 ± 0.320 0.635 ± 0.25 (0.043 ± 0.013) (0.025 ± 0.010) 12° NOM. 0.635 ± 0.130 2.54 (0.025 ± 0.005) (0.100) BSC DIMENSIONS IN MILLIMETERS (INCHES). LEAD COPLANARITY TOLERANCES (UNLESS OTHERWISE SPECIFIED): xx.xx = 0.01 MAXIMUM: 0.102 (0.004) xx.xxx = 0.005 NOTE: FLOATING LEAD PROTRUSION IS 0.5 mm (20 mils) MAX.
Solder Reflow Profile
Recommended reflow condition as per JEDEC Standard, J-STD-020 (latest revision). Use non-halide flux”.
Regulatory Information
The HCPL-7800(A) has been approved by the following organizations.
IEC/EN/DIN EN 60747-5-5 UL
Approved under UL 1577, component recognition program up to VISO = 3750 Vrms.
CSA
Approved under CSA Component Acceptance Notice #5, File CA 88324. Broadcom AV02-0410EN 4 Document Outline Description Features Applications Functional Diagram Ordering Information Package Outline Drawings Standard DIP Package Gull Wing Surface Mount Option 300 Solder Reflow Profile Regulatory Information IEC/EN/DIN EN 60747-5-5 Insulation Characteristics Insulation and Safety-Related Specifications Absolute Maximum Ratings Recommended Operating Conditions DC Electrical Specifications AC Electrical Specifications Package Characteristics Application Information Power Supplies and Bypassing PC Board Layout Current Sensing Resistors Sense Resistor Connections Output Side Frequently Asked Questions about the HCPL-7800(A) Basics Sense Resistor and Input Filter Isolation and Insulation Accuracy Power Supplies and Start-Up Miscellaneous
