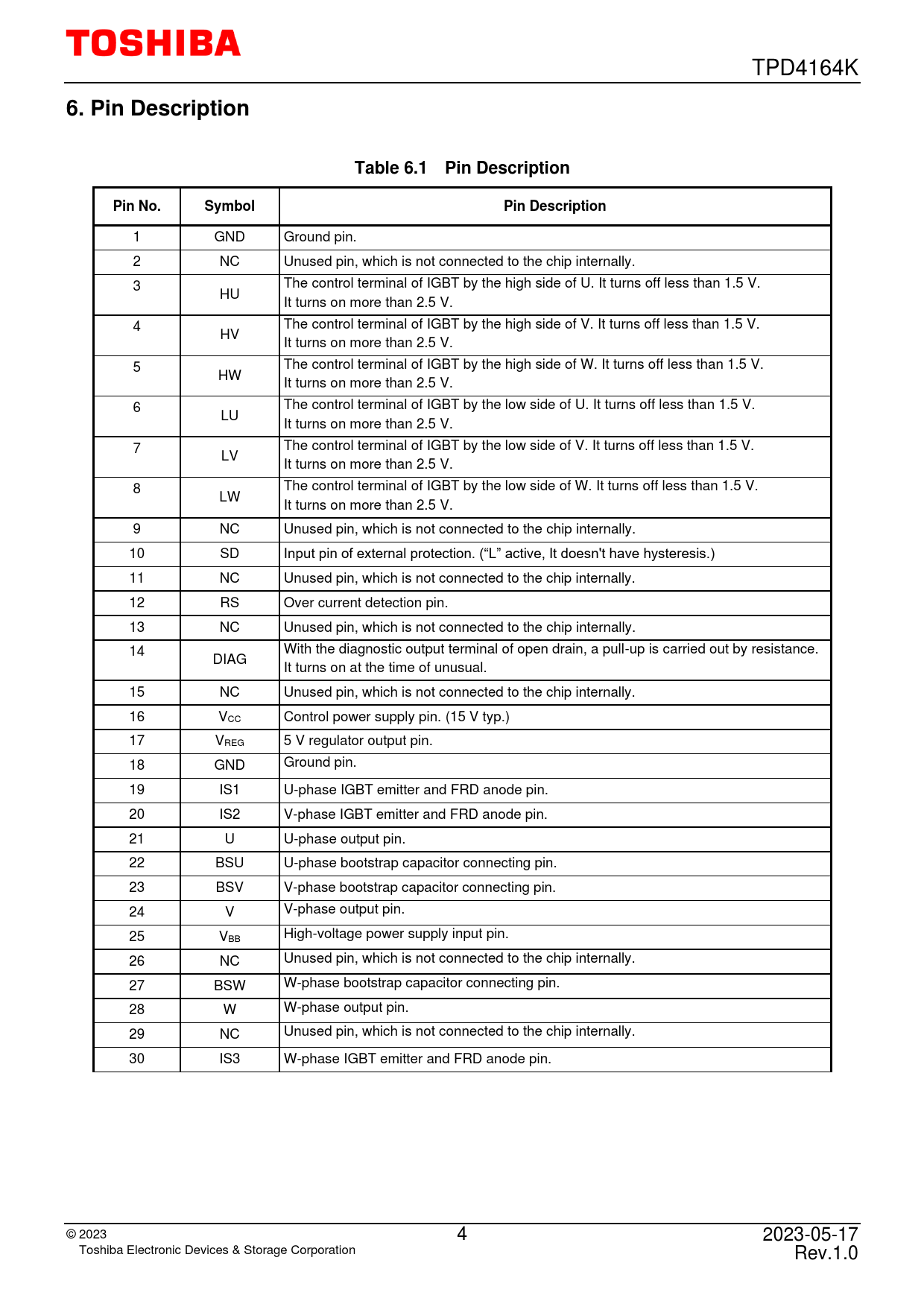

6. Pin Description. Table 6.1 Pin Description. Pin No. Symbol. Pin Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
TPD4164K
6. Pin Description Table 6.1 Pin Description Pin No. Symbol Pin Description
1 GND Ground pin. 2 NC Unused pin, which is not connected to the chip internally. 3 The control terminal of IGBT by the high side of U. It turns off less than 1.5 V. HU It turns on more than 2.5 V. 4 The control terminal of IGBT by the high side of V. It turns off less than 1.5 V. HV It turns on more than 2.5 V. 5 The control terminal of IGBT by the high side of W. It turns off less than 1.5 V. HW It turns on more than 2.5 V. 6 The control terminal of IGBT by the low side of U. It turns off less than 1.5 V. LU It turns on more than 2.5 V. 7 The control terminal of IGBT by the low side of V. It turns off less than 1.5 V. LV It turns on more than 2.5 V. 8 The control terminal of IGBT by the low side of W. It turns off less than 1.5 V. LW It turns on more than 2.5 V. 9 NC Unused pin, which is not connected to the chip internally. 10 SD Input pin of external protection. (“L” active, It doesn't have hysteresis.) 11 NC Unused pin, which is not connected to the chip internally. 12 RS Over current detection pin. 13 NC Unused pin, which is not connected to the chip internally. 14 With the diagnostic output terminal of open drain, a pull-up is carried out by resistance. DIAG It turns on at the time of unusual. 15 NC Unused pin, which is not connected to the chip internally. 16 VCC Control power supply pin. (15 V typ.) 17 VREG 5 V regulator output pin. 18 GND Ground pin. 19 IS1 U-phase IGBT emitter and FRD anode pin. 20 IS2 V-phase IGBT emitter and FRD anode pin. 21 U U-phase output pin. 22 BSU U-phase bootstrap capacitor connecting pin. 23 BSV V-phase bootstrap capacitor connecting pin. 24 V V-phase output pin. 25 VBB High-voltage power supply input pin. 26 NC Unused pin, which is not connected to the chip internally. 27 BSW W-phase bootstrap capacitor connecting pin. 28 W W-phase output pin. 29 NC Unused pin, which is not connected to the chip internally. 30 IS3 W-phase IGBT emitter and FRD anode pin. © 20 23 4 2023-05-17 Toshiba Electronic Devices & Storage Corporation Rev.1.0
6. Pin Description Table 6.1 Pin Description Pin No. Symbol Pin Description
1 GND Ground pin. 2 NC Unused pin, which is not connected to the chip internally. 3 The control terminal of IGBT by the high side of U. It turns off less than 1.5 V. HU It turns on more than 2.5 V. 4 The control terminal of IGBT by the high side of V. It turns off less than 1.5 V. HV It turns on more than 2.5 V. 5 The control terminal of IGBT by the high side of W. It turns off less than 1.5 V. HW It turns on more than 2.5 V. 6 The control terminal of IGBT by the low side of U. It turns off less than 1.5 V. LU It turns on more than 2.5 V. 7 The control terminal of IGBT by the low side of V. It turns off less than 1.5 V. LV It turns on more than 2.5 V. 8 The control terminal of IGBT by the low side of W. It turns off less than 1.5 V. LW It turns on more than 2.5 V. 9 NC Unused pin, which is not connected to the chip internally. 10 SD Input pin of external protection. (“L” active, It doesn't have hysteresis.) 11 NC Unused pin, which is not connected to the chip internally. 12 RS Over current detection pin. 13 NC Unused pin, which is not connected to the chip internally. 14 With the diagnostic output terminal of open drain, a pull-up is carried out by resistance. DIAG It turns on at the time of unusual. 15 NC Unused pin, which is not connected to the chip internally. 16 VCC Control power supply pin. (15 V typ.) 17 VREG 5 V regulator output pin. 18 GND Ground pin. 19 IS1 U-phase IGBT emitter and FRD anode pin. 20 IS2 V-phase IGBT emitter and FRD anode pin. 21 U U-phase output pin. 22 BSU U-phase bootstrap capacitor connecting pin. 23 BSV V-phase bootstrap capacitor connecting pin. 24 V V-phase output pin. 25 VBB High-voltage power supply input pin. 26 NC Unused pin, which is not connected to the chip internally. 27 BSW W-phase bootstrap capacitor connecting pin. 28 W W-phase output pin. 29 NC Unused pin, which is not connected to the chip internally. 30 IS3 W-phase IGBT emitter and FRD anode pin. © 20 23 4 2023-05-17 Toshiba Electronic Devices & Storage Corporation Rev.1.0
