Datasheet KA-3528SURC (Kingbright) - 4
| Fabricante | Kingbright |
| Descripción | 3.5x2.8 mm SMD Chip LED Lamp |
| Páginas / Página | 4 / 4 — KA-3528SURC. Recommended Soldering Pattern (Units : mm). Tape … |
| Formato / tamaño de archivo | PDF / 137 Kb |
| Idioma del documento | Inglés |
KA-3528SURC. Recommended Soldering Pattern (Units : mm). Tape Specifications (Units : mm). SPEC NO:. REV NO: V.11
Línea de modelo para esta hoja de datos
Versión de texto del documento

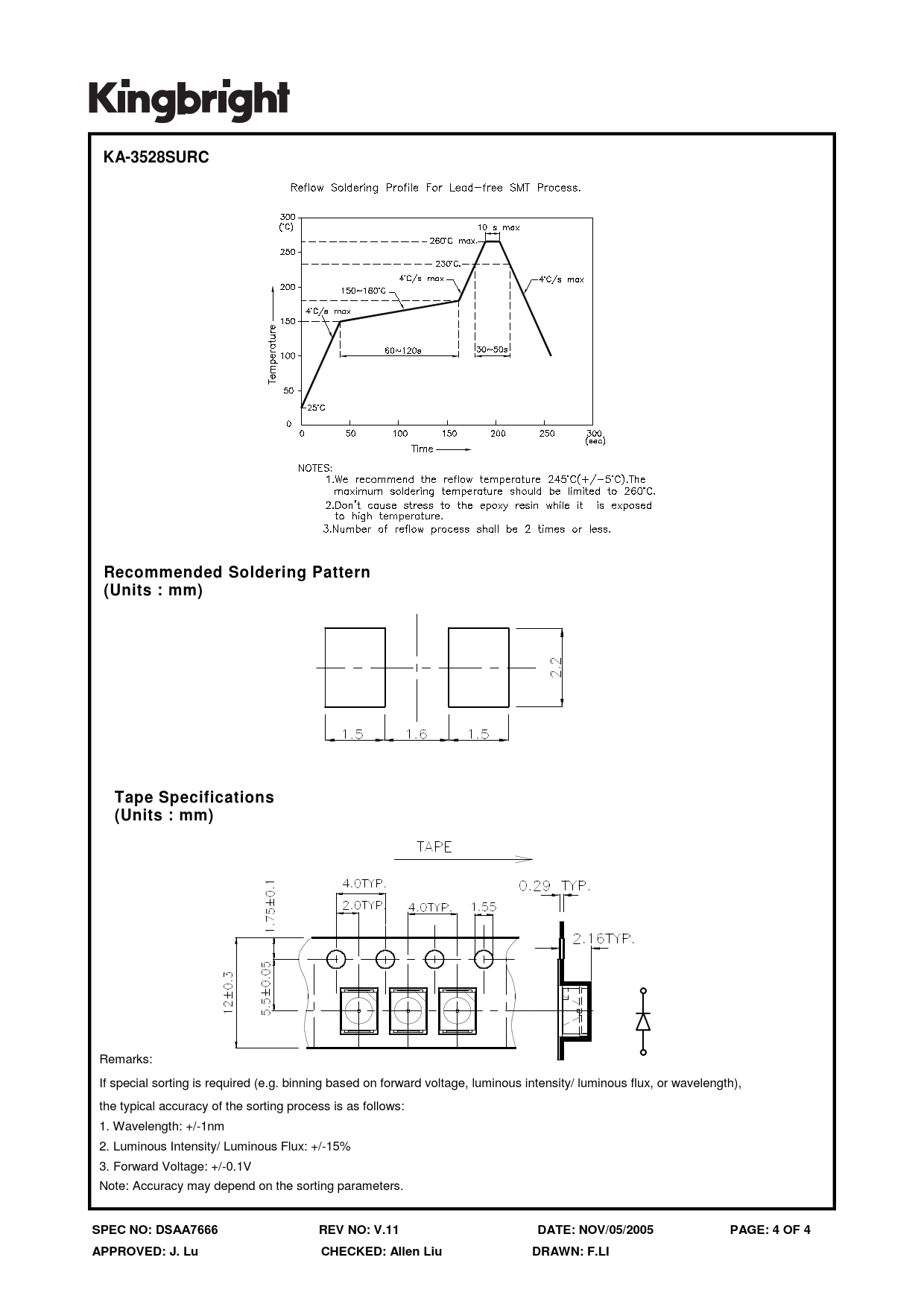

KA-3528SURC Recommended Soldering Pattern (Units : mm) Tape Specifications (Units : mm)
Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity/ Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters.
SPEC NO:
'6$$
REV NO: V.11 DATE: NOV/05/2005 PAGE: 4 OF 4 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: F.LI
Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity/ Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters.
SPEC NO:
'6$$
REV NO: V.11 DATE: NOV/05/2005 PAGE: 4 OF 4 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: F.LI
