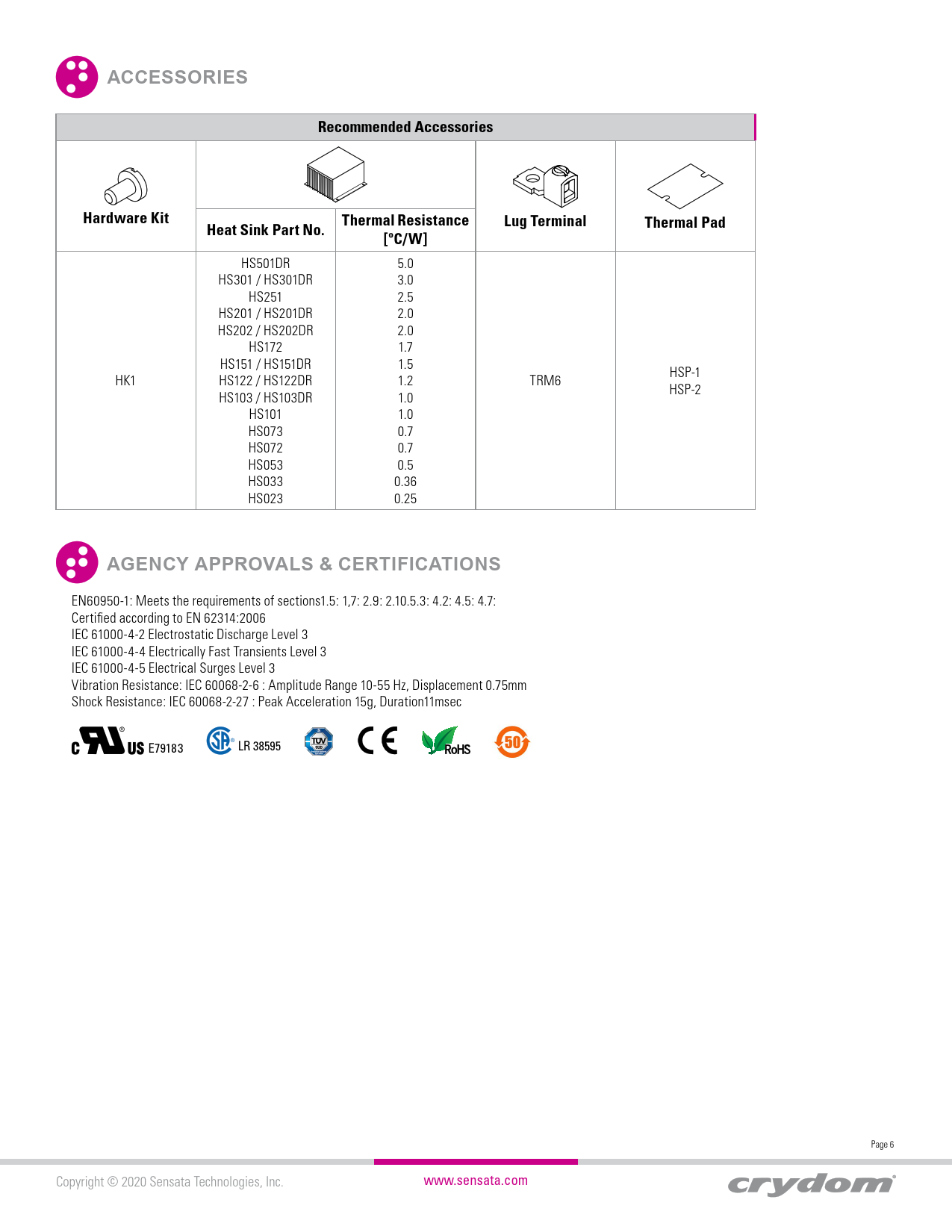

ACCESSORIES. Recommended Accessories. Hardware Kit. Lug Terminal. Thermal Pad. Heat Sink Part No. Thermal Resistance. [ºC/W]
Línea de modelo para esta hoja de datos
Versión de texto del documento
ACCESSORIES Recommended Accessories Hardware Kit Lug Terminal Thermal Pad Heat Sink Part No. Thermal Resistance [ºC/W]
HS501DR 5.0 HS301 / HS301DR 3.0 HS251 2.5 HS201 / HS201DR 2.0 HS202 / HS202DR 2.0 HS172 1.7 HS151 / HS151DR 1.5 HK1 HS122 / HS122DR 1.2 TRM6 HSP-1 HS103 / HS103DR 1.0 HSP-2 HS101 1.0 HS073 0.7 HS072 0.7 HS053 0.5 HS033 0.36 HS023 0.25
AGENCY APPROVALS & CERTIFICATIONS
EN60950-1: Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7: Certified according to EN 62314:2006 IEC 61000-4-2 Electrostatic Discharge Level 3 IEC 61000-4-4 Electrical y Fast Transients Level 3 IEC 61000-4-5 Electrical Surges Level 3 Vibration Resistance: IEC 60068-2-6 : Amplitude Range 10-55 Hz, Displacement 0.75mm Shock Resistance: IEC 60068-2-27 : Peak Acceleration 15g, Duration11msec E79183 LR 38595 Page 6 Copyright © 2020 Sensata Technologies, Inc. www.sensata.com
