Datasheet TL072, TL072A, TL072B (STMicroelectronics) - 7
| Fabricante | STMicroelectronics |
| Descripción | Low Noise JFET Dual Operational Amplifiers |
| Páginas / Página | 16 / 7 — TL072, TL072A, TL072B. Electrical characteristics |
| Formato / tamaño de archivo | PDF / 515 Kb |
| Idioma del documento | Inglés |
TL072, TL072A, TL072B. Electrical characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
TL072, TL072A, TL072B Electrical characteristics

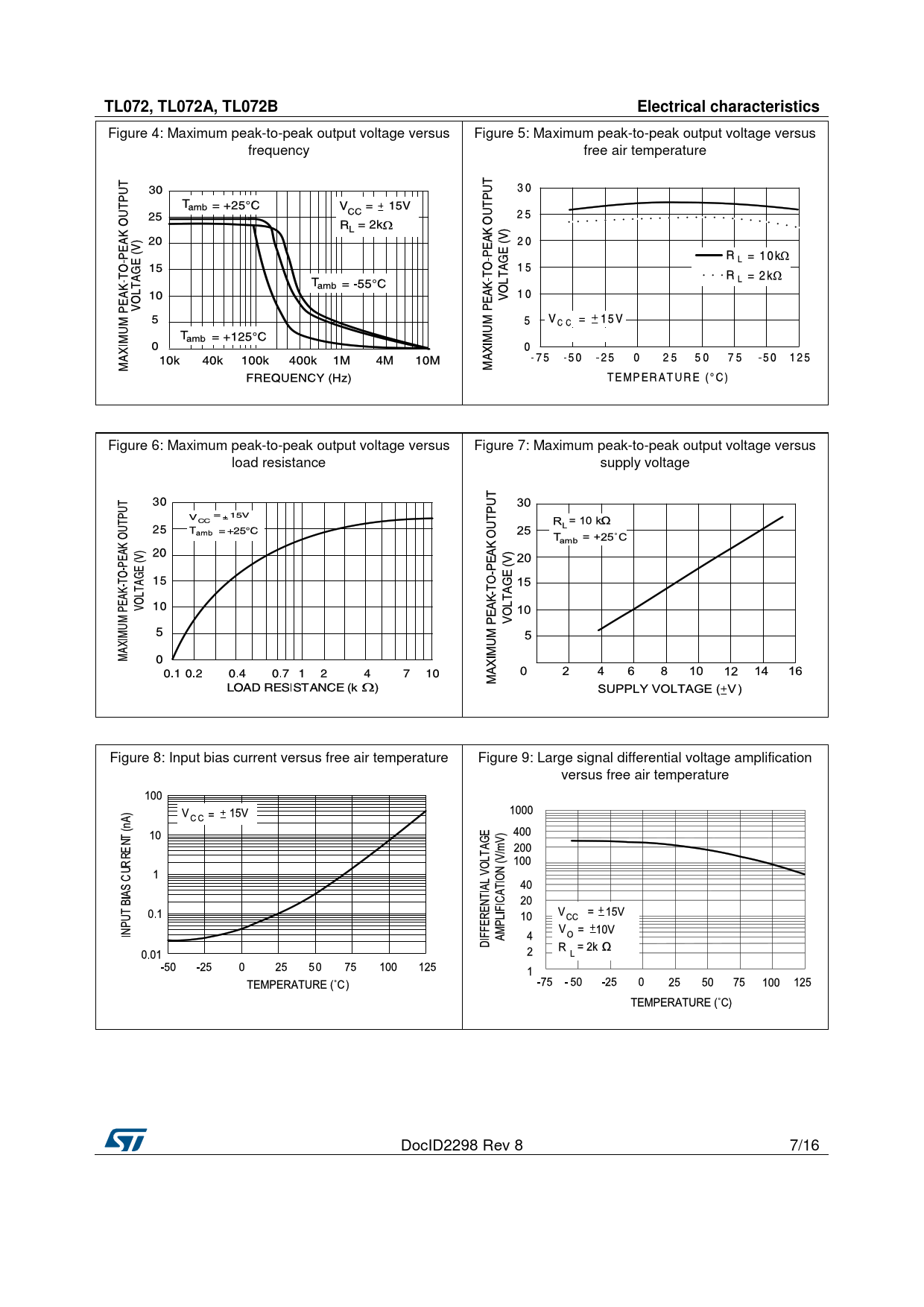

Figure 4: Maximum peak-to-peak output voltage versus Figure 5: Maximum peak-to-peak output voltage versus frequency free air temperature Figure 6: Maximum peak-to-peak output voltage versus Figure 7: Maximum peak-to-peak output voltage versus load resistance supply voltage Figure 8: Input bias current versus free air temperature Figure 9: Large signal differential voltage amplification versus free air temperature DocID2298 Rev 8 7/16 Document Outline 1 Schematic diagram 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Parameter measurement information 5 Typical application 6 Package information 6.1 SO8 package information 7 Ordering information 8 Revision history
