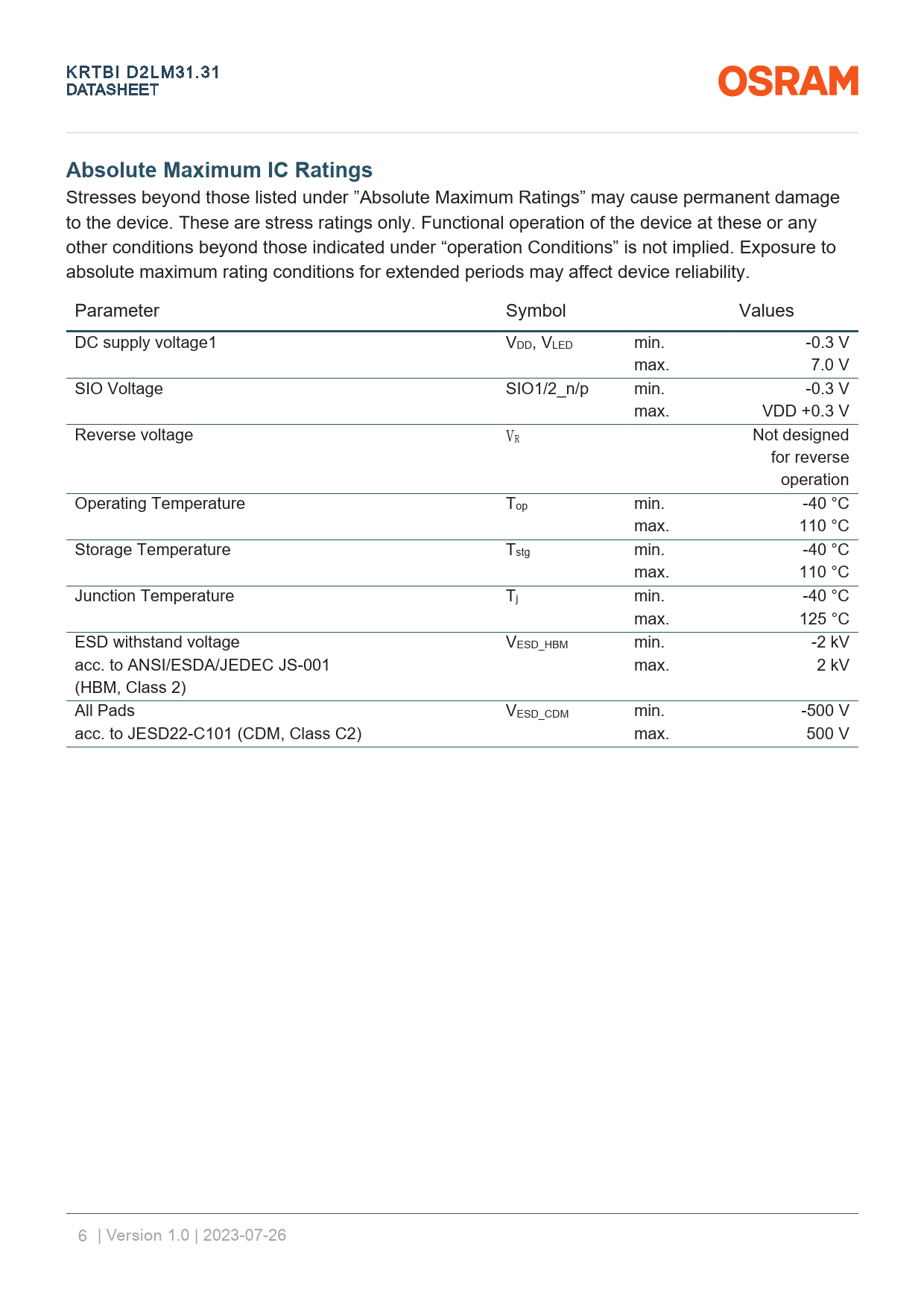

KRTBI D2LM31.31 DATA A SHEET
Absolute Maximum IC Ratings
Stresses beyond those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only. Functional operation of the device at these or any other conditions beyond those indicated under “operation Conditions” is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Parameter Symbol Values DC supply voltage1 VDD, VLED min. -0.3 V max. 7.0 V SIO Voltage SIO1/2_n/p min. -0.3 V max. VDD +0.3 V Reverse voltage VR Not designed for reverse operation Operating Temperature Top min. -40 °C max. 110 °C Storage Temperature Tstg min. -40 °C max. 110 °C Junction Temperature Tj min. -40 °C max. 125 °C ESD withstand voltage VESD_HBM min. -2 kV acc. to ANSI/ESDA/JEDEC JS-001 max. 2 kV (HBM, Class 2) All Pads VESD_CDM min. -500 V acc. to JESD22-C101 (CDM, Class C2) max. 500 V 6 | Version 1.0 | 2023-07-26
