Datasheet DD311 (SiTI) - 8
| Fabricante | SiTI |
| Descripción | High Constant Current Led Driver |
| Páginas / Página | 15 / 8 — SILICON TOUCH TECHNOLOGY INC. DD311. LED. bias. ILED. HIGH CONSTANT … |
| Formato / tamaño de archivo | PDF / 432 Kb |
| Idioma del documento | Inglés |

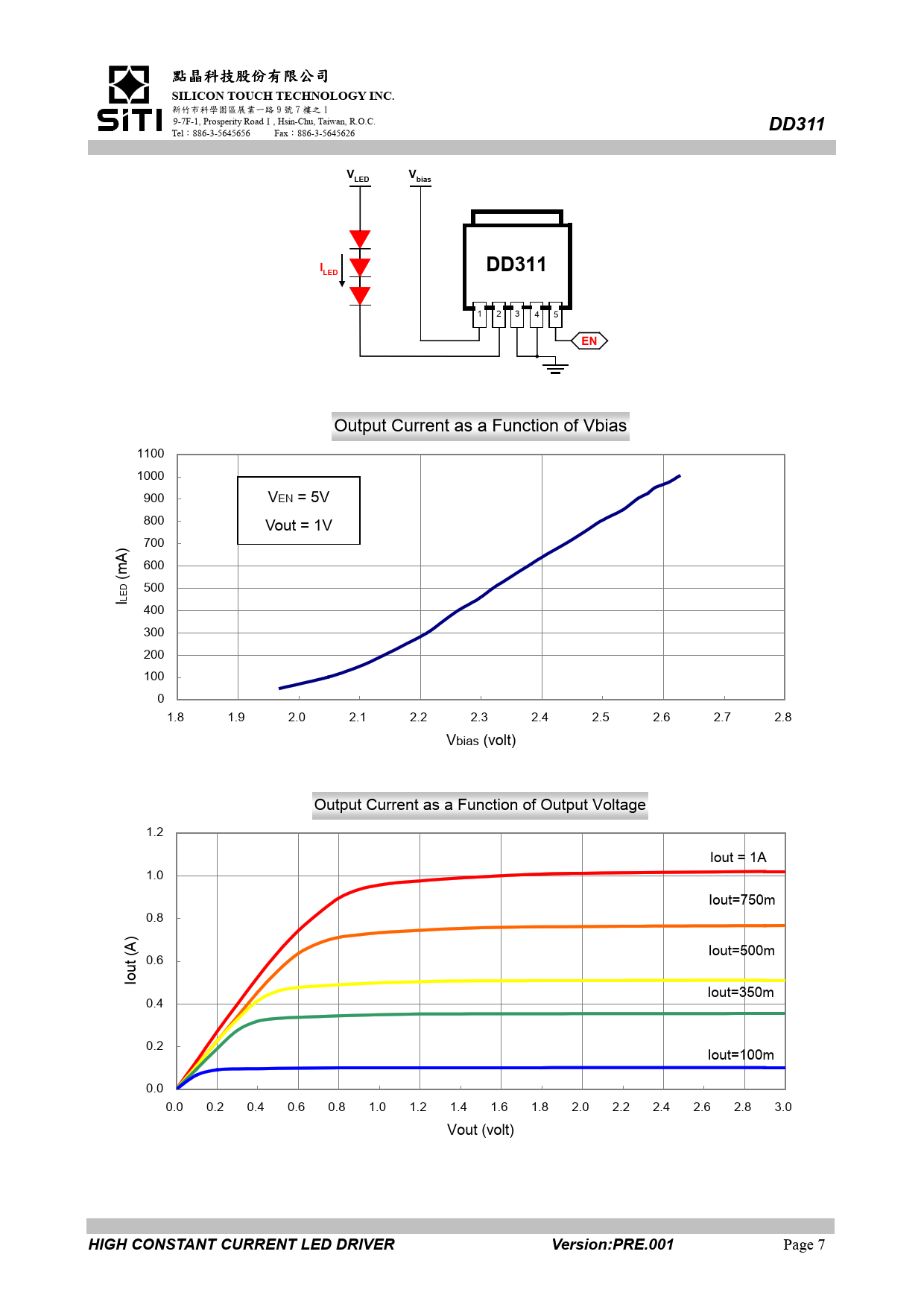

SILICON TOUCH TECHNOLOGY INC. DD311. LED. bias. ILED. HIGH CONSTANT CURRENT LED DRIVER. Version:PRE.001
Línea de modelo para esta hoja de datos
Versión de texto del documento
點晶科技股份有限公司
SILICON TOUCH TECHNOLOGY INC
. 新竹市科學園區展業一路 9 號 7 樓之 1 9-7F-1, Prosperity RoadⅠ, Hsin-Chu, Taiwan, R.O.C.
DD311
Tel：886-3-5645656 Fax：886-3-5645626
V V LED bias ILED DD311
1 2 3 4 5
EN
Output Current as a Function of Vbias 1100 1000 900 VEN = 5V 800 Vout = 1V 700 ) A 600 (mD 500 LE I 400 300 200 100 0 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 Vbias (volt) Output Current as a Function of Output Voltage 1.2 Iout = 1A 1.0 Iout=750m 0.8 Iout=500m 0.6 Iout (A) Iout=350m 0.4 0.2 Iout=100m 0.0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 Vout (volt)
HIGH CONSTANT CURRENT LED DRIVER Version:PRE.001
Page 7
SILICON TOUCH TECHNOLOGY INC
. 新竹市科學園區展業一路 9 號 7 樓之 1 9-7F-1, Prosperity RoadⅠ, Hsin-Chu, Taiwan, R.O.C.
DD311
Tel：886-3-5645656 Fax：886-3-5645626
V V LED bias ILED DD311
1 2 3 4 5
EN
Output Current as a Function of Vbias 1100 1000 900 VEN = 5V 800 Vout = 1V 700 ) A 600 (mD 500 LE I 400 300 200 100 0 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 Vbias (volt) Output Current as a Function of Output Voltage 1.2 Iout = 1A 1.0 Iout=750m 0.8 Iout=500m 0.6 Iout (A) Iout=350m 0.4 0.2 Iout=100m 0.0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 Vout (volt)
HIGH CONSTANT CURRENT LED DRIVER Version:PRE.001
Page 7
