SILICON TOUCH TECHNOLOGY INC. DD311. Maximum Ratings. Recommended Operating Condition. HIGH CONSTANT CURRENT LED DRIVER
Línea de modelo para esta hoja de datos
Versión de texto del documento
點晶科技股份有限公司
SILICON TOUCH TECHNOLOGY INC
. 新竹市科學園區展業一路 9 號 7 樓之 1 9-7F-1, Prosperity RoadⅠ, Hsin-Chu, Taiwan, R.O.C.
DD311
Tel：886-3-5645656 Fax：886-3-5645626

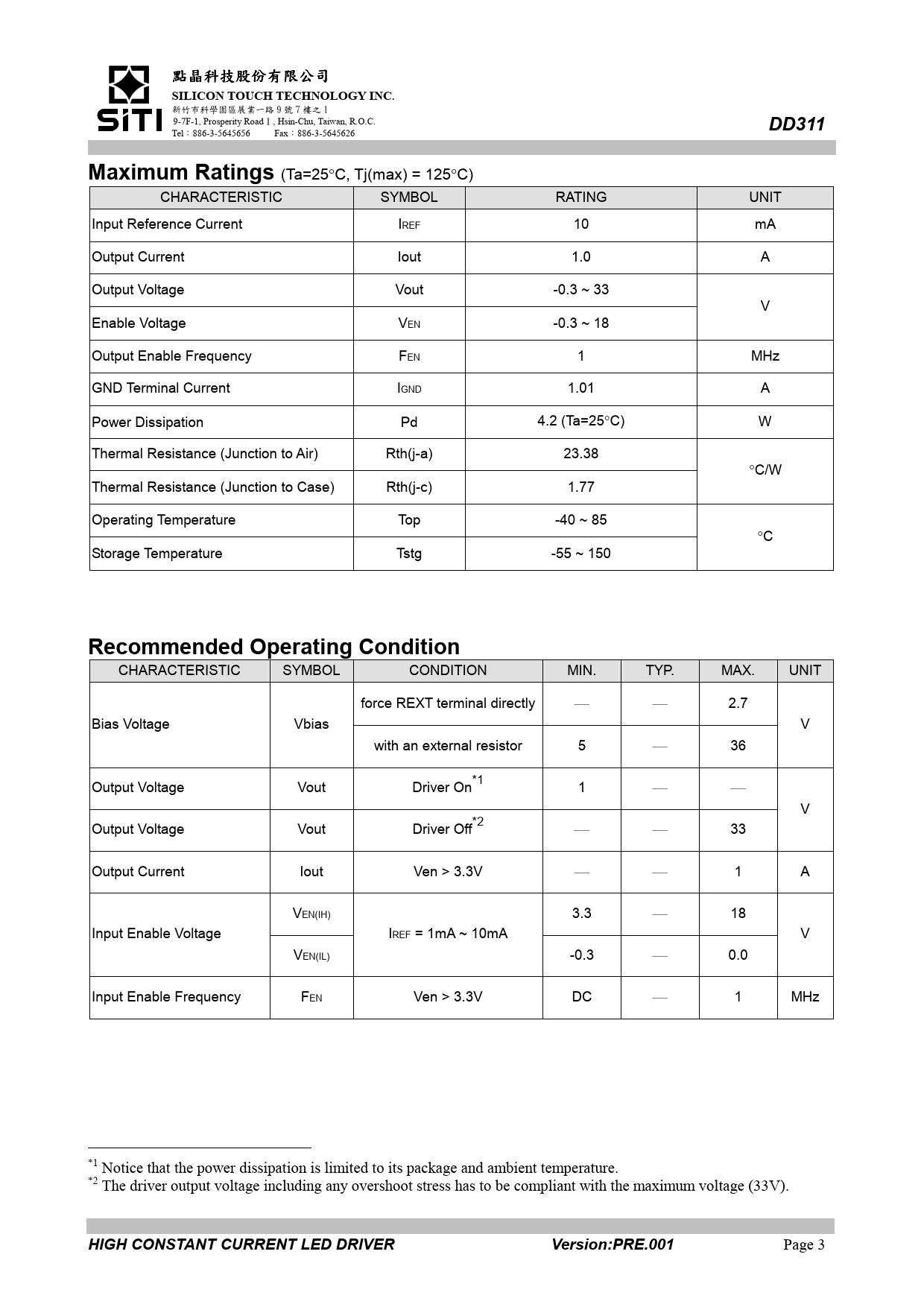

Maximum Ratings
(Ta=25°C, Tj(max) = 125°C) CHARACTERISTIC SYMBOL RATING UNIT Input Reference Current IREF 10 mA Output Current Iout 1.0 A Output Voltage Vout -0.3 ~ 33 V Enable Voltage VEN -0.3 ~ 18 Output Enable Frequency FEN 1 MHz GND Terminal Current IGND 1.01 A Power Dissipation Pd 4.2 (Ta=25°C) W Thermal Resistance (Junction to Air) Rth(j-a) 23.38 °C/W Thermal Resistance (Junction to Case) Rth(j-c) 1.77 Operating Temperature Top -40 ~ 85 °C Storage Temperature Tstg -55 ~ 150
Recommended Operating Condition
CHARACTERISTIC SYMBOL CONDITION MIN. TYP. MAX. UNIT force REXT terminal directly 2.7 Bias Voltage Vbias V with an external resistor 5 36 *1 Output Voltage Vout Driver On 1 V *2 Output Voltage Vout Driver Off 33 Output Current Iout Ven > 3.3V 1 A VEN(IH) 3.3 18 Input Enable Voltage IREF = 1mA ~ 10mA V VEN(IL) -0.3 0.0 Input Enable Frequency FEN Ven > 3.3V DC 1 MHz *1 Notice that the power dissipation is limited to its package and ambient temperature. *2 The driver output voltage including any overshoot stress has to be compliant with the maximum voltage (33V).
HIGH CONSTANT CURRENT LED DRIVER Version:PRE.001
Page 3
SILICON TOUCH TECHNOLOGY INC
. 新竹市科學園區展業一路 9 號 7 樓之 1 9-7F-1, Prosperity RoadⅠ, Hsin-Chu, Taiwan, R.O.C.
DD311
Tel：886-3-5645656 Fax：886-3-5645626
Maximum Ratings
(Ta=25°C, Tj(max) = 125°C) CHARACTERISTIC SYMBOL RATING UNIT Input Reference Current IREF 10 mA Output Current Iout 1.0 A Output Voltage Vout -0.3 ~ 33 V Enable Voltage VEN -0.3 ~ 18 Output Enable Frequency FEN 1 MHz GND Terminal Current IGND 1.01 A Power Dissipation Pd 4.2 (Ta=25°C) W Thermal Resistance (Junction to Air) Rth(j-a) 23.38 °C/W Thermal Resistance (Junction to Case) Rth(j-c) 1.77 Operating Temperature Top -40 ~ 85 °C Storage Temperature Tstg -55 ~ 150
Recommended Operating Condition
CHARACTERISTIC SYMBOL CONDITION MIN. TYP. MAX. UNIT force REXT terminal directly 2.7 Bias Voltage Vbias V with an external resistor 5 36 *1 Output Voltage Vout Driver On 1 V *2 Output Voltage Vout Driver Off 33 Output Current Iout Ven > 3.3V 1 A VEN(IH) 3.3 18 Input Enable Voltage IREF = 1mA ~ 10mA V VEN(IL) -0.3 0.0 Input Enable Frequency FEN Ven > 3.3V DC 1 MHz *1 Notice that the power dissipation is limited to its package and ambient temperature. *2 The driver output voltage including any overshoot stress has to be compliant with the maximum voltage (33V).
HIGH CONSTANT CURRENT LED DRIVER Version:PRE.001
Page 3
