Datasheet ALD1106, ALD1116 (Advanced Linear Devices) - 6
| Fabricante | Advanced Linear Devices |
| Descripción | Quad/Dual N-Channel Matched Pair Mosfet Array |
| Páginas / Página | 9 / 6 — SOIC-8 PACKAGE DRAWING. 8 Pin Plastic SOIC Package. Millimeters. Inches. … |
| Formato / tamaño de archivo | PDF / 84 Kb |
| Idioma del documento | Inglés |
SOIC-8 PACKAGE DRAWING. 8 Pin Plastic SOIC Package. Millimeters. Inches. Dim. Min. Max. D-8. ALD1106/ALD1116
Línea de modelo para esta hoja de datos
Versión de texto del documento

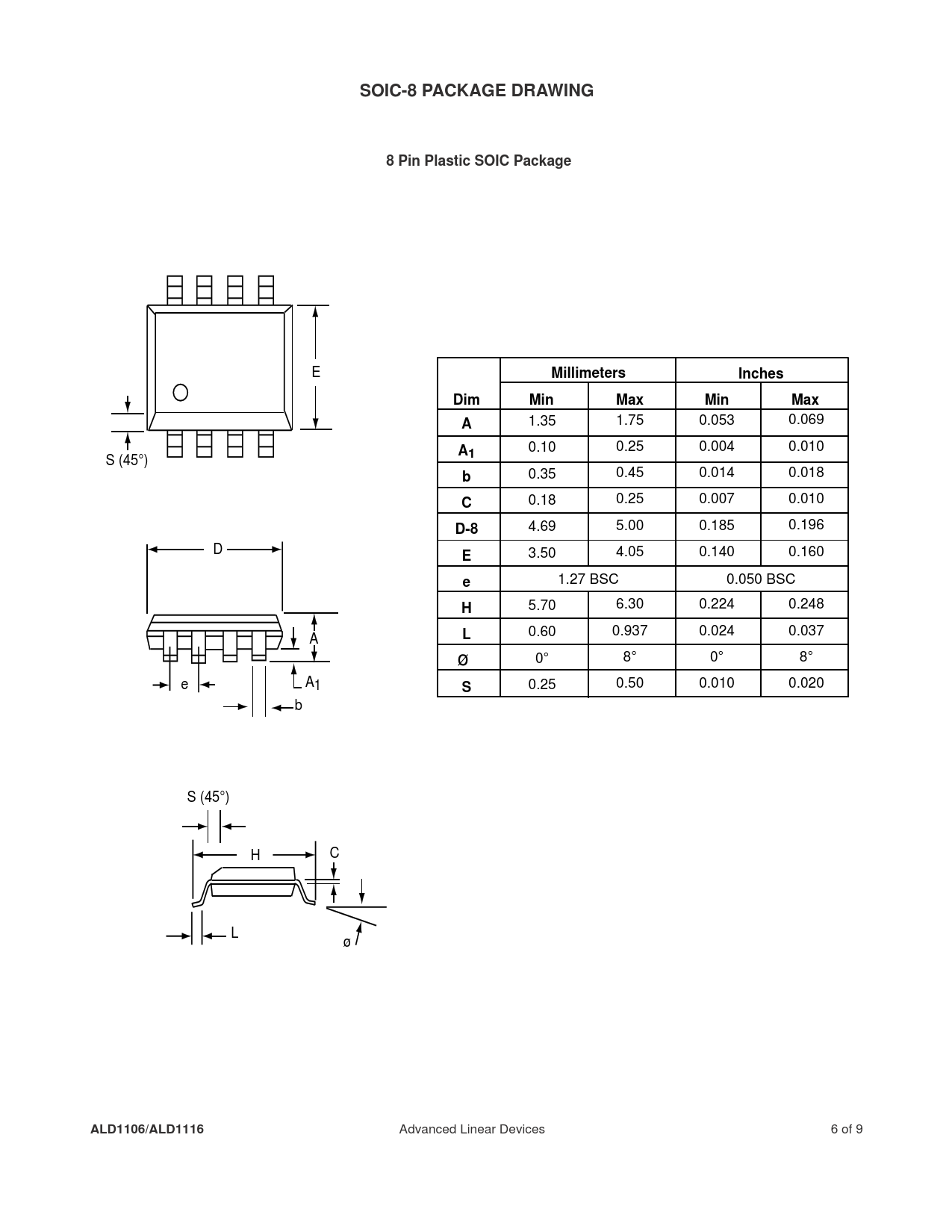

SOIC-8 PACKAGE DRAWING 8 Pin Plastic SOIC Package
E
Millimeters Inches Dim Min Max Min Max A
1.35 1.75 0.053 0.069
A
0.10 0.25 0.004 0.010
1
S (45°)
b
0.35 0.45 0.014 0.018
C
0.18 0.25 0.007 0.010
D-8
4.69 5.00 0.185 0.196 D
E
3.50 4.05 0.140 0.160
e
1.27 BSC 0.050 BSC
H
5.70 6.30 0.224 0.248
L
0.60 0.937 0.024 0.037 A ø 0° 8° 0° 8° e A1
S
0.25 0.50 0.010 0.020 b S (45°) H C L ø
ALD1106/ALD1116
Advanced Linear Devices 6 of 9
