Datasheet MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204 (ON Semiconductor)
| Fabricante | ON Semiconductor |
| Descripción | Low Voltage, Rail-to-Rail Operational Amplifiers |
| Páginas / Página | 17 / 1 — DATA SHEET. www.onsemi.com. SOIC−8. D, VD SUFFIX. CASE 751. Micro8. DM … |
| Formato / tamaño de archivo | PDF / 521 Kb |
| Idioma del documento | Inglés |
DATA SHEET. www.onsemi.com. SOIC−8. D, VD SUFFIX. CASE 751. Micro8. DM SUFFIX. CASE 846A. SOIC−14. CASE 751A. TSSOP−14. DTB SUFFIX. CASE 948G
Línea de modelo para esta hoja de datos
- MC33201D MC33201DG MC33201DR2 MC33201DR2G MC33201P MC33201PG MC33201VD MC33201VDG MC33201VDR2 MC33201VDR2G
- MC33202D MC33202DG MC33202DMR2 MC33202DMR2G MC33202DR2 MC33202DR2G MC33202P MC33202PG MC33202VD MC33202VDG MC33202VDR2 MC33202VDR2G MC33202VP MC33202VPG
Versión de texto del documento
link to page 10 link to page 10

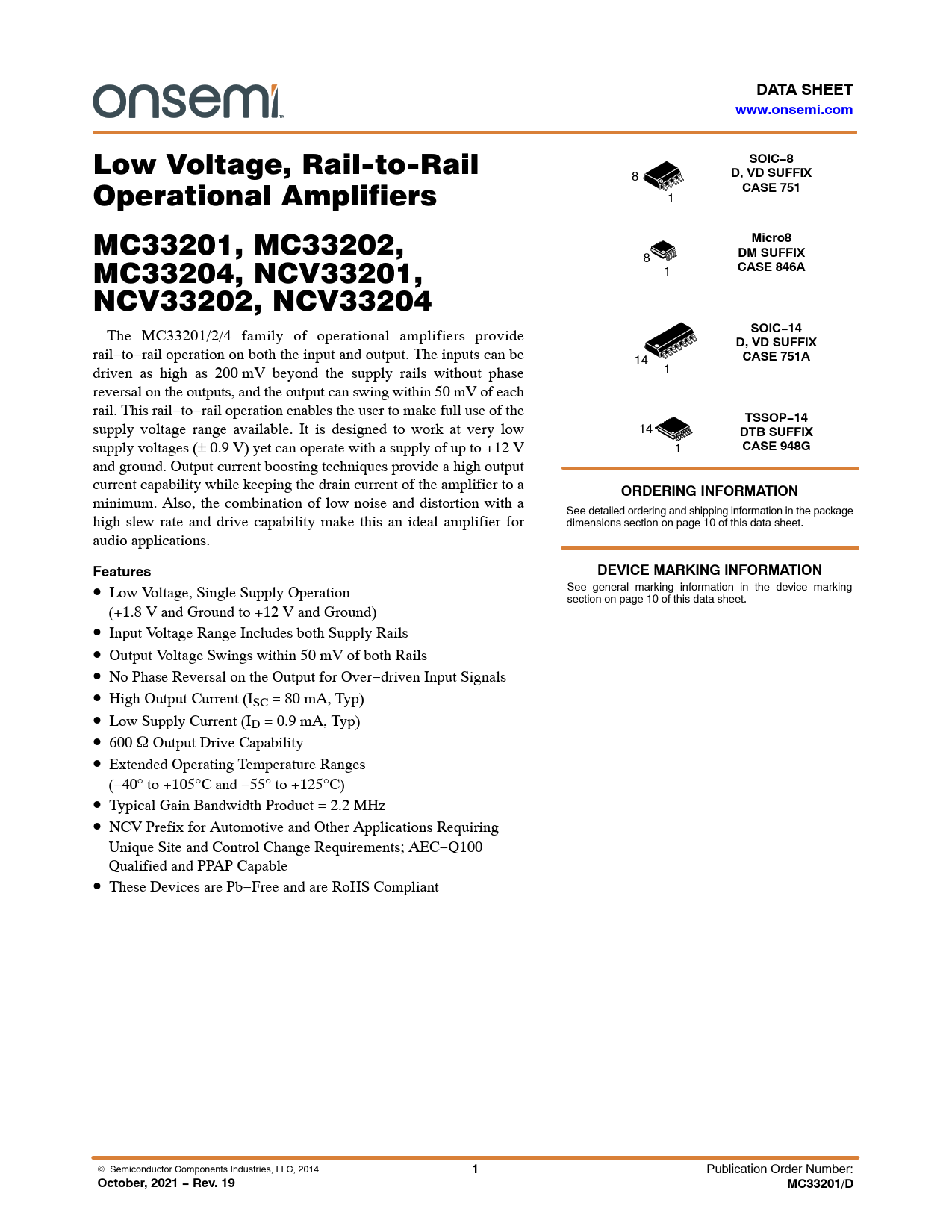

DATA SHEET www.onsemi.com
Low Voltage, Rail-to-Rail
SOIC−8 D, VD SUFFIX
8 Operational Amplifiers
CASE 751
1 MC33201, MC33202,
Micro8 DM SUFFIX
MC33204, NCV33201, 8
CASE 846A
1 NCV33202, NCV33204 The MC33201/2/4 family of operational amplifiers provide
SOIC−14 D, VD SUFFIX
rail−to−rail operation on both the input and output. The inputs can be
CASE 751A
14 driven as high as 200 mV beyond the supply rails without phase 1 reversal on the outputs, and the output can swing within 50 mV of each rail. This rail−to−rail operation enables the user to make full use of the
TSSOP−14
supply voltage range available. It is designed to work at very low 14
DTB SUFFIX
supply voltages (± 0.9 V) yet can operate with a supply of up to +12 V 1
CASE 948G
and ground. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a
ORDERING INFORMATION
minimum. Also, the combination of low noise and distortion with a See detailed ordering and shipping information in the package high slew rate and drive capability make this an ideal amplifier for dimensions section on page 10 of this data sheet. audio applications.
Features DEVICE MARKING INFORMATION
• Low Voltage, Single Supply Operation See general marking information in the device marking section on page 10 of this data sheet. (+1.8 V and Ground to +12 V and Ground) • Input Voltage Range Includes both Supply Rails • Output Voltage Swings within 50 mV of both Rails • No Phase Reversal on the Output for Over−driven Input Signals • High Output Current (ISC = 80 mA, Typ) • Low Supply Current (ID = 0.9 mA, Typ) • 600 W Output Drive Capability • Extended Operating Temperature Ranges (−40° to +105°C and −55° to +125°C) • Typical Gain Bandwidth Product = 2.2 MHz • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devices are Pb−Free and are RoHS Compliant © Semiconductor Components Industries, LLC, 2014
1
Publication Order Number:
October, 2021 − Rev. 19 MC33201/D
DATA SHEET www.onsemi.com
Low Voltage, Rail-to-Rail
SOIC−8 D, VD SUFFIX
8 Operational Amplifiers
CASE 751
1 MC33201, MC33202,
Micro8 DM SUFFIX
MC33204, NCV33201, 8
CASE 846A
1 NCV33202, NCV33204 The MC33201/2/4 family of operational amplifiers provide
SOIC−14 D, VD SUFFIX
rail−to−rail operation on both the input and output. The inputs can be
CASE 751A
14 driven as high as 200 mV beyond the supply rails without phase 1 reversal on the outputs, and the output can swing within 50 mV of each rail. This rail−to−rail operation enables the user to make full use of the
TSSOP−14
supply voltage range available. It is designed to work at very low 14
DTB SUFFIX
supply voltages (± 0.9 V) yet can operate with a supply of up to +12 V 1
CASE 948G
and ground. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a
ORDERING INFORMATION
minimum. Also, the combination of low noise and distortion with a See detailed ordering and shipping information in the package high slew rate and drive capability make this an ideal amplifier for dimensions section on page 10 of this data sheet. audio applications.
Features DEVICE MARKING INFORMATION
• Low Voltage, Single Supply Operation See general marking information in the device marking section on page 10 of this data sheet. (+1.8 V and Ground to +12 V and Ground) • Input Voltage Range Includes both Supply Rails • Output Voltage Swings within 50 mV of both Rails • No Phase Reversal on the Output for Over−driven Input Signals • High Output Current (ISC = 80 mA, Typ) • Low Supply Current (ID = 0.9 mA, Typ) • 600 W Output Drive Capability • Extended Operating Temperature Ranges (−40° to +105°C and −55° to +125°C) • Typical Gain Bandwidth Product = 2.2 MHz • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devices are Pb−Free and are RoHS Compliant © Semiconductor Components Industries, LLC, 2014
1
Publication Order Number:
October, 2021 − Rev. 19 MC33201/D
