Datasheet PVI (International Rectifier) - 4
| Fabricante | International Rectifier |
| Descripción | Photovoltaic Isolator 5-10 Volt Output |
| Páginas / Página | 5 / 4 — Figure 6. Input Current Derating. Figure 7. Input Characteristics. Figure … |
| Formato / tamaño de archivo | PDF / 119 Kb |
| Idioma del documento | Inglés |

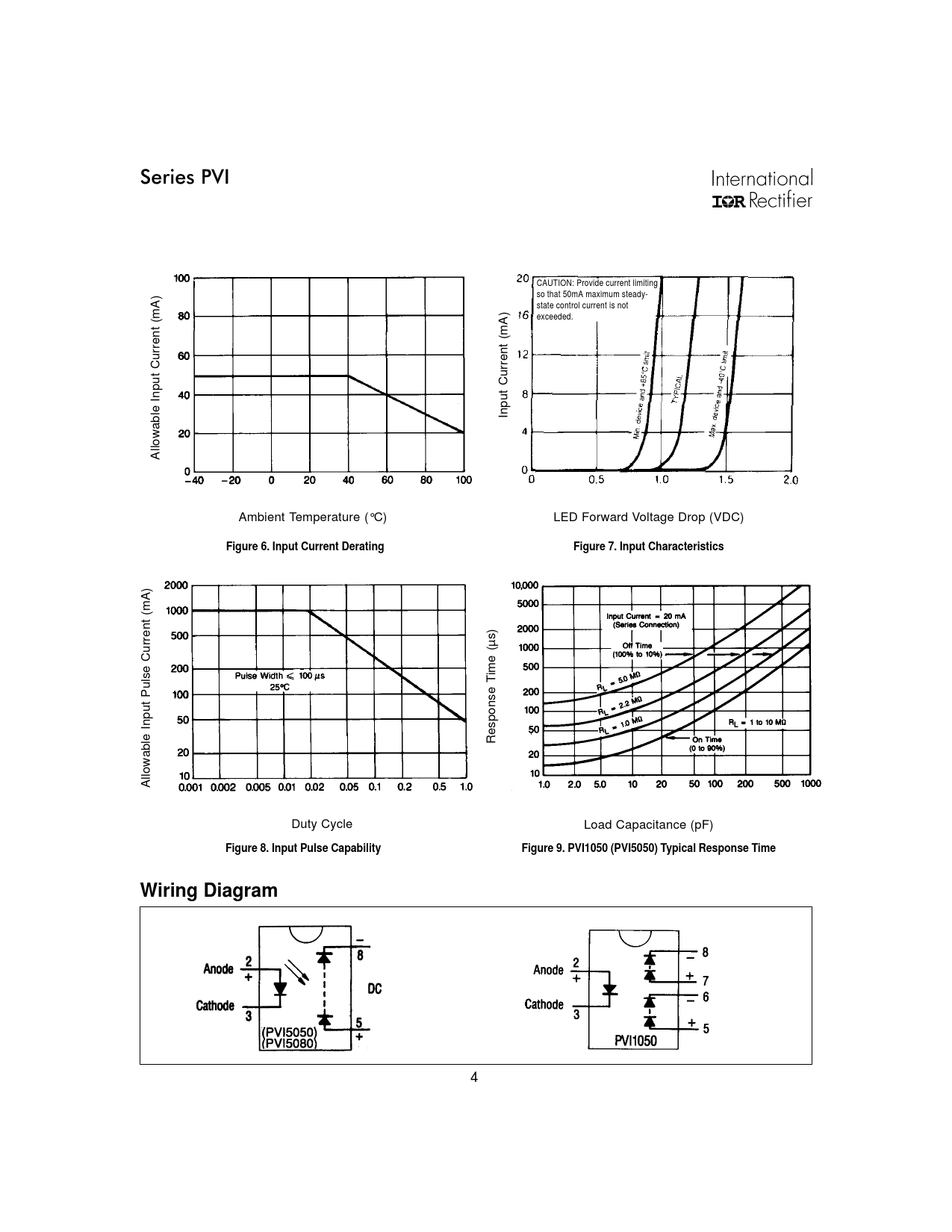

Figure 6. Input Current Derating. Figure 7. Input Characteristics. Figure 8. Input Pulse Capability
Línea de modelo para esta hoja de datos
Versión de texto del documento
Series PVI CAUTION: Provide current limiting so that 50mA maximum steady- state control current is not exceeded. Input Current (mA) Allowable Input Current (mA) Ambient Temperature (°C) LED Forward Voltage Drop (VDC)
Figure 6. Input Current Derating Figure 7. Input Characteristics
ime (µs) Response T Allowable Input Pulse Current (mA) Duty Cycle Load Capacitance (pF)
Figure 8. Input Pulse Capability Figure 9. PVI1050 (PVI5050) Typical Response Time Wiring Diagram
