Datasheet MBR0520L (ON Semiconductor) - 2
| Fabricante | ON Semiconductor |
| Descripción | Schottky Rectifier |
| Páginas / Página | 6 / 2 — MBR0520L. Schottky Rectifier. Features. • 0.5 A, Low Forward Voltage less … |
| Formato / tamaño de archivo | PDF / 282 Kb |
| Idioma del documento | Inglés |
MBR0520L. Schottky Rectifier. Features. • 0.5 A, Low Forward Voltage less than 385 mV. • 400 mW Power Dissipation Package
Línea de modelo para esta hoja de datos
Versión de texto del documento

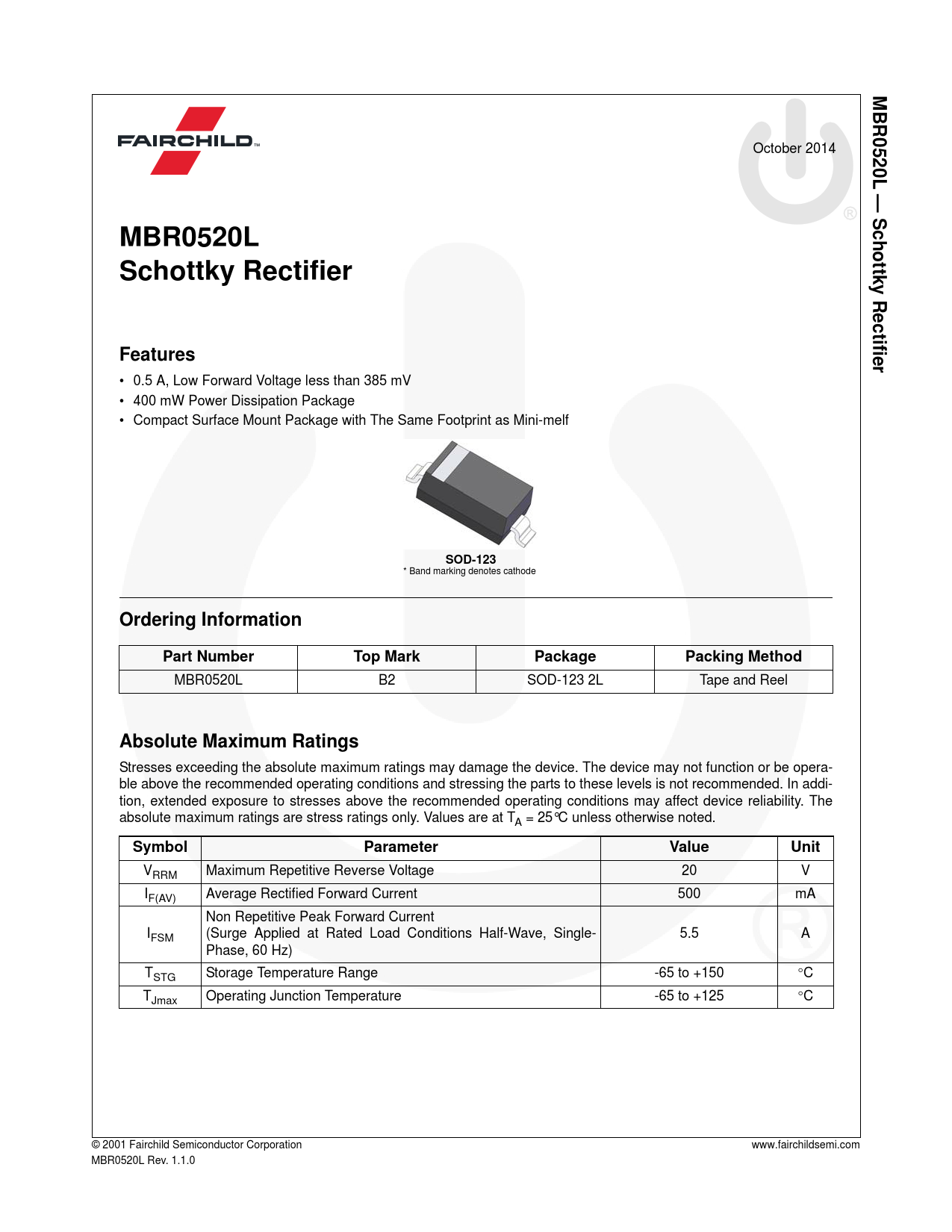

MBR0520L
Schottky Rectifier
Features
• 0.5 A, Low Forward Voltage less than 385 mV
• 400 mW Power Dissipation Package
• Compact Surface Mount Package with The Same Footprint as Mini-melf SOD-123
* Band marking denotes cathode Ordering Information
Part Number Top Mark Package Packing Method MBR0520L B2 SOD-123 2L Tape and Reel Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at TA = 25°C unless otherwise noted. Symbol Value Unit VRRM Maximum Repetitive Reverse Voltage Parameter 20 V IF(AV) Average Rectified Forward Current 500 mA IFSM Non Repetitive Peak Forward Current
(Surge Applied at Rated Load Conditions Half-Wave, SinglePhase, 60 Hz) 5.5 A TSTG Storage Temperature Range -65 to +150 °C TJmax Operating Junction Temperature -65 to +125 °C © 2001 Fairchild Semiconductor Corporation
MBR0520L Rev. 1.1.0 www.fairchildsemi.com MBR0520L — Schottky Rectifier October 2014
Schottky Rectifier
Features
• 0.5 A, Low Forward Voltage less than 385 mV
• 400 mW Power Dissipation Package
• Compact Surface Mount Package with The Same Footprint as Mini-melf SOD-123
* Band marking denotes cathode Ordering Information
Part Number Top Mark Package Packing Method MBR0520L B2 SOD-123 2L Tape and Reel Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at TA = 25°C unless otherwise noted. Symbol Value Unit VRRM Maximum Repetitive Reverse Voltage Parameter 20 V IF(AV) Average Rectified Forward Current 500 mA IFSM Non Repetitive Peak Forward Current
(Surge Applied at Rated Load Conditions Half-Wave, SinglePhase, 60 Hz) 5.5 A TSTG Storage Temperature Range -65 to +150 °C TJmax Operating Junction Temperature -65 to +125 °C © 2001 Fairchild Semiconductor Corporation
MBR0520L Rev. 1.1.0 www.fairchildsemi.com MBR0520L — Schottky Rectifier October 2014
