IRLR024, IRLU024, SiHLR024, SiHLU024. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output Characteristics, TC = 25 °C
Línea de modelo para esta hoja de datos
Versión de texto del documento
IRLR024, IRLU024, SiHLR024, SiHLU024
www.vishay.com Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)

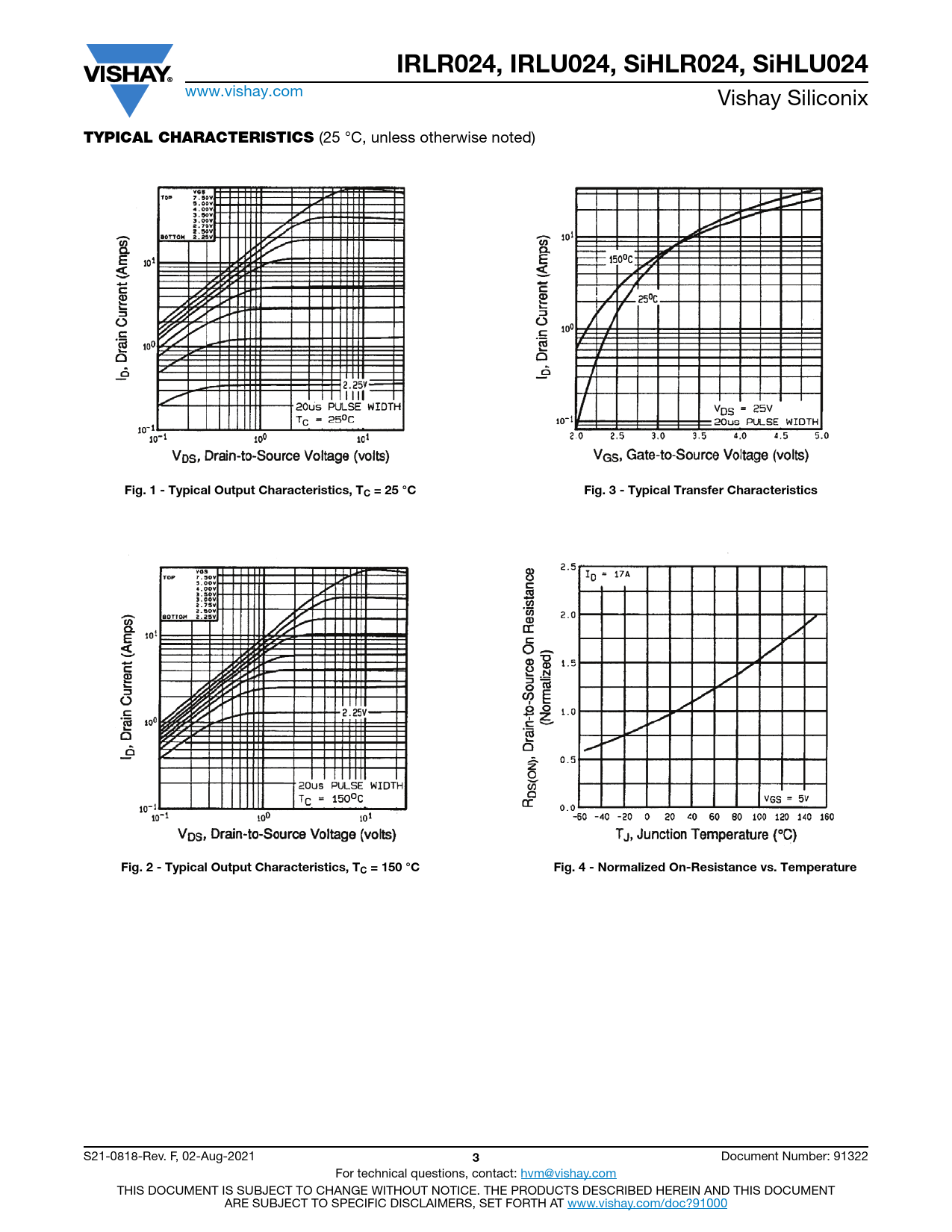

Fig. 1 - Typical Output Characteristics, TC = 25 °C Fig. 3 - Typical Transfer Characteristics Fig. 2 - Typical Output Characteristics, TC = 150 °C Fig. 4 - Normalized On-Resistance vs. Temperature
S21-0818-Rev. F, 02-Aug-2021
3
