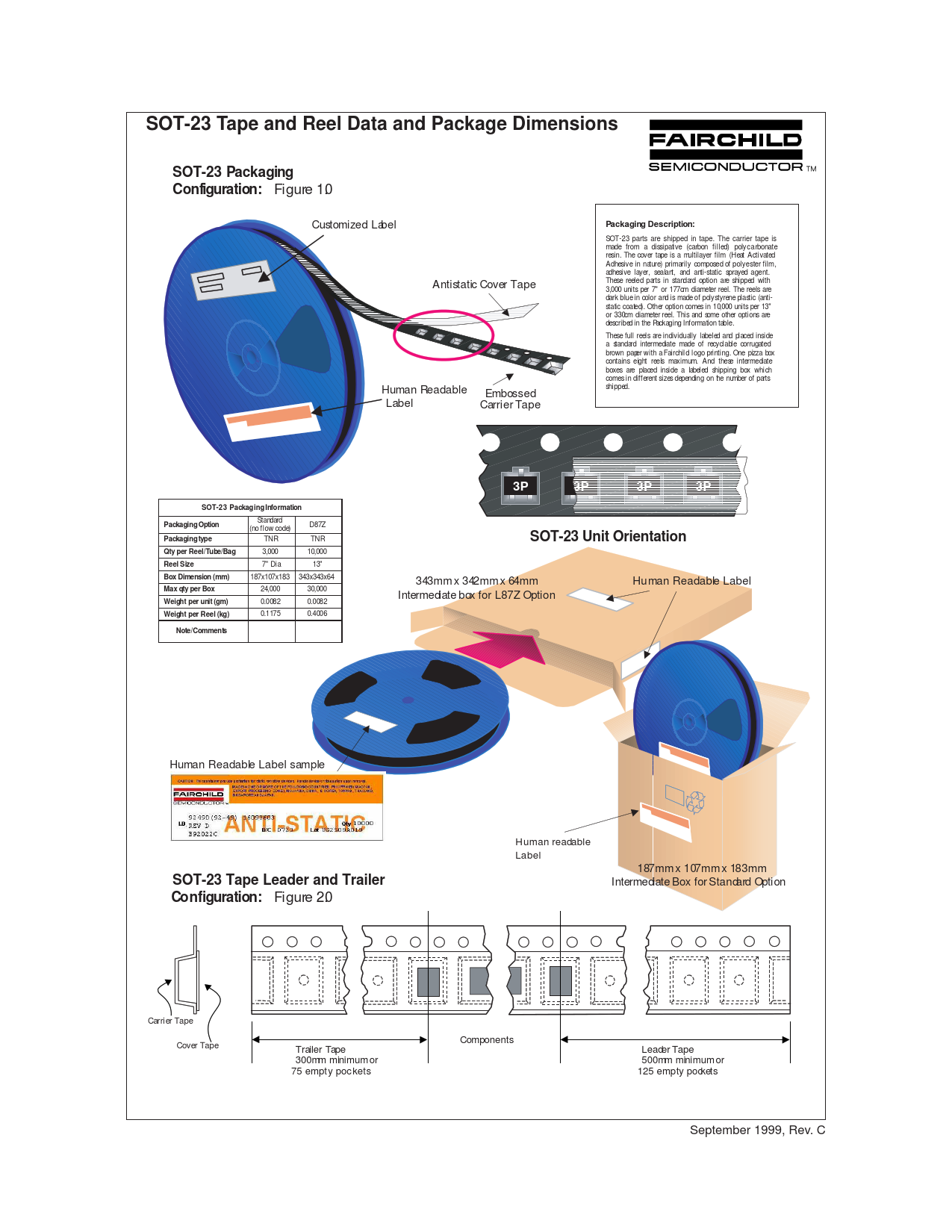

SOT-23 Tape and Reel Data and Package Dimensions SOT-23 Packaging Configuration:
Figure 1.0 Customized Label
Packaging Description:
SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. Antistatic Cover Tape These reeled parts in standard option are shipped with 3,000 units per 7" or 177cm diameter reel. The reels are dark blue in color and is made of polystyrene plastic (anti- static coated). Other option comes in 10,000 units per 13" or 330cm diameter reel. This and some other options are described in the Packaging Information table. These full reels are individually labeled and placed inside a standard intermediate made of recyclable corrugated brown paper with a Fairchil d logo printing. One pizza box contains eight reels maximum. And these intermediate boxes are placed inside a labeled shipping box which comes in different sizes depending on the number of parts Human Readable shipped. Embossed Label Carrier Tape
3P 3P 3P 3P SOT-23 Packaging Information
Standard
Packaging Option
D87Z (no flow code)
Packaging type
TNR TNR
SOT-23 Unit Orientation Qty per Reel/Tube/Bag
3,000 10,000
Reel Size
7" Dia 13"
Box Dimension (mm)
187x107x183 343x343x64 343mm x 342mm x 64mm Human Readable Label
Max qty per Box
24,000 30,000 Intermediate box for L87Z Option
Weight per unit (gm)
0.0082 0.0082
Weight per Reel (kg)
0.1175 0.4006
Note/Comments
Human Readable Label sample H uman readable Label 187mm x 107mm x 183mm
SOT-23 Tape Leader and Trailer
Intermediate Box for Standard Option
Configuration:
Figure 2.0 Carrier Tape Components Cover Tape Trailer Tape Leader Tape 300mm minimum or 500mm minimum or 75 empt y poc kets 125 empty pockets September 1999, Rev. C Document Outline Main Menu Power PSG MOSFET PSG Search fairchildsemi.com
