Datasheet 6N135, 6N136 (Vishay) - 6
| Fabricante | Vishay |
| Descripción | High Speed Optocoupler, 1 MBd, Photodiode with Transistor Output |
| Páginas / Página | 10 / 6 — 6N135, 6N136. PACKAGE DIMENSIONS. DIP-8, Standard |
| Formato / tamaño de archivo | PDF / 222 Kb |
| Idioma del documento | Inglés |

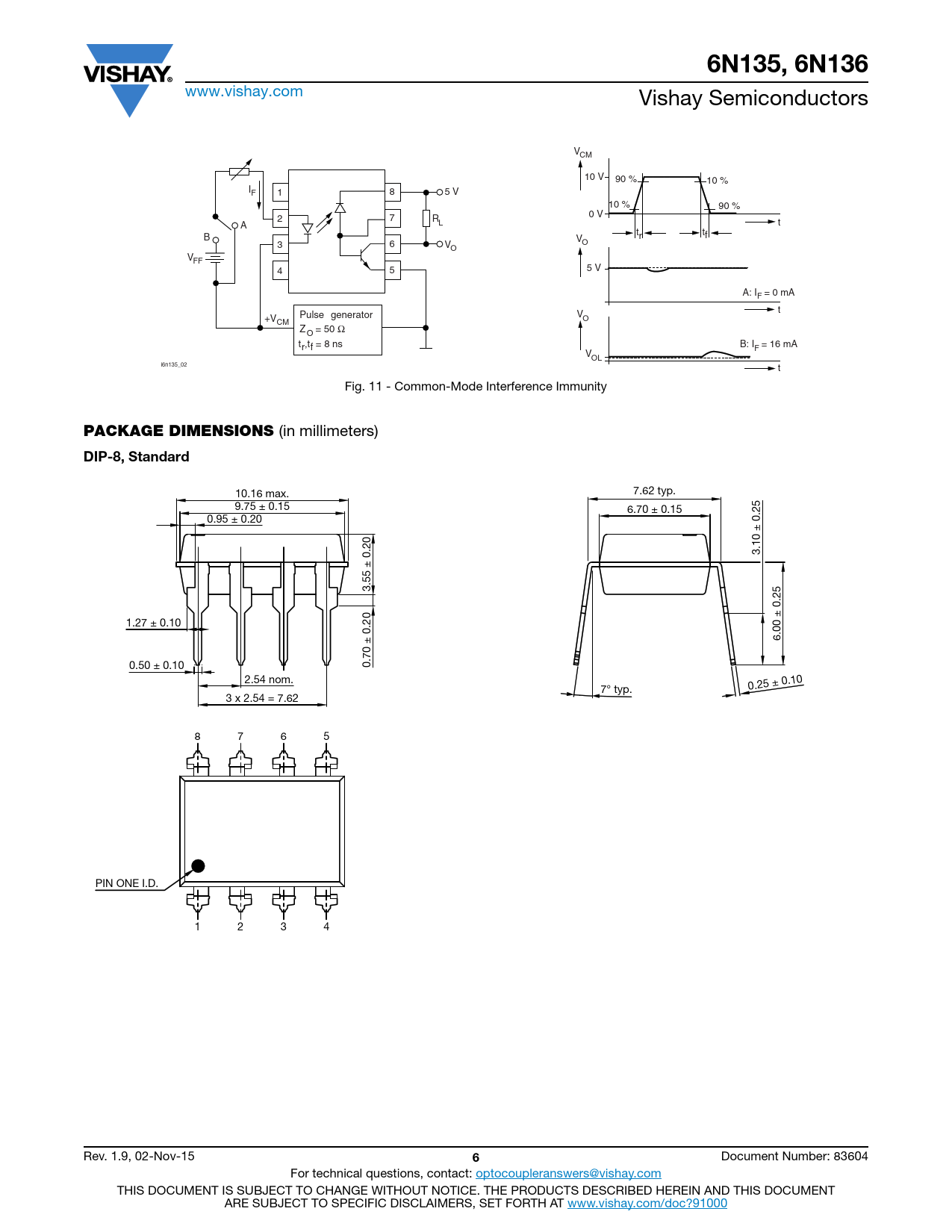

6N135, 6N136. PACKAGE DIMENSIONS. DIP-8, Standard
Línea de modelo para esta hoja de datos
Versión de texto del documento
6N135, 6N136
www.vishay.com Vishay Semiconductors VCM 10 V 90 % 10 % IF 1 8 5 V 10 % 90 % 0 V 2 7 RL t A t B V r tf O 3 6 VO VFF 5 V 4 5 A: IF = 0 mA t Pulse generator V +V O CM Z O = 50 Ω t B: I r,tf = 8 ns F = 16 mA VOL i6n135_02 t Fig. 11 - Common-Mode Interference Immunity
PACKAGE DIMENSIONS
(in millimeters)
DIP-8, Standard
10.16 max. 7.62 typ. 9.75 ± 0.15 6.70 ± 0.15 0.95 ± 0.20 3.10 ± 0.25 3.55 ± 0.20 1.27 ± 0.10 6.00 ± 0.25 0.50 ± 0.10 0.70 ± 0.20 2.54 nom. 7° typ. 0.25 ± 0.10 3 x 2.54 = 7.62 8 7 6 5 PIN ONE I.D. 1 2 3 4 Rev. 1.9, 02-Nov-15
6
Document Number: 83604 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
