Datasheet 6N135, 6N136 (Vishay) - 3
| Fabricante | Vishay |
| Descripción | High Speed Optocoupler, 1 MBd, Photodiode with Transistor Output |
| Páginas / Página | 10 / 3 — 6N135, 6N136. CURRENT TRANSFER RATIO. PARAMETER. TEST CONDITION. PART. … |
| Formato / tamaño de archivo | PDF / 222 Kb |
| Idioma del documento | Inglés |
6N135, 6N136. CURRENT TRANSFER RATIO. PARAMETER. TEST CONDITION. PART. SYMBOL. MIN. TYP. MAX. UNIT. SWITCHING CHARACTERISTICS
Línea de modelo para esta hoja de datos
Versión de texto del documento

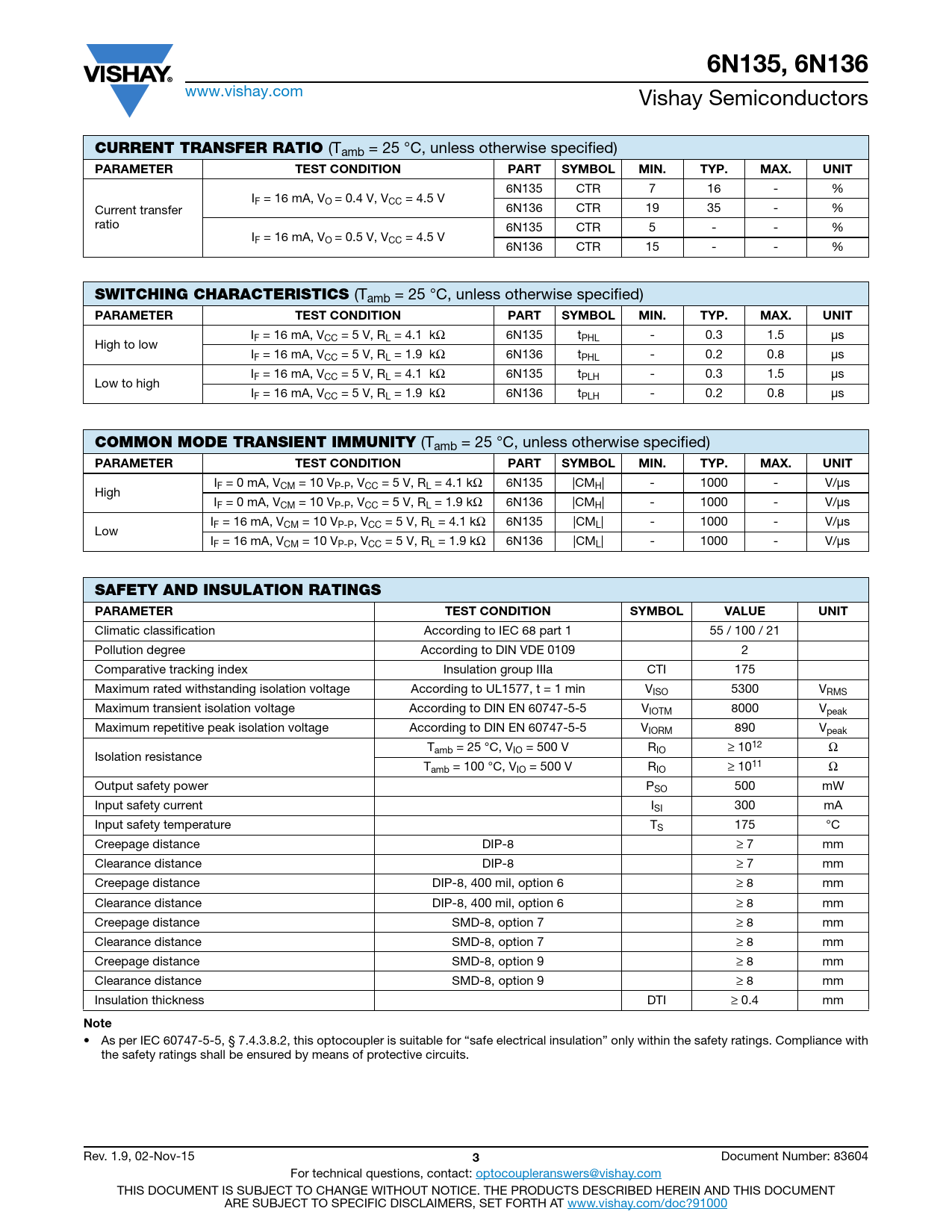

6N135, 6N136
www.vishay.com Vishay Semiconductors
CURRENT TRANSFER RATIO
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
6N135 CTR 7 16 - % IF = 16 mA, VO = 0.4 V, VCC = 4.5 V Current transfer 6N136 CTR 19 35 - % ratio 6N135 CTR 5 - - % IF = 16 mA, VO = 0.5 V, VCC = 4.5 V 6N136 CTR 15 - - %
SWITCHING CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
IF = 16 mA, VCC = 5 V, RL = 4.1 kΩ 6N135 tPHL - 0.3 1.5 μs High to low IF = 16 mA, VCC = 5 V, RL = 1.9 kΩ 6N136 tPHL - 0.2 0.8 μs IF = 16 mA, VCC = 5 V, RL = 4.1 kΩ 6N135 tPLH - 0.3 1.5 μs Low to high IF = 16 mA, VCC = 5 V, RL = 1.9 kΩ 6N136 tPLH - 0.2 0.8 μs
COMMON MODE TRANSIENT IMMUNITY
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
IF = 0 mA, VCM = 10 VP-P, VCC = 5 V, RL = 4.1 kΩ 6N135 |CMH| - 1000 - V/μs High IF = 0 mA, VCM = 10 VP-P, VCC = 5 V, RL = 1.9 kΩ 6N136 |CMH| - 1000 - V/μs IF = 16 mA, VCM = 10 VP-P, VCC = 5 V, RL = 4.1 kΩ 6N135 |CML| - 1000 - V/μs Low IF = 16 mA, VCM = 10 VP-P, VCC = 5 V, RL = 1.9 kΩ 6N136 |CML| - 1000 - V/μs
SAFETY AND INSULATION RATINGS PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Climatic classification According to IEC 68 part 1 55 / 100 / 21 Pollution degree According to DIN VDE 0109 2 Comparative tracking index Insulation group IIIa CTI 175 Maximum rated withstanding isolation voltage According to UL1577, t = 1 min VISO 5300 VRMS Maximum transient isolation voltage According to DIN EN 60747-5-5 VIOTM 8000 Vpeak Maximum repetitive peak isolation voltage According to DIN EN 60747-5-5 VIORM 890 Vpeak Tamb = 25 °C, VIO = 500 V RIO ≥ 1012 Ω Isolation resistance Tamb = 100 °C, VIO = 500 V RIO ≥ 1011 Ω Output safety power PSO 500 mW Input safety current ISI 300 mA Input safety temperature TS 175 °C Creepage distance DIP-8 ≥ 7 mm Clearance distance DIP-8 ≥ 7 mm Creepage distance DIP-8, 400 mil, option 6 ≥ 8 mm Clearance distance DIP-8, 400 mil, option 6 ≥ 8 mm Creepage distance SMD-8, option 7 ≥ 8 mm Clearance distance SMD-8, option 7 ≥ 8 mm Creepage distance SMD-8, option 9 ≥ 8 mm Clearance distance SMD-8, option 9 ≥ 8 mm Insulation thickness DTI ≥ 0.4 mm
Note
• As per IEC 60747-5-5, § 7.4.3.8.2, this optocoupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance with the safety ratings shall be ensured by means of protective circuits. Rev. 1.9, 02-Nov-15
3
Document Number: 83604 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
CURRENT TRANSFER RATIO
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
6N135 CTR 7 16 - % IF = 16 mA, VO = 0.4 V, VCC = 4.5 V Current transfer 6N136 CTR 19 35 - % ratio 6N135 CTR 5 - - % IF = 16 mA, VO = 0.5 V, VCC = 4.5 V 6N136 CTR 15 - - %
SWITCHING CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
IF = 16 mA, VCC = 5 V, RL = 4.1 kΩ 6N135 tPHL - 0.3 1.5 μs High to low IF = 16 mA, VCC = 5 V, RL = 1.9 kΩ 6N136 tPHL - 0.2 0.8 μs IF = 16 mA, VCC = 5 V, RL = 4.1 kΩ 6N135 tPLH - 0.3 1.5 μs Low to high IF = 16 mA, VCC = 5 V, RL = 1.9 kΩ 6N136 tPLH - 0.2 0.8 μs
COMMON MODE TRANSIENT IMMUNITY
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
IF = 0 mA, VCM = 10 VP-P, VCC = 5 V, RL = 4.1 kΩ 6N135 |CMH| - 1000 - V/μs High IF = 0 mA, VCM = 10 VP-P, VCC = 5 V, RL = 1.9 kΩ 6N136 |CMH| - 1000 - V/μs IF = 16 mA, VCM = 10 VP-P, VCC = 5 V, RL = 4.1 kΩ 6N135 |CML| - 1000 - V/μs Low IF = 16 mA, VCM = 10 VP-P, VCC = 5 V, RL = 1.9 kΩ 6N136 |CML| - 1000 - V/μs
SAFETY AND INSULATION RATINGS PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Climatic classification According to IEC 68 part 1 55 / 100 / 21 Pollution degree According to DIN VDE 0109 2 Comparative tracking index Insulation group IIIa CTI 175 Maximum rated withstanding isolation voltage According to UL1577, t = 1 min VISO 5300 VRMS Maximum transient isolation voltage According to DIN EN 60747-5-5 VIOTM 8000 Vpeak Maximum repetitive peak isolation voltage According to DIN EN 60747-5-5 VIORM 890 Vpeak Tamb = 25 °C, VIO = 500 V RIO ≥ 1012 Ω Isolation resistance Tamb = 100 °C, VIO = 500 V RIO ≥ 1011 Ω Output safety power PSO 500 mW Input safety current ISI 300 mA Input safety temperature TS 175 °C Creepage distance DIP-8 ≥ 7 mm Clearance distance DIP-8 ≥ 7 mm Creepage distance DIP-8, 400 mil, option 6 ≥ 8 mm Clearance distance DIP-8, 400 mil, option 6 ≥ 8 mm Creepage distance SMD-8, option 7 ≥ 8 mm Clearance distance SMD-8, option 7 ≥ 8 mm Creepage distance SMD-8, option 9 ≥ 8 mm Clearance distance SMD-8, option 9 ≥ 8 mm Insulation thickness DTI ≥ 0.4 mm
Note
• As per IEC 60747-5-5, § 7.4.3.8.2, this optocoupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance with the safety ratings shall be ensured by means of protective circuits. Rev. 1.9, 02-Nov-15
3
Document Number: 83604 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
