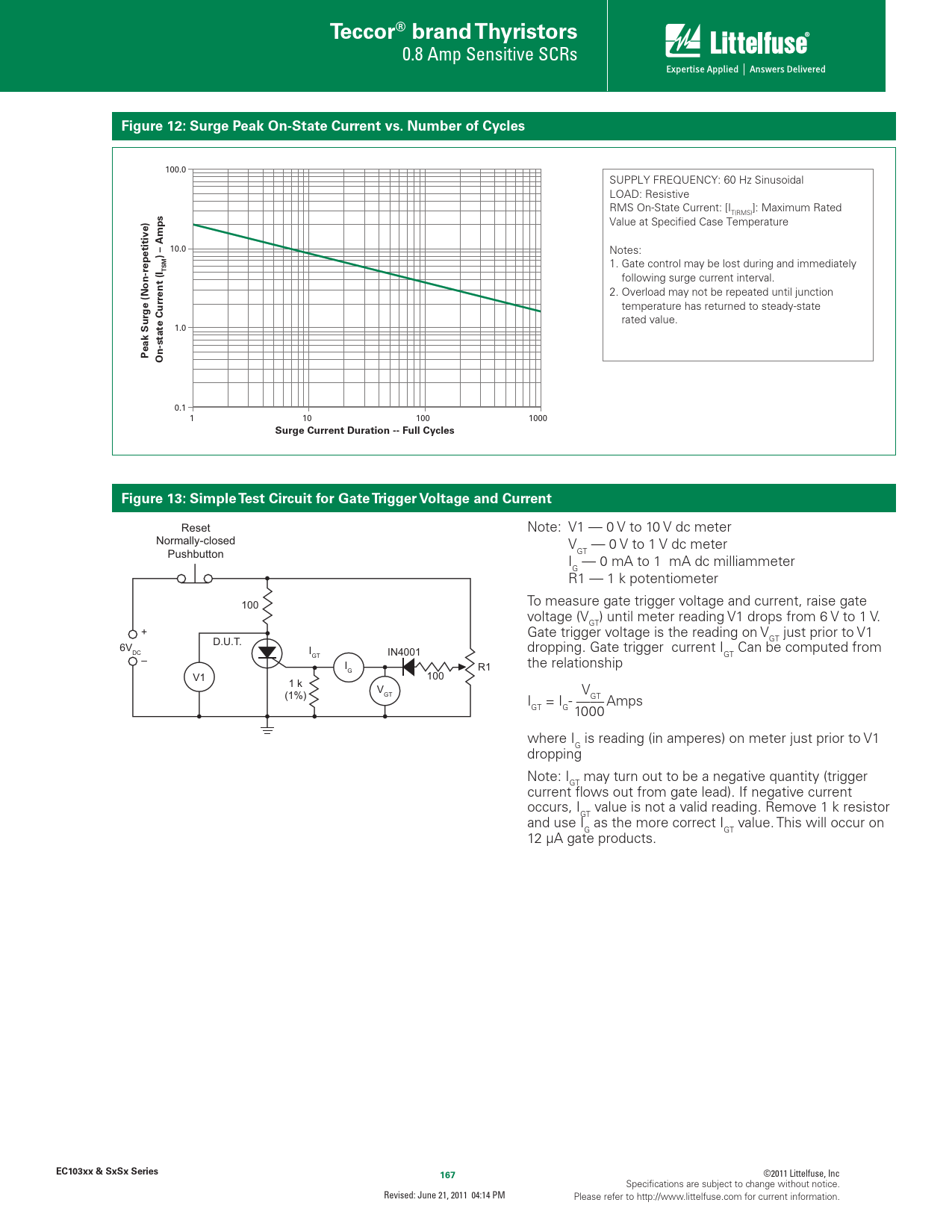

Teccor® brand Thyristors
0.8 Amp Sensitive SCRs
Figure 12: Surge Peak On-State Current vs. Number of Cycles
100.0 SUPPLY FREQUENCY: 60 Hz Sinusoidal LOAD: Resistive RMS On-State Current: [I ]: Maximum Rated T(RMS) Value at Specified Case Temperature 10.0
) – Amps
Notes: 1. Gate control may be lost during and immediately
TSM
following surge current interval. 2. Overload may not be repeated until junction temperature has returned to steady-state rated value. 1.0
Peak Surge (Non-repetitive) On-state Current (I
0.1 1 10 100 1000
Surge Current Duration -- Full Cycles Figure 13: Simple Test Circuit for Gate Trigger Voltage and Current
Reset Note: V1 — 0 V to 10 V dc meter Normally-closed V — 0 V to 1 V dc meter GT Pushbutton I — 0 mA to 1 mA dc milliammeter G R1 — 1 k potentiometer To measure gate trigger voltage and current, raise gate 100 voltage (V ) until meter reading V1 drops from 6 V to 1 V. GT + Gate trigger voltage is the reading on V just prior to V1 GT 6V D.U.T. DC I dropping. Gate trigger current I Can be computed from GT IN4001 GT – IG R1 the relationship V1 100 1 k VGT V (1%) GT I = I - ____ Amps GT G 1000 where I is reading (in amperes) on meter just prior to V1 G dropping Note: I may turn out to be a negative quantity (trigger GT current flows out from gate lead). If negative current occurs, I value is not a valid reading. Remove 1 k resistor GT and use I as the more correct I value. This will occur on G GT 12 µA gate products.
