Datasheet WB (Coilcraft)
| Fabricante | Coilcraft |
| Descripción | Wideband RF Transformers |
| Páginas / Página | 2 / 1 — Wideband RF Transformers. Core material. Terminations. Weight. Ambient … |
| Formato / tamaño de archivo | PDF / 245 Kb |
| Idioma del documento | Inglés |
Wideband RF Transformers. Core material. Terminations. Weight. Ambient temperature. Storage temperature
Línea de modelo para esta hoja de datos
- WB1010-1-PCL WB1010-1-SMLB WB1010-1-SMLD WB1010-PCL WB1010-SMLB WB1010-SMLD WB1015-PCL WB1015-SMLB WB1015-SMLD WB1040-PCL WB1040-SMLB WB1040-SMLD WB2010-1-PCL WB2010-1-SMLB WB2010-1-SMLD WB2010-PCL WB2010-SMLB WB2010-SMLD WB2040-PCL WB2040-SMLB WB2040-SMLD WB3010-1-PCL WB3010-1-SMLB WB3010-1-SMLD WB3010-PCL WB3010-SMLB WB3010-SMLD WB3015-PCL WB3015-SMLB WB3015-SMLD WB3040-PCL WB3040-SMLB WB3040-SMLD
Versión de texto del documento

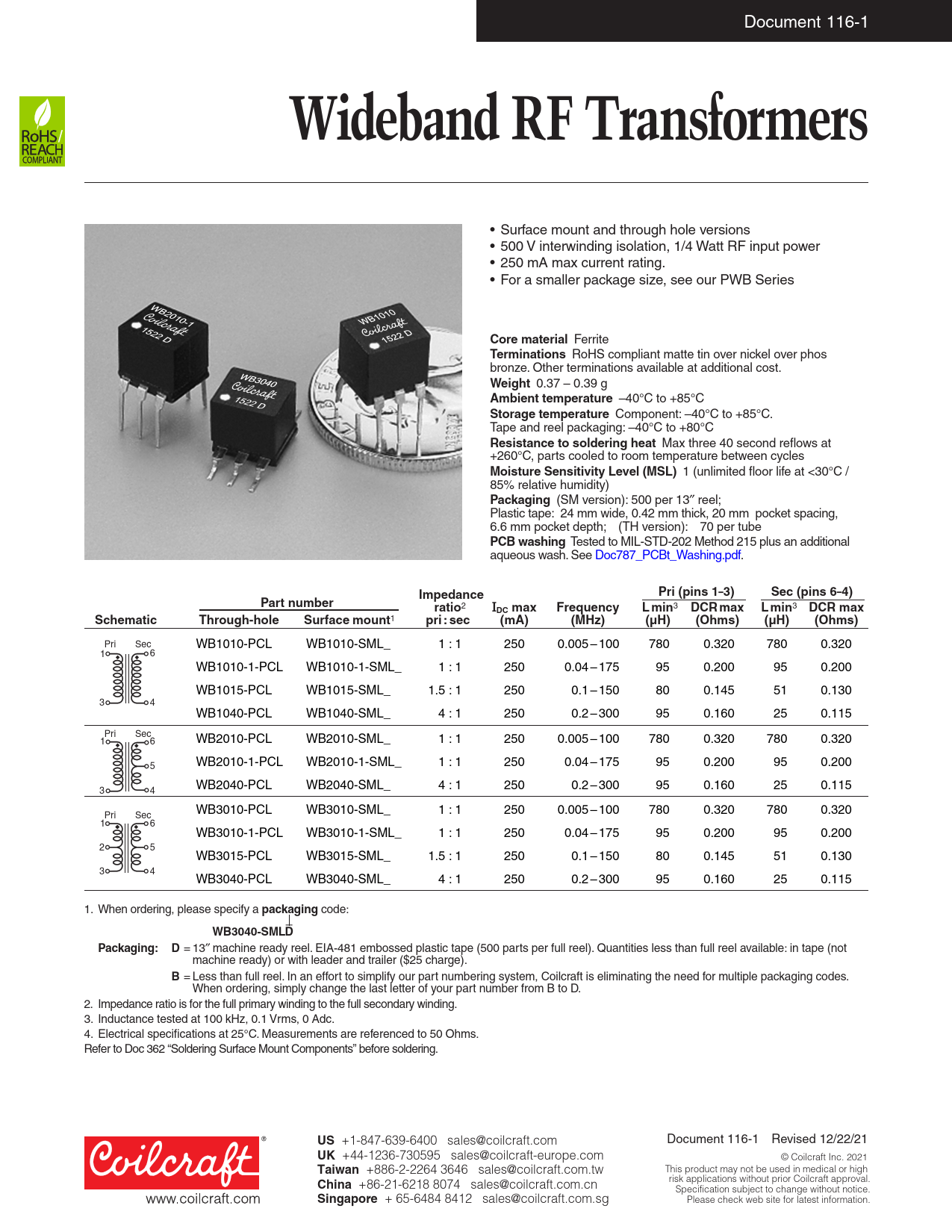

Document 116-1
Wideband RF Transformers
AEC • Surface mount and through hole versions Q200 85 + °C • 500 V interwinding isolation, 1/4 Watt RF input power • 250 mA max current rating. • For a smaller package size, see our PWB Series
Core material
Ferrite
Terminations
RoHS compliant matte tin over nickel over phos bronze. Other terminations available at additional cost.
Weight
0.37 – 0.39 g
Ambient temperature
–40°C to +85°C
Storage temperature
Component: –40°C to +85°C. Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C / 85% relative humidity)
Packaging
(SM version): 500 per 13″ reel; Plastic tape: 24 mm wide, 0.42 mm thick, 20 mm pocket spacing, 6.6 mm pocket depth; (TH version): 70 per tube
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCBt_Washing.pdf.
Impedance Pri (pins 1–3) Sec (pins 6–4) Part number ratio
2
IDC max Frequency L min
3
DCR max L min
3
DCR max Schematic Through-hole Surface mount
1
pri : sec (mA) (MHz) (µH) (Ohms) (µH) (Ohms)
Pri Sec 1Pri 6 Sec WB1010-PCL WB1010-SML_ 1 : 1 250 0.005 – 100 780 0.320 780 0.320 1 6 WB1010-1-PCL WB1010-1-SML_ 1 : 1 250 0.04 – 175 95 0.200 95 0.200 3 4 WB1015-PCL WB1015-SML_ 1.5 : 1 250 0.1 – 150 80 0.145 51 0.130 3 4 WB1040-PCL WB1040-SML_ 4 : 1 250 0.2 – 300 95 0.160 25 0.115 Pri Sec 1Pri 6 Sec 1 6 WB2010-PCL WB2010-SML_ 1 : 1 250 0.005 – 100 780 0.320 780 0.320 1 6 5 WB2010-1-PCL WB2010-1-SML_ 1 : 1 250 0.04 – 175 95 0.200 95 0.200 5 3 4 WB2040-PCL WB2040-SML_ 4 : 1 250 0.2 – 300 95 0.160 25 0.115 3 4 WB3010-PCL WB3010-SML_ 1 : 1 250 0.005 – 100 780 0.320 780 0.320 Pri Sec 1Pri 6 Sec 1 6 WB3010-1-PCL WB3010-1-SML_ 1 : 1 250 0.04 – 175 95 0.200 95 0.200 2 5 2 5 WB3015-PCL WB3015-SML_ 1.5 : 1 250 0.1 – 150 80 0.145 51 0.130 3 4 3 4 WB3040-PCL WB3040-SML_ 4 : 1 250 0.2 – 300 95 0.160 25 0.115 1. When ordering, please specify a
packaging
code:
WB3040-SMLD Packaging: D
= 13″ machine ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B
= Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D. 2. Impedance ratio is for the full primary winding to the full secondary winding. 3. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc. 4. Electrical specifications at 25°C. Measurements are referenced to 50 Ohms. Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com Document 116-1 Revised 12/22/21
UK
+44-1236-730595 sales@coilcraft-europe.com © Coilcraft Inc. 2021
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw This product may not be used in medical or high
China
+86-21-6218 8074 sales@coilcraft.com.cn risk applications without prior Coilcraft approval. Specification subject to change without notice.
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg Please check web site for latest information.
